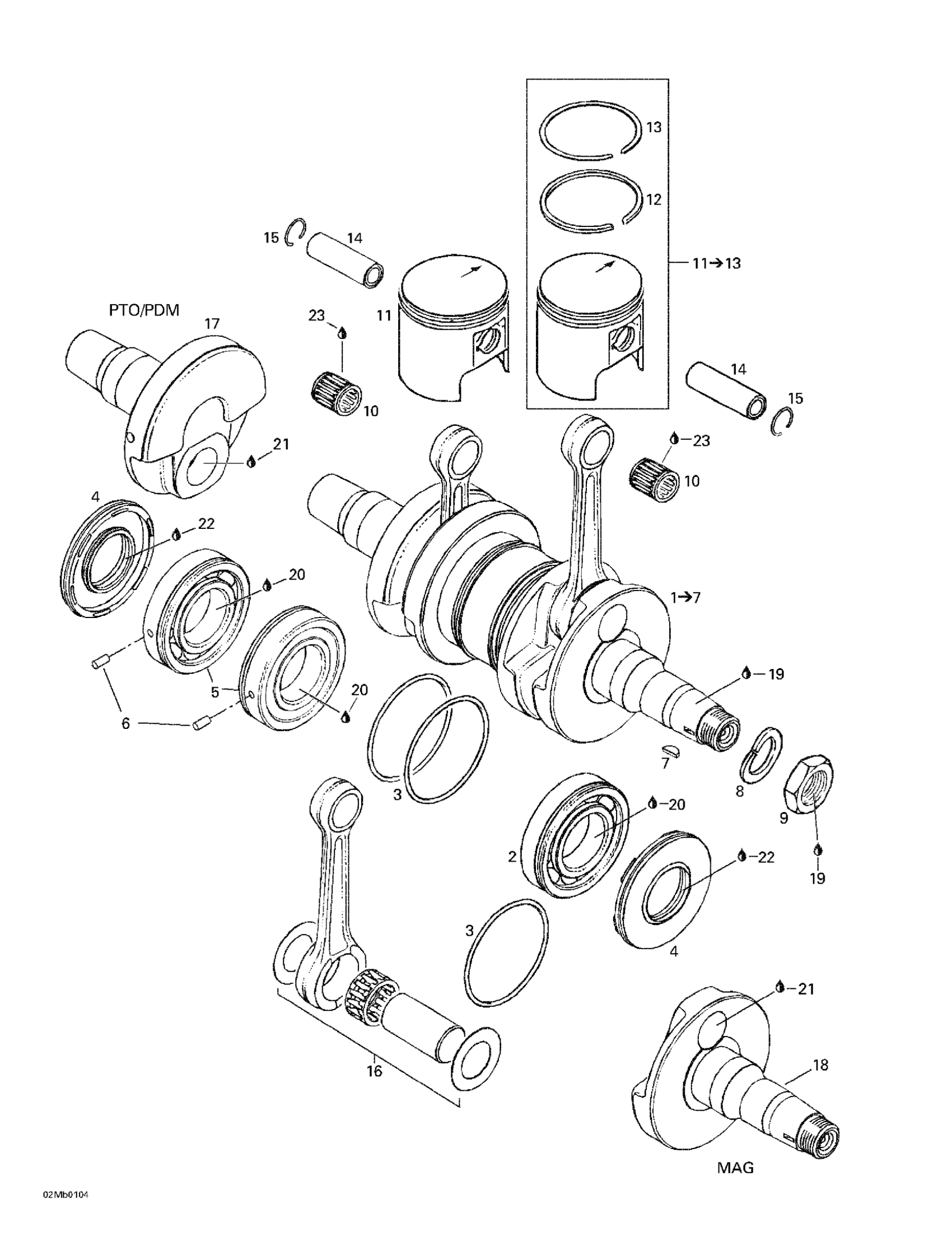

Ski-Doo Formula Deluxe 380 F, 2001 01- Crankshaft And Pistons Diagram

Crankshaft ass'y | Includes 1 - 7.

420887249

Unavailable

Bearing_Ball This part replaces 290832231.

420832584

$41.49

O-Ring, 64 mm X 2 mm

293300022

$12.72

Oil Seal This part replaces 290831952.

420831952

$18.01

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

Dowel Pin

420929972

Unavailable

Woodruff Key

420246055

$2.43

Lock Washer, 22 mm

420945759

$1.90

Hex. Nut, M22 X 1.5

420842239

$17.53

Needle Bearing

420932904

$15.89

PISTON ASS?Y 61.94 MM - Call your local BRP dealership | Inludes Items 11 to 13

420887475

Unavailable

Oversize Piston Ass’y 62.19 mm | Inludes Items 11 to 13

420887476

Unavailable

Oversize Piston Ass’y 62.44 mm | Inludes Items 11 to 13

420887477

Unavailable

RECTANGULAR RING, 62.0 MM - Call your local BRP dealership

420915895

Unavailable

Rectangular Ring, 62.25 mm

420915896

Unavailable

RECTANGULAR RING, 62.5 MM - Call your local BRP dealership

420915897

Unavailable

SEMI-TRAPEZ RING, 62.0 MM - Call your local BRP dealership

420215215

Unavailable

SEMI-TRAPEZ RING, 62.25 MM - Call your local BRP dealership

420215216

Unavailable

SEMI-TRAPEZ RING, 62.5 MM - Call your local BRP dealership

420215217

Unavailable

GUDGEON PIN - Call your local BRP dealership

420916260

Unavailable

Piston Circlip

420945735

$4.46

Rod repair kit

420996334

Unavailable

Crankshaft half PTO

420818203

Unavailable

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

Loctite 243, 10 ml

293800060

$21.49

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

Sealant Loctite 648

219703000

$45.99

Dow Corning 111, 150 g

413707000

$59.99

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
