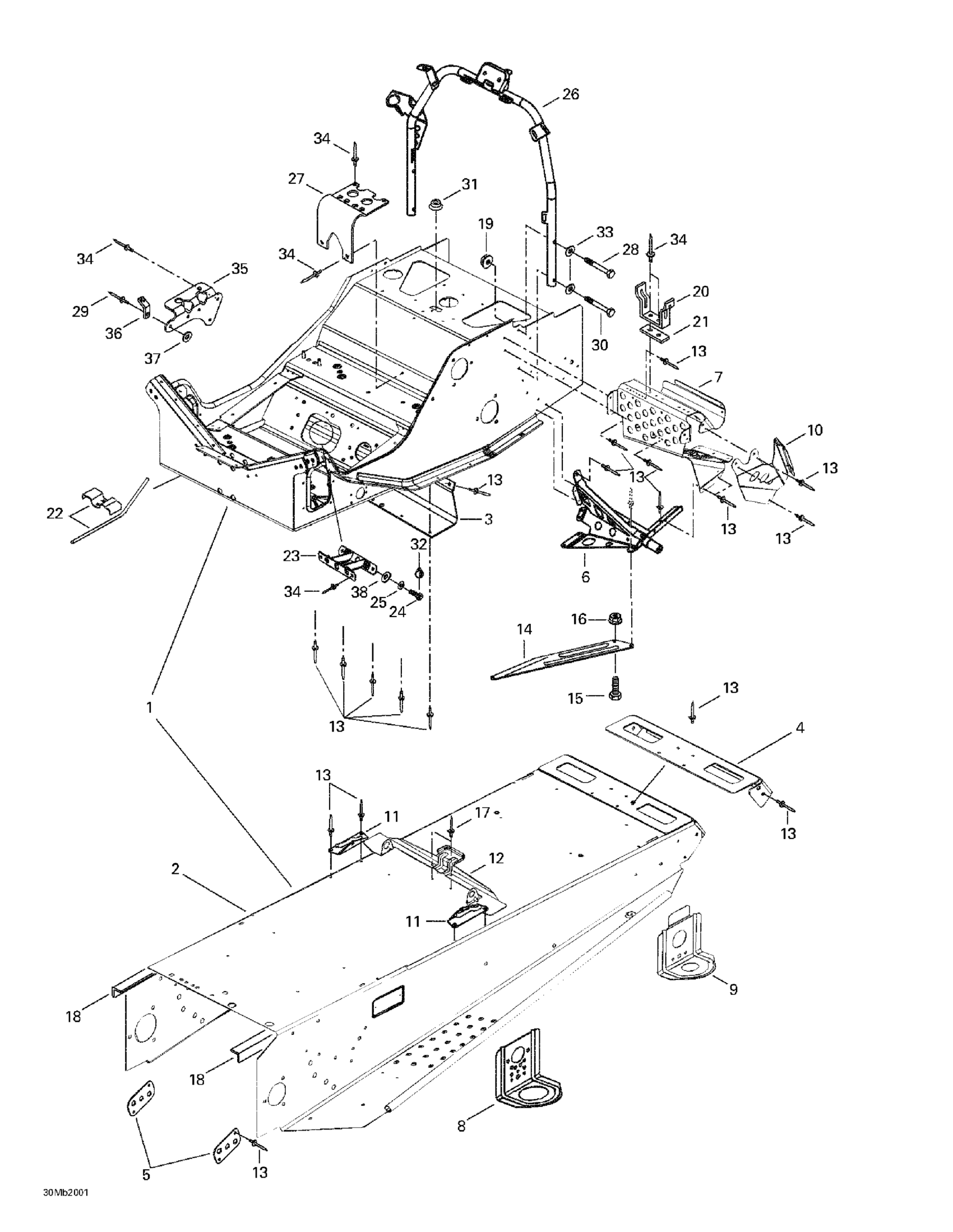

Ski-Doo Formula Deluxe 380/500, 2000 Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 18.

518322085

Unavailable

2

Tunnel

518322113

Unavailable

3

Deflector

518321867

Unavailable

4

Cap-End

518321301

Unavailable

5

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

6

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Footrest Support

518320506

Unavailable

7

RH Front Footrest

518318933

Unavailable

LH Front Footrest

518318934

Unavailable

8

Front Bracket

518321495

Unavailable

9

Rear Bracket

518308704

Unavailable

10

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

11

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

12

Seat Bracket

518317506

Unavailable

13

Pop Rivet 3/16"

390402200

$0.35

14

RH Reinforcement Plate

518321958

Unavailable

LH Reinforcement. Plate

518321959

Unavailable

15

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Pop Rivet 3/16"

390402400

$0.35

18

LH Tunnel Reinforcement

518316713

Unavailable

RH Tunnel Reinforcement

518316714

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Belt Guard Bracket

518202100

$17.49

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Guide Rope

517276100

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Handle Steering Support

518321428

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Hex. Flange Screw M6 X 35

207063544

$1.37

29

Pop Rivet 3/16"

390402300

$0.75

30

Hex. Screw M6 X 40

207064044

$1.48

31

CAP - Call your local BRP dealership

414859400

Unavailable

32

Loctite 271, 10 ml

293800005

$26.99

33

Flat Washer 6 mm

234061410

$1.36

34

Pop Rivet 3/16"

390402200

$0.35

35

Muffler Support

518316704

Unavailable

36

Spring Bracket

514054522

$8.45

37

Flat Washer

517225900

$0.18

38

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable
