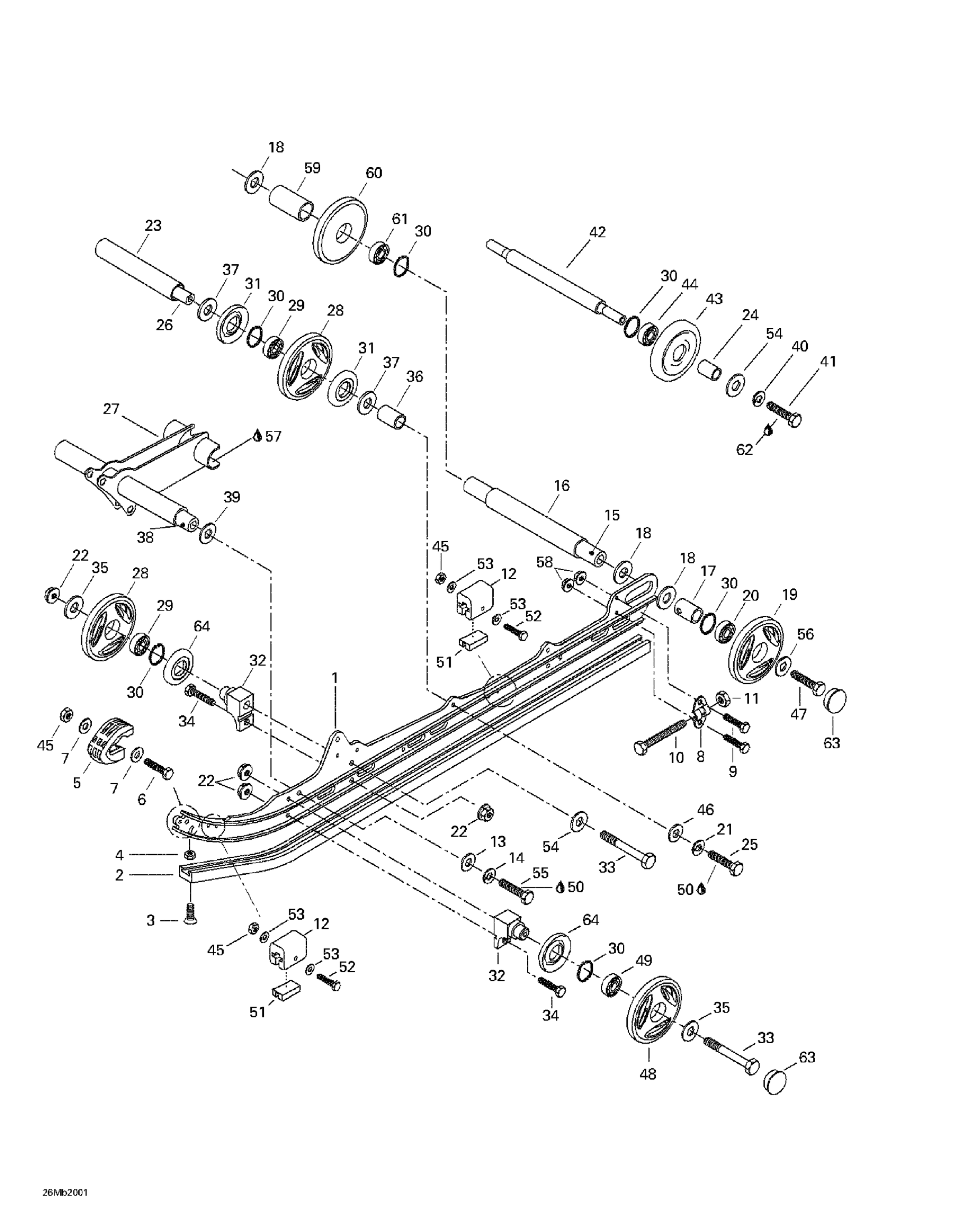

Ski-Doo Formula Deluxe 380/500, 2000 08- Rear Suspension Diagram

#

Description
Price

1

Runner

503188931

Unavailable

2

Runner Shoe

560103300

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Rubber Stopper

570063000

Unavailable

13

Flat Washer 12 mm

234021410

$0.72

14

Lock Washer 12 mm

234120602

Unavailable

15

Rear Axle

503167900

$139.99

16

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

17

Outer Spacer

503189809

$18.89

18

Washer

503180400

$3.49

19

Wheel 165 (Black) | Includes 19 - 20.

503189475

Unavailable

20

Ball Bearing

293350115

$12.11

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Spacer

503153100

Unavailable

24

Spacer

572048300

Unavailable

25

Hex. Screw M10 X 35

207103544

$1.58

26

WHEEL AXLE - Call your local BRP dealership

503188700

Unavailable

27

Welded Shock Support

503182100

Unavailable

28

Wheel 135

503191029

$33.99

29

Ball Bearing

293350115

$12.11

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Labyrinth Shaft

503189314

Unavailable

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

Hex. Screw M8 X 80

207088044

$1.68

34

Hex. Screw M8 X 25

207182544

$0.90

35

Washer

503183100

$3.17

36

SPACER - Call your local BRP dealership

503188800

Unavailable

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Lower Axle

503174800

Unavailable

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

$0.92

41

Hex. Screw M8 X 30

207183044

$1.15

42

Wheel Support Axle

503153600

Unavailable

43

Idler Wheel | Includes 48 - 49.

572043500

$33.99

44

Ball Bearing

405404600

$25.99

45

Elastic Stop Nut M5

232551414

$0.87

46

Flat Washer 10 mm

234001410

$1.26

47

Hex. Screw With Nylon

250000019

$1.69

48

WHEEL 135 (BLACK) - Call your local BRP dealership | Includes 28 - 29.

572097602

Unavailable

49

Ball Bearing

293350115

$12.11

50

Loctite 271, 10 ml

293800005

$26.99

51

Reinforcement Stopper

572084800

$12.99

52

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

53

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

54

Flat Washer 8 mm

234081410

$0.83

55

HEX. SCREW M12 X 35 - Call your local BRP dealership

207123544

Unavailable

56

Washer

503183300

$5.82

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

59

Inner Spacer

503182900

$12.58

60

Wheel 165" | Includes 670 to 670b

503194127

$51.99

61

Ball Bearing

293350115

$12.11

62

Loctite 243, 10 ml

293800060

$21.49

63

Wheel Cap

570063600

$3.49

64

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
