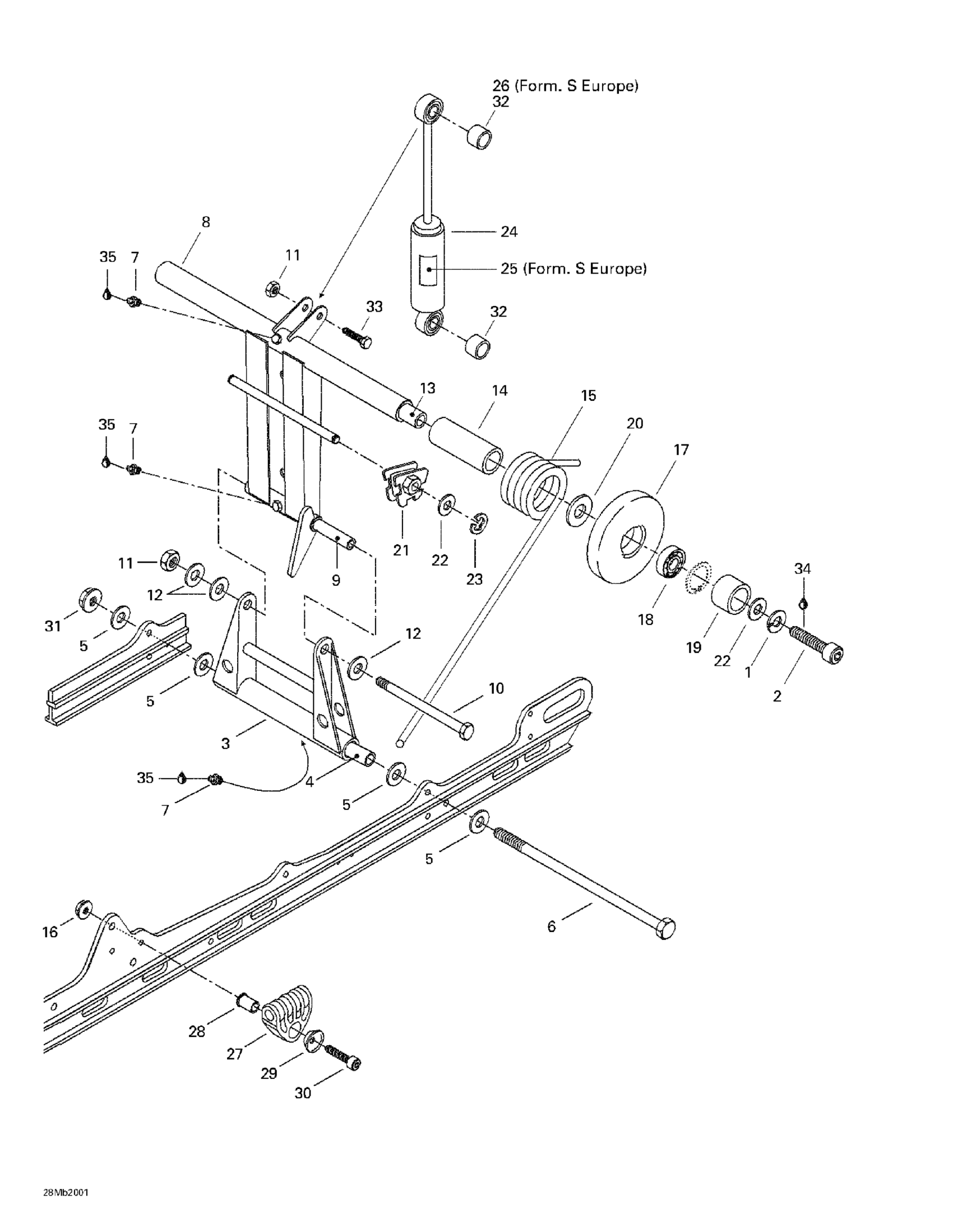

Ski-Doo Formula Deluxe 380/500, 2000 08- Rear Arm Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Socket Screw M10 X 35

205003544

$1.69

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$30.49

7

Grease Fitting

408200700

$3.49

8

Welded Rear Arm

503151200

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.65

10

Bolt M8, Short

732601197

$15.36

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Flat Washer 8 mm

234081410

$0.83

13

Transversal Rear Axle

503151400

Unavailable

14

Bushing

572047800

Unavailable

15

RH Spring

503189346

Unavailable

RH Spring

503189342

Unavailable

LH Spring

503189347

Unavailable

LH Spring

503189343

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.

572094300

Unavailable

18

Ball Bearing

405404600

$25.99

19

Spacer

503154200

Unavailable

20

Washer

503144900

$2.79

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

e Circlip

371907100

Unavailable

24

Shock

503188905

Unavailable

Shock

503188973

Unavailable

24

Rear HPG Shock Kit (Europe) | Includes 23 - 25. MX Z 380 F.

860305000

Unavailable

25

HPG Decal (Europe)

516000182

Unavailable

26

CUSHION - Call your local BRP dealership

414802600

Unavailable

27

Spring Support

503189657

$11.99

28

Spring Guide Axle

503188934

Unavailable

29

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

30

Socket Head Screw M8 X 45

205084544

$0.90

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Bushing

414936000

$13.99

33

Hex. Screw M8 X 40

207084044

$1.15

34

Loctite 243, 10 ml

293800060

$21.49

35

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
