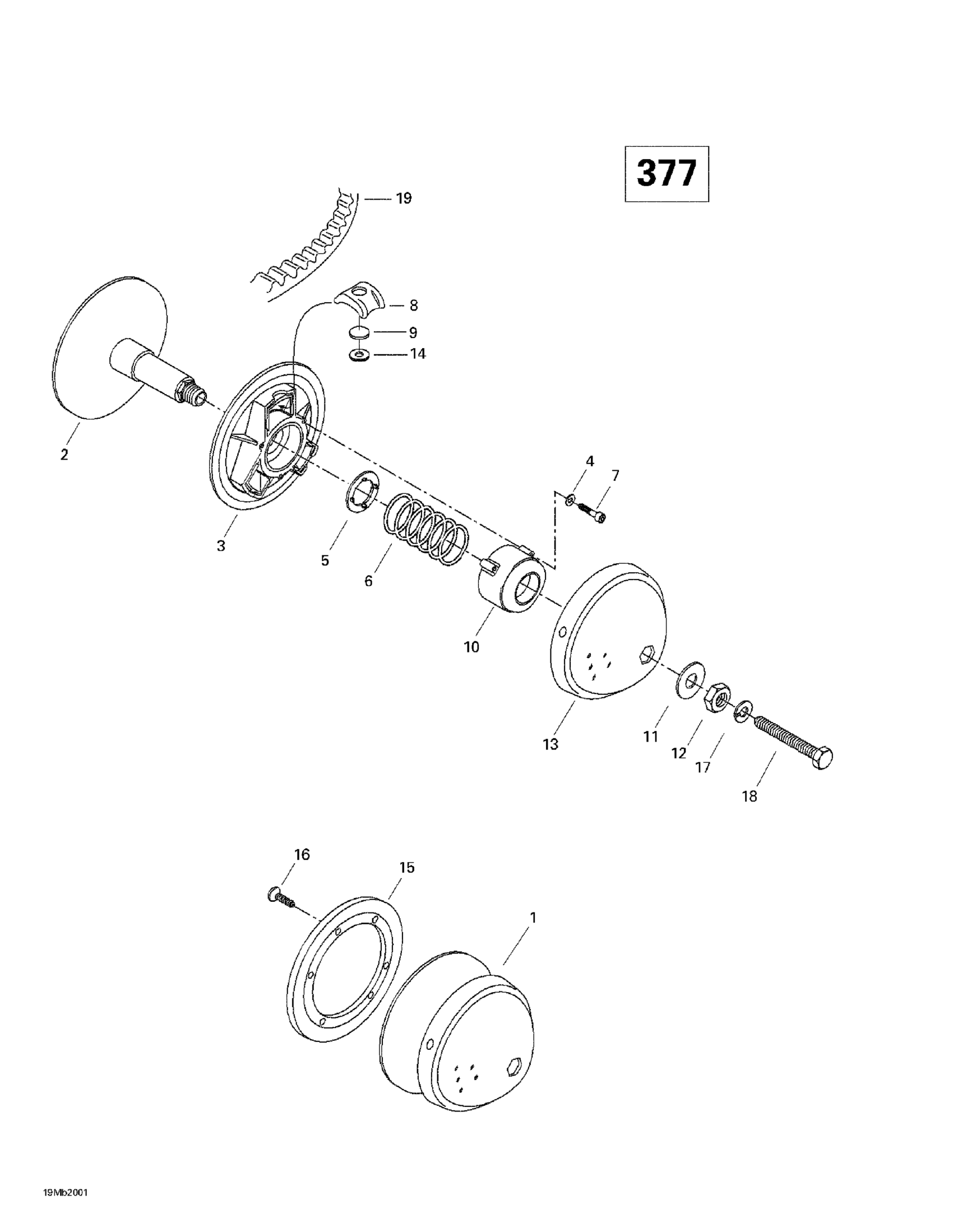

Ski-Doo Formula Deluxe 380/500, 2000 05- Drive Pulley (377) Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 14. Formula S.
417221000
Unavailable
1
Drive Pulley Ass'y | Includes 1 - 16. Formula DLX 380.
417221100
Unavailable
2
Inner Flange
417121200
Unavailable
3
Outer Sliding Flange | Formula S. Formula DLX 380.
417121300
Unavailable
4
WASHER - Call your local BRP dealership
420245370
Unavailable
5
Guide Washer | 380 F.
417116200
Unavailable
6
Spring (Red/Blue)
417118400
Unavailable
7
Socket Screw M6 X 40
205064086
Unavailable
8
CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA
417118100
Unavailable
9
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
10
Spring Cover
417121400
Unavailable
11
Washer
417122400
Unavailable
12
NUT - Call your local BRP dealership
417118300
Unavailable
13
Cap
417125100
Unavailable
14
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
15
Ring Gear (86 Theet) | Formula Deluxe 380 F.
414807500
Unavailable
16
SCREW-FORMING HEX.HD.GM6174M - Call your local BRP dealership | Formula Deluxe 380 F.
210361686
Unavailable
17
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
18
BOLT - Call your local BRP dealership
417113800
Unavailable
