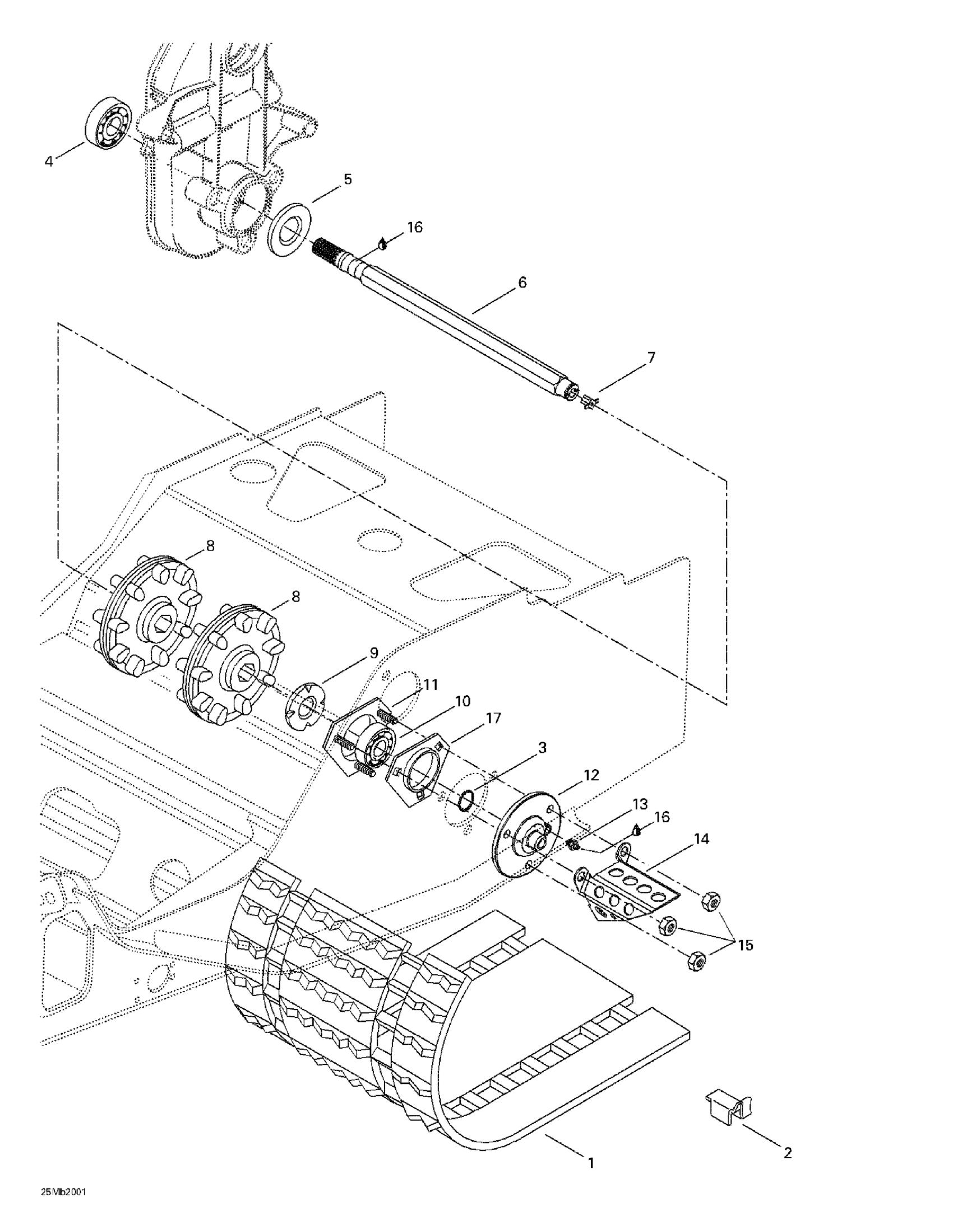

Ski-Doo Formula Deluxe 380/500, 2000 05- Drive Axle And Track Diagram

#

Description
Price

1

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

1

Track Ass'y(Europe) | Includes 1 - 2. Formula S.

570211600

Unavailable

2

Track Guide | Track Width 16''

415129528

$3.29

3

CIRCLIP - Call your local BRP dealership

371910200

$2.09

4

Ball Bearing

293350115

$12.11

5

Seal Oil Ass'y

504152076

$27.99

6

Drive Axle

504151714

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

Sprocket (9 Teeth)

414882600

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350060

$38.49

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

Grease Fitting

408200700

$3.49

14

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

FLANGE - Call your local BRP dealership

501025000

Unavailable
