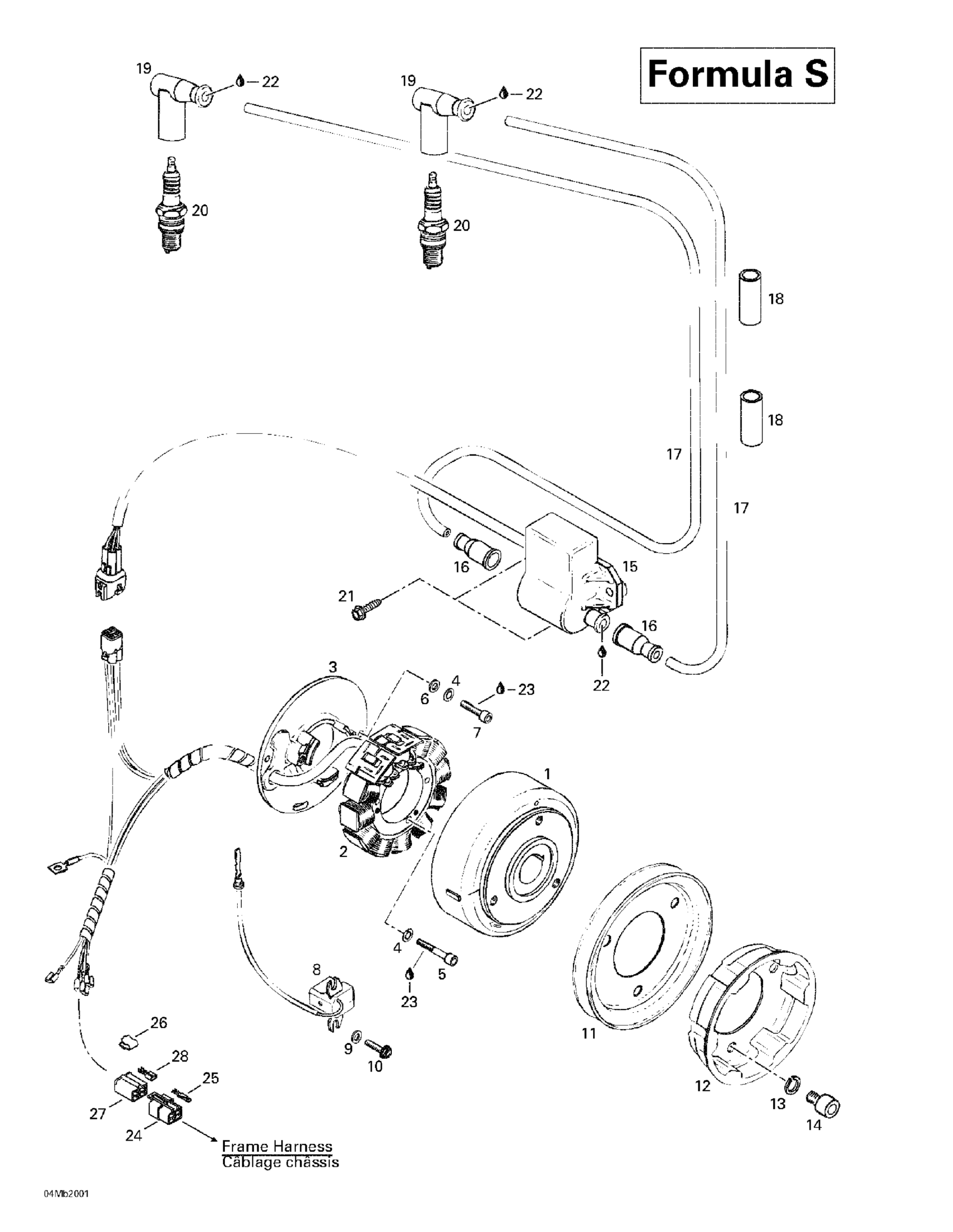

Ski-Doo Formula Deluxe 380/500, 2000 03- Magneto (formula S) Diagram
#
Description
Price
1
Magneto Ducati 12V240W | Includes 1 - 5. Formula S.
420886255
Unavailable
1
M.A.G. Flywheel | Skandic 500F. Skandic 500F (SWT).
420996820
Unavailable
2
STATOR PLATE ASS?Y. 12V240W - Call your local BRP dealership | Includes 2 - 5. Skandic 500F. Skandic 500F (SWT).
420886605
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Lock Washer
420945750
Unavailable
5
Socket Head Screw M5 X 30 | Skandic 500F. Skandic 500F (SWT).
420940880
Unavailable
7
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership
420840515
Unavailable
8
PICK-UP ASS?Y - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).
420965763
Unavailable
9
WASHER - Call your local BRP dealership
420827800
Unavailable
10
Taptite Screw M5 X 16
420941928
Unavailable
14
SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership
420841522
Unavailable
15
Ignition Module Ass'y | Includes 15 - 19. Formula S.
515172200
Unavailable
15
Ignition Module | Formula S.
415080400
Unavailable
16
Protection Cap | Skandic 500F. Skandic 500F (SWT).
410112600
Unavailable
17
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
18
Tubing | Formula S.
410112800
Unavailable
21
Screw-hex.taping 12
365901400
Unavailable
24
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
25
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
26
CLIP - Call your local BRP dealership | Europe Models
409205600
Unavailable
27
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
28
FEMALE TERMINAL - Call your local BRP dealership
515175253
Unavailable
