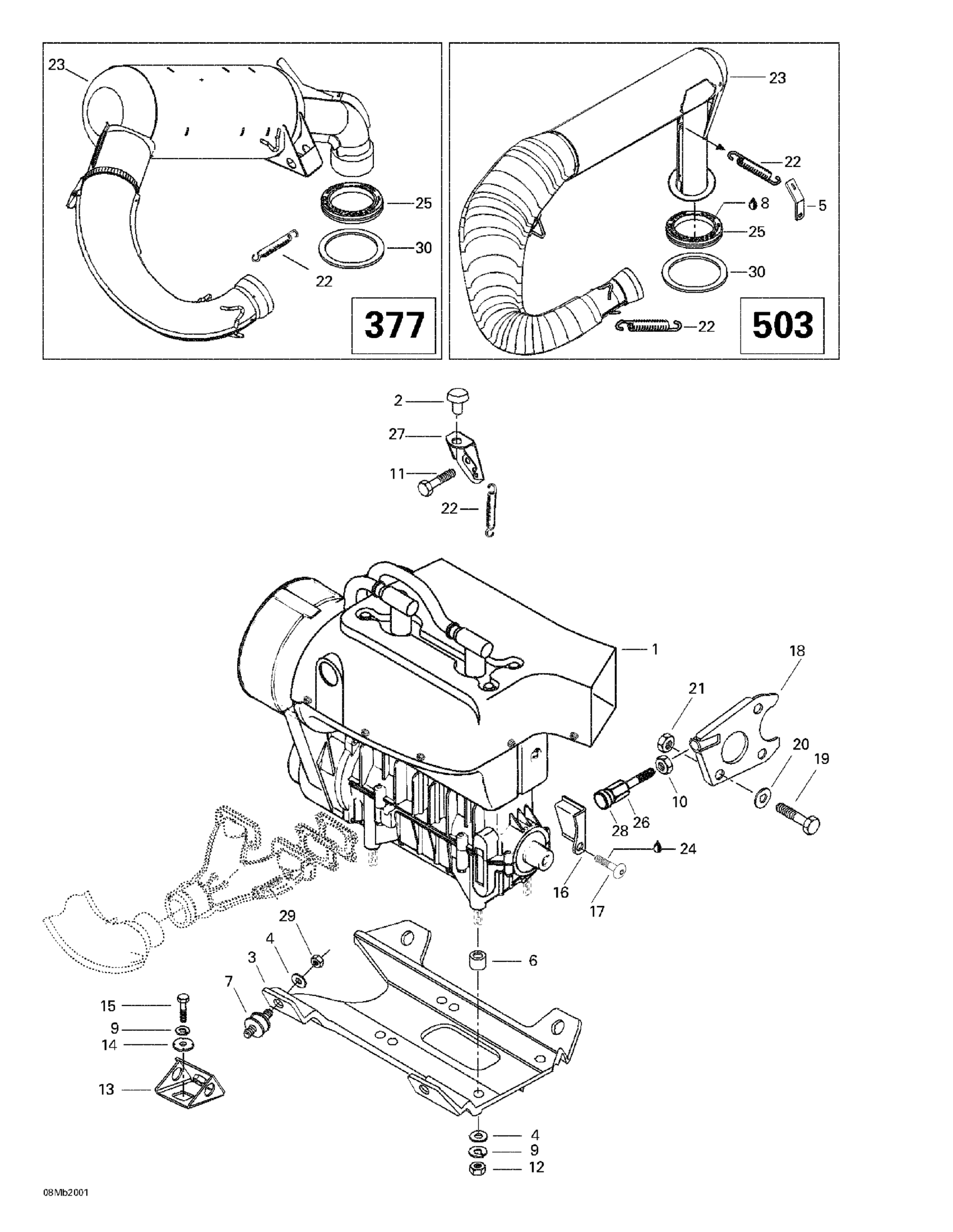

Ski-Doo Formula Deluxe 380/500, 2000 01- Engine Support And Muffler Diagram

#

Description
Price

1

<<377>> Engine | Formula S.

400308904

Unavailable

<<377>> Engine

400308905

Unavailable

<<503>> Engine | Formula DLX 500.

400509713

Unavailable

2

Rubber Bumper

514053654

$50.99

3

Engine Support

512059134

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

Spring Bracket

514054522

$8.45

6

Spacer

512057700

Unavailable

SPACER - Call your local BRP dealership

512051800

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Grease, Super Lube

293550030

$28.99

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

11

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

12

Hex. Nut M10 X 1.5

232006414

$1.37

13

Engine Support

512050900

Unavailable

14

Lock Washer

512056700

$3.17

15

Hex. Screw M10 X 25

207102544

$1.37

16

Stopper Plate

512059198

Unavailable

17

Hex. Screw M8 X 20

236282084

$1.48

18

Support Plate

517271800

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.90

20

Flat Washer 8 mm

234081410

$0.83

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

SPRING - Call your local BRP dealership

517182100

Unavailable

Spring

415107100

$6.35

23

Muffler

514052852

Unavailable

Muffler-Pipe | MX Z 500 F.

514046700

Unavailable

24

Loctite 271, 10 ml

293800005

$26.99

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Screw

517244200

Unavailable

27

Muffler Support

514044100

Unavailable

28

Rod retainer

570025100

Unavailable

29

Elastic Locking Nut M10 X 1.5

233601416

$1.69

30

Aluminum Washer

514049300

Unavailable
