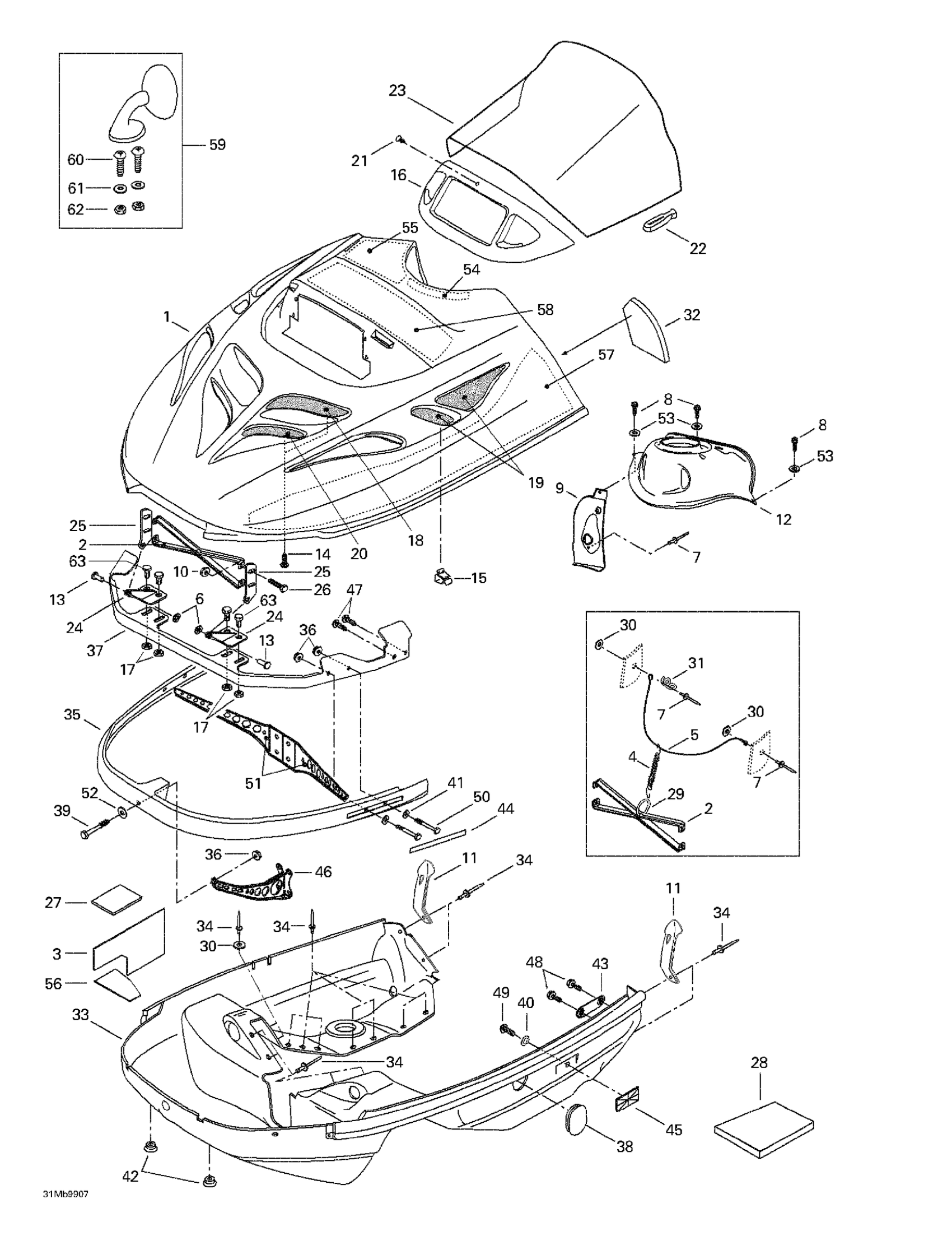

Ski-Doo Formula Deluxe 380/500, 1999 09- Cab, Console Diagram

#

Description
Price

1

Cab (Red)

517302198

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Reflection Sheet

514052949

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.53

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Forming Screw M5 x 16

250000676

$1.01

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.04

11

Hood Latch

570027100

$13.49

12

Dash-Switch | Formula DLX 380. Formula DLX 500.

517302102

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Edge Clip

517302785

$0.88

16

Lamp Moulding

572079200

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

LH Upper Grill | Formula Deluxe 380.

517277100

Unavailable

LH Upper Grill

517277102

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

LH Front Grill | Formula Deluxe 380.

517265900

Unavailable

LH Front Grill

517265903

Unavailable

21

Black, Dart

414644300

$0.98

22

Windshield Latch

570023800

$4.49

23

High Windshield

517302106

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

$0.19

31

Bracket

517262800

Unavailable

32

R.H Rear Foam

414883800

Unavailable

LH Rear Foam

414883700

Unavailable

33

Bottom Pan (Black)

572076207

Unavailable

34

Pop Rivet 3/16"

390906800

$0.93

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hinge Bracket

517296600

Unavailable

38

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

39

Hex. Screw M6 X 40

207064044

$1.48

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.53

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Hex. Screw M6 X 30

207063044

$1.26

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

$1.37

53

Washer | DS 650 X

391301600

$0.48

54

Foam

415050900

Unavailable

55

Upper Foam

414975000

Unavailable

56

Reflection Sheet

514052858

Unavailable

57

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

58

Center Foam

414985100

Unavailable

59

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

Unavailable

60

Screw M4 x 20 | Legend 380 F. Legend 550 F.

222842065

Unavailable

61

Washer

517124300

$0.19

62

Elastic Stop Nut M4

232541414

$0.58

63

Hex. Flange Screw M6 X 16

207661654

$2.11
