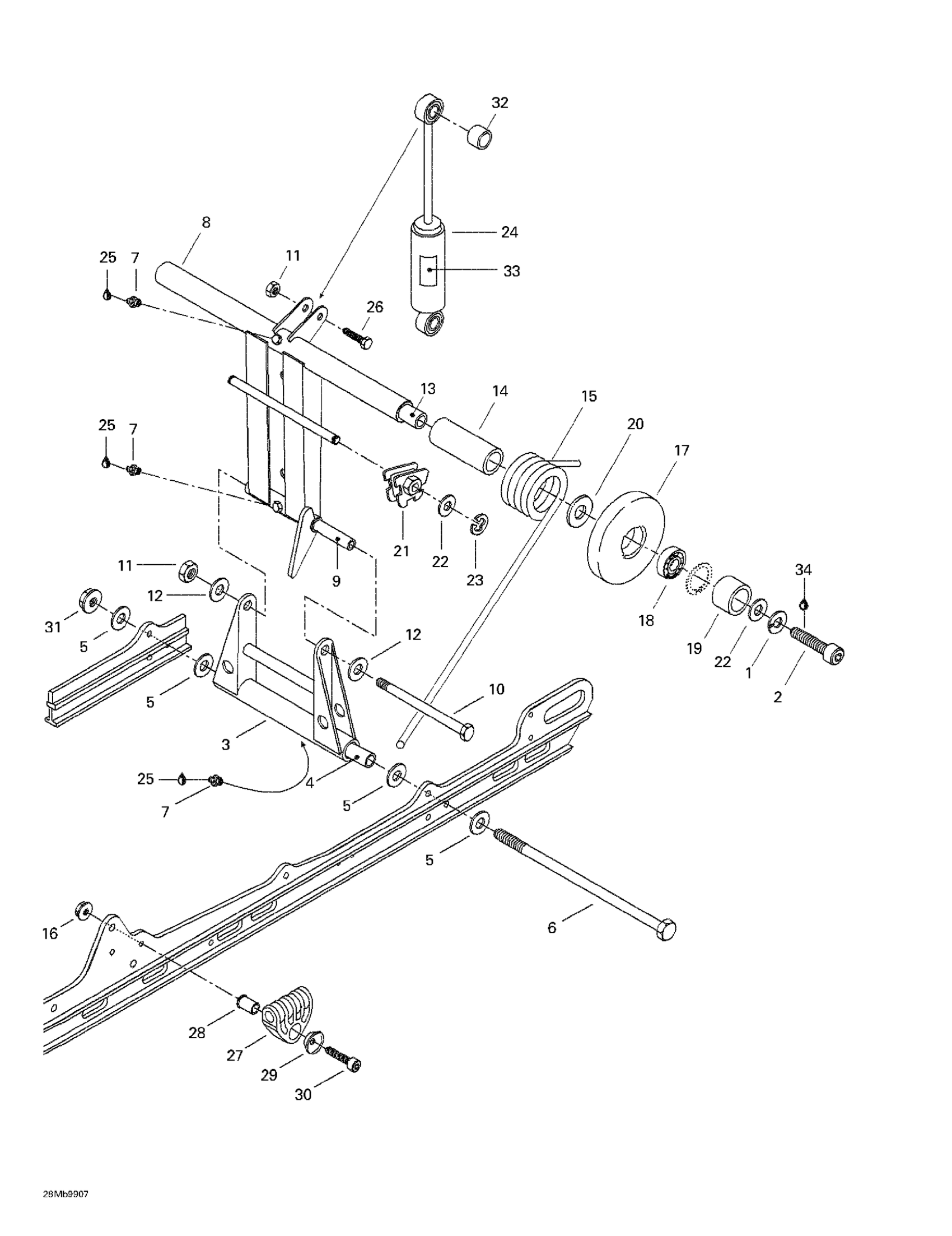

Ski-Doo Formula Deluxe 380/500, 1999 08- Rear Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Socket Screw M10 X 35

205003544

$1.69

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$30.49

7

Grease Fitting

408200700

$3.49

8

Welded Rear Arm

503151200

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.65

10

Bolt M8, Short

732601197

$15.36

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Flat Washer 8 mm

234081410

$0.83

13

Transversal Rear Axle

503151400

Unavailable

14

Bushing

572047800

Unavailable

15

RH Spring

414866200

Unavailable

LH Spring

414866300

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.

572094300

Unavailable

18

Ball Bearing

405404600

$25.99

19

Spacer

503154200

Unavailable

20

Washer

503144900

$2.79

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

e Circlip

371907100

Unavailable

24

Shock | Formula Deluxe 380.

415091600

Unavailable

Shock

503188973

Unavailable

25

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

26

Hex. Screw M8 X 40

207084044

$1.15

27

Spring Support

503189657

$11.99

28

Spring Guide Axle

503188934

Unavailable

29

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

30

Socket Head Screw M8 X 45

205084544

$0.90

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

CUSHION - Call your local BRP dealership

414802600

Unavailable

33

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49
