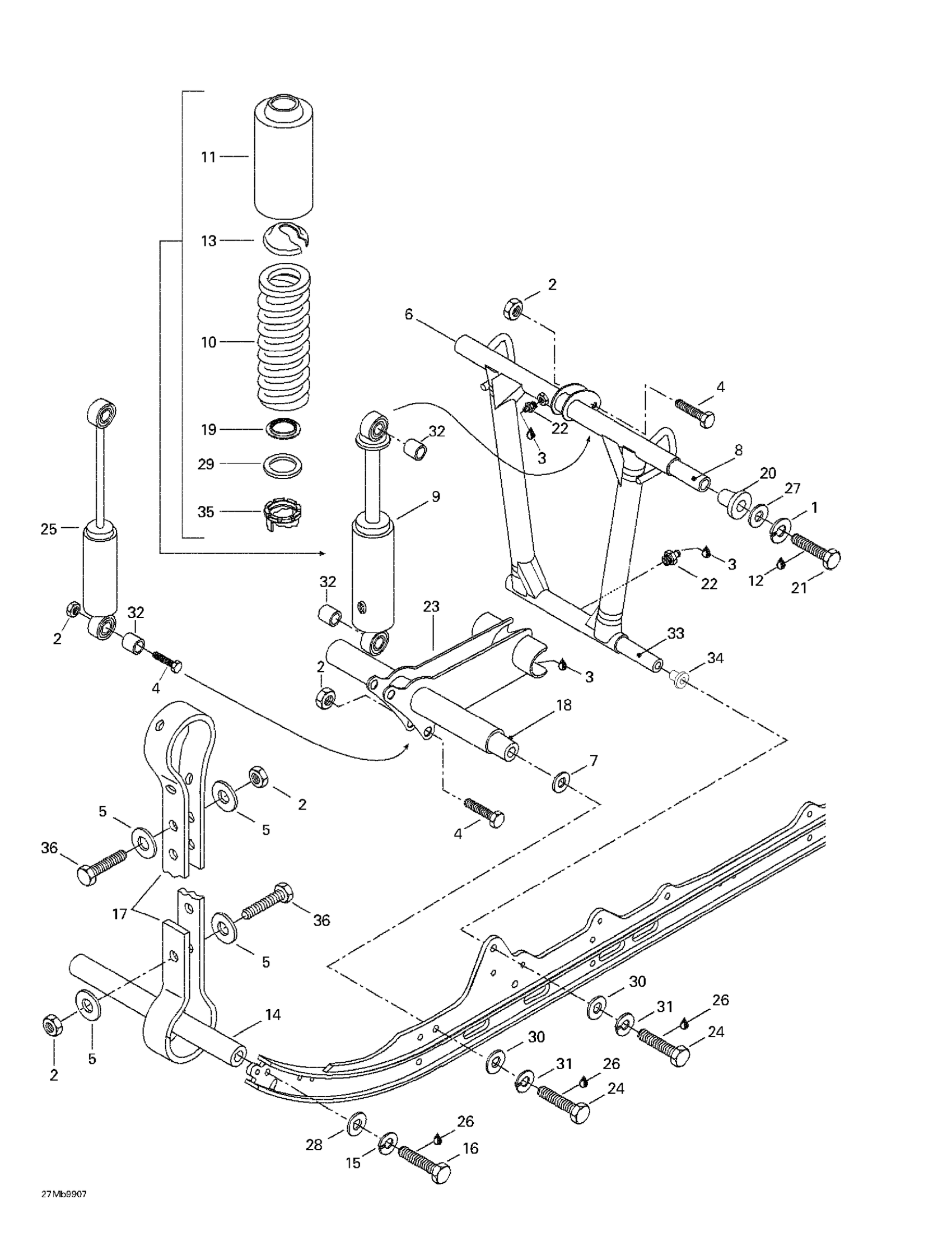

Ski-Doo Formula Deluxe 380/500, 1999 Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503189222

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock | Formula Deluxe 380.

503188904

Unavailable

Shock

503188906

Unavailable

10

Spring

415069900

Unavailable

SPRING - Call your local BRP dealership

415070100

Unavailable

11

Protector

503193663

$37.99

12

Loctite 243, 10 ml

293800060

$21.49

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap

570069300

Unavailable

18

Lower Axle

503174800

Unavailable

19

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

Spring Guide

503187500

$10.49

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support

503182100

Unavailable

24

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

25

Shock

503188905

Unavailable

Shock

503188973

Unavailable

26

Loctite 271, 10 ml

293800005

$26.99

27

Flat Washer 10 mm

234001410

$1.26

28

Flat Washer 8 mm

234081410

$0.83

29

WASHER - Call your local BRP dealership

503184400

Unavailable

30

Flat Washer 12 mm

234021410

$0.72

31

Lock Washer 12 mm

224721218

Unavailable

32

CUSHION - Call your local BRP dealership

414802600

Unavailable

33

Shaft

503182000

Unavailable

34

Cushion

503188940

Unavailable

35

Adjustment Cam

505073625

$12.99

36

Hex. Screw M8 X 25

207182544

$0.90
