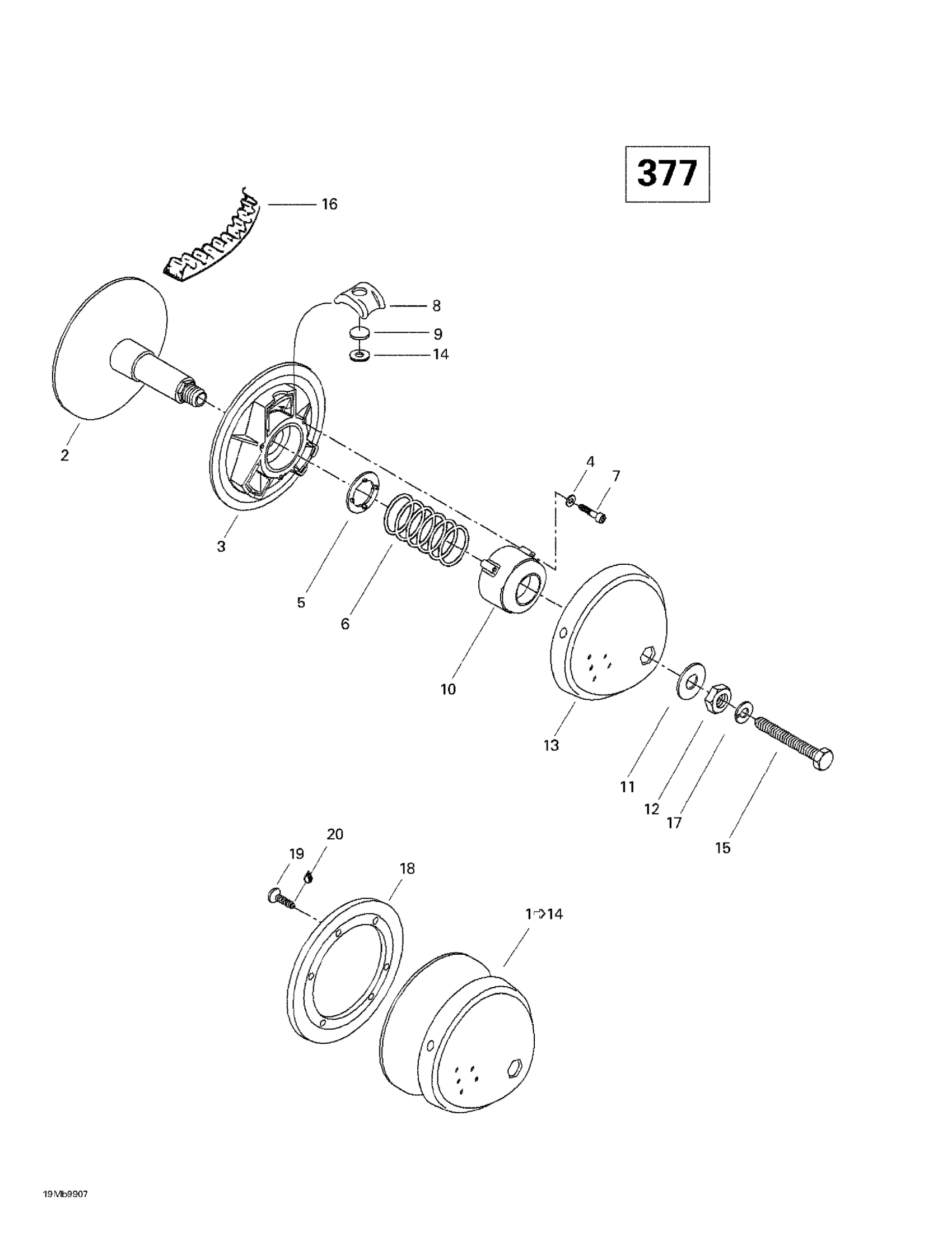

Ski-Doo Formula Deluxe 380/500, 1999 05- Drive Pulley (377) Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 16. Formula DLX 380.
417221100
Unavailable
2
Inner Flange
417121200
Unavailable
3
Outer Sliding Flange | Formula S. Formula DLX 380.
417121300
Unavailable
4
WASHER - Call your local BRP dealership
420245370
Unavailable
5
Guide Washer | 380 F.
417116200
Unavailable
6
Spring (Red/Blue)
417118400
Unavailable
7
Allen Screw M6 x 40
222964066
Unavailable
8
CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA
417118100
Unavailable
9
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
10
Spring Cover
417121400
Unavailable
11
Washer
417122400
Unavailable
12
NUT - Call your local BRP dealership
417118300
Unavailable
13
Cap
417125100
Unavailable
14
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
15
BOLT - Call your local BRP dealership
417113800
Unavailable
17
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
18
Ring Gear (86 Theet) | Formula Deluxe 380 F.
414807500
Unavailable
19
Screw M6 x 16 | Formula Deluxe 380.
732600021
Unavailable
21
High Altitude Kit (Not Shown) | Formula Deluxe 380.
861767500
Unavailable
