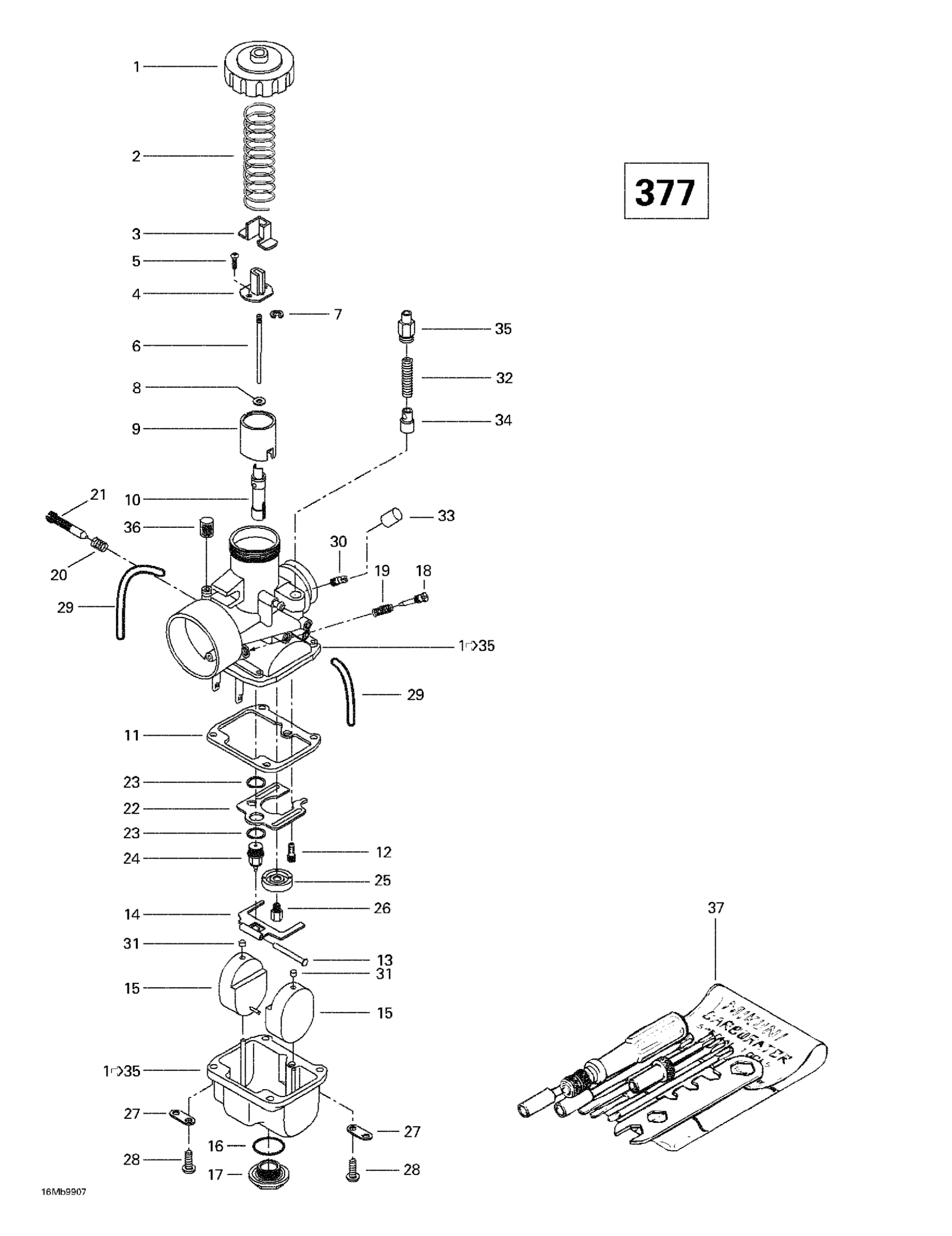

Ski-Doo Formula Deluxe 380/500, 1999 Carburetors (377) Diagram

#

Description
Price

1

Carburetor VM 30-196 | Includes 1 - 35. Formula Deluxe 380.

403138563

Unavailable

1

Cover

404103700

$32.99

2

Spring

404154800

$24.99

3

Cover

404122100

$18.43

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.29

6

Needle JN 6DP9-3

404152600

Unavailable

7

E-Ring

404152400

$6.55

8

Packing

404117000

$3.39

9

Piston Valve 2.5

404128400

$129.97

10

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.49

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.39

14

Float Lever

404107600

$23.99

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-Ring

404107300

$8.14

17

Drain Plug Screw

404107400

$23.99

18

Air Screw

404102300

$14.91

19

Spring

404101800

$4.39

20

Spring

404101700

$4.29

21

Idle Speed Screw

404109700

$18.43

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.31

24

Needle Valve 1.5

404103200

$32.99

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet MJ 140

404126600

$8.14

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.29

29

Air Vent Tube

404161802

Unavailable

30

Nipple

404153400

$11.51

31

Cap

404105800

$6.49

32

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

33

Cap

404156600

$16.12

34

Plunger Ass'y | Formula Deluxe 380.

404127500

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Filter | Formula Deluxe 380.

404158900

Unavailable

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

38

High Altitude Kit (Not Shown) | Formula Deluxe 380.

861767500

Unavailable
