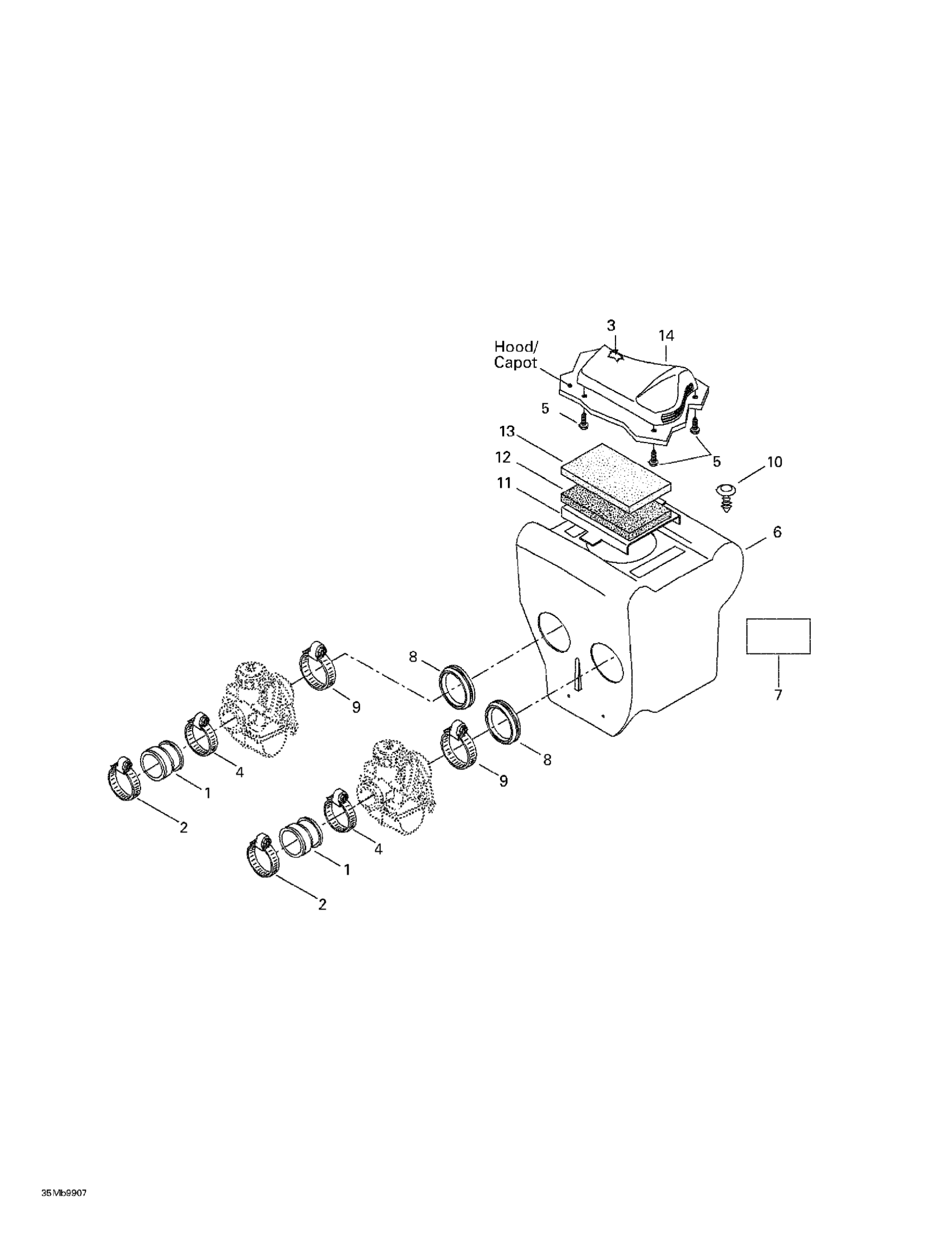

Ski-Doo Formula Deluxe 380/500, 1999 02- Air Intake System Diagram

#

Description

Price

1

CARBURATOR ADAPTOR - Call your local BRP dealership

570066800

Unavailable

2

COLLAR - Call your local BRP dealership

414532700

Unavailable

3

Air Filter

414972600

$63.99

4

Gear Clamp (47 mm)

408803800

Unavailable

5

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

6

Air Intake Ass'y | Includes 1 - 8.

508000014

Unavailable

Air Intake Ass'y | MX Z 500 F. Formula DLX 500 F.

508000013

Unavailable

7

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

8

Adaptor 34 mm

570043600

Unavailable

9

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

10

Black, Dart

414644300

$0.98

11

Intake Grill

517285900

Unavailable

12

Air Filter

415037600

Unavailable

13

Lower Foam

415106000

Unavailable

14

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable
