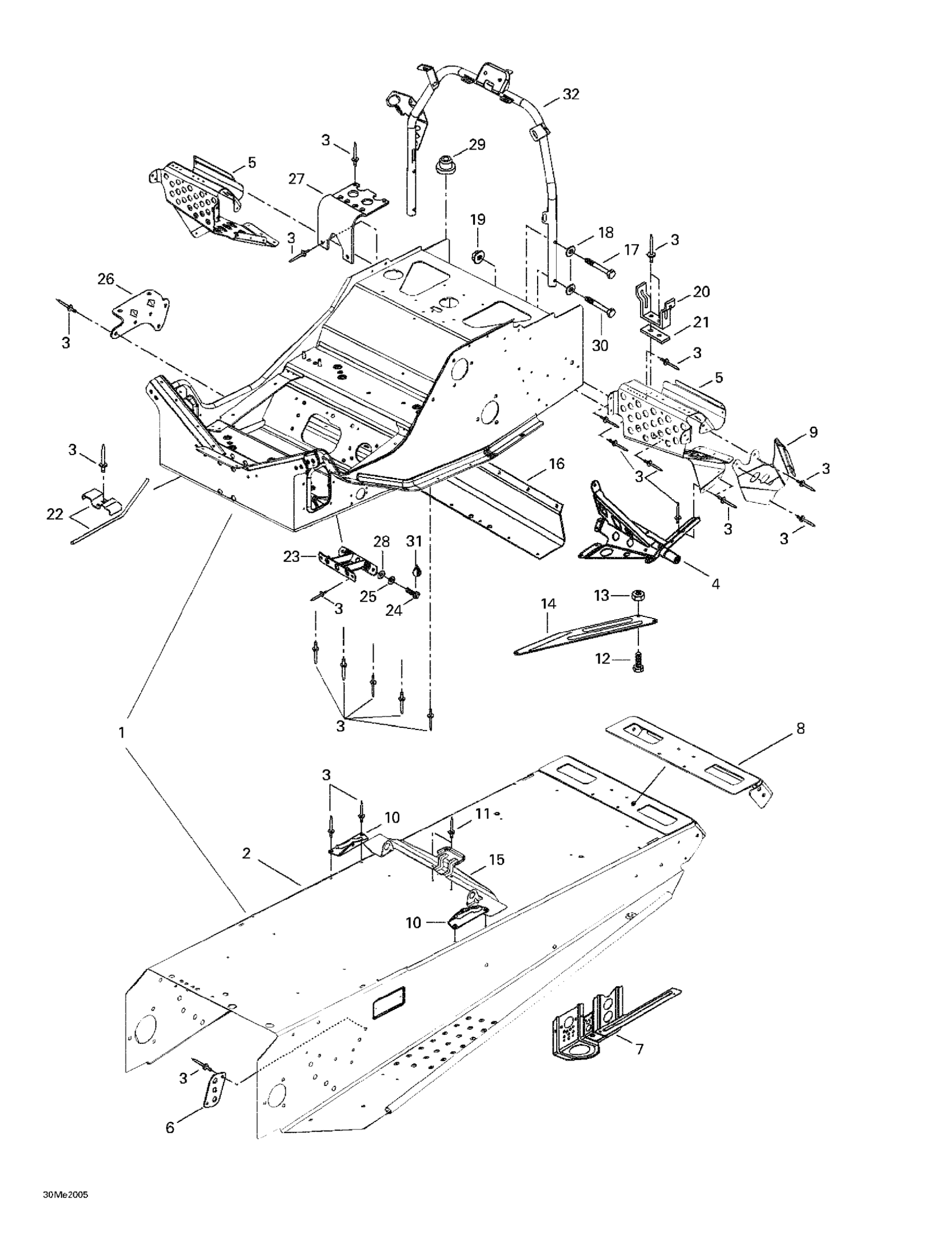

Ski-Doo Formula 500 LC, 2000 09- Frame And Accessories Diagram

Frame Ass'y | Includes 1 - 16. (Radiator and Radiator Protector Included)

518322079

Unavailable

Tunnel

518322113

Unavailable

Pop Rivet 3/16"

390402200

$0.35

RH Footrest Support

518320506

Unavailable

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Front Footrest

518318933

Unavailable

LH Front Footrest

518318934

Unavailable

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

Rear Bracket R.H

518321447

Unavailable

Rear Bracket L.H

518321448

Unavailable

Cap-End

518321301

Unavailable

Upper Plate R.H

518308715

Unavailable

Upper Plate L.H

518308714

Unavailable

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

Pop Rivet 3/16"

390402400

$0.35

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Elastic Nut M5

233251414

$1.04

RH Reinforcement Plate

518321958

Unavailable

LH Reinforcement. Plate

518321959

Unavailable

Seat Bracket

518317506

Unavailable

Deflector

518321867

Unavailable

Hex. Flange Screw M6 X 35

207063544

$1.37

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Belt Guard Bracket

518202100

$17.49

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

Guide Rope

518313700

Unavailable

Reinf. Plate

518304741

Unavailable

Hex. Screw M8 X 20

207182044

$0.74

Lock Washer 8 mm

234181401

$0.92

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

CAP - Call your local BRP dealership

414859400

Unavailable

Hex. Screw M6 X 40

207064044

$1.48

Loctite 271, 10 ml

293800005

$26.99

Handle Steering Support

518321428

Unavailable
