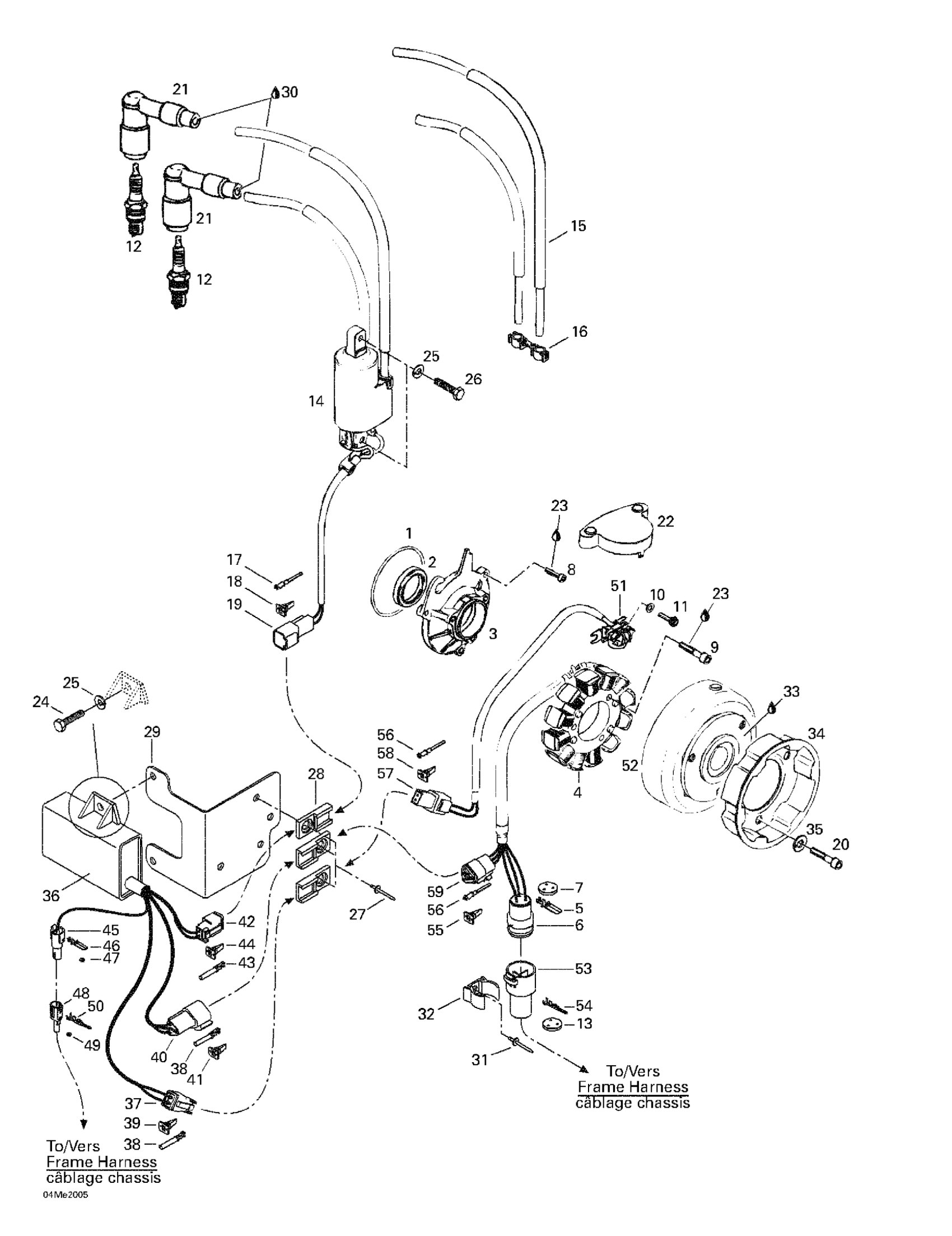

Ski-Doo Formula 500 LC, 2000 03- Magneto 12V 220W Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

420850430

Unavailable

2

SEAL-OIL - Call your local BRP dealership

420930695

Unavailable

3

Armature Plate

420810265

Unavailable

4

Stator Plate Ass'y | Includes 4 - 7.

410922905

Unavailable

5

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

6

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

7

SEAL - Call your local BRP dealership

409208500

Unavailable

8

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

9

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

10

WASHER - Call your local BRP dealership

420827800

Unavailable

11

Allen Screw M5 x 16

420840514

$1.90

12

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

13

SEAL - Call your local BRP dealership

409208500

Unavailable

14

IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.

415085400

Unavailable

15

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

16

Plastic Clip, Spark Plug Wire

410914600

$5.61

17

Male Terminal

278000631

$4.39

18

Male Lock, 2 Circuits

409207500

$3.19

19

Male Housing, 2 Circuits

409206900

$9.59

20

Socket Head Screw M8 X 12

420841520

$1.69

21

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

22

Pick-Up Cover

420810700

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Hex. Screw M6 X 16

207161644

$0.74

25

Lock Washer M6, Black

234161471

$0.53

26

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

27

Pop Rivet 3/16"

390402400

$0.35

28

Clip

270000141

$11.49

29

Cable Support

515175107

Unavailable

30

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

31

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

32

Clip

415089700

Unavailable

33

Sealant Loctite 648

219703000

$45.99

34

Starting Pulley

420852590

$29.49

35

Washer-Lock Din.128

420945832

$1.15

36

Ignition Module | Includes 36 - 47.

512058927

Unavailable

37

Male Housing, 2 Circuits

409206900

$9.59

38

Male Terminal

278000631

$4.39

39

Male Lock, 2 Circuits

409207500

$3.19

40

Male Housing

278002378

$13.99

41

Male Lock, 3 Circuits

409207600

$3.19

42

Female Connector, 2 Circuits

409207300

$9.85

43

Female Terminal

278000632

$2.09

44

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Female Terminal

409012100

$4.55

47

Seal

409012300

$4.54

48

Male Connector Housing (1 Circuit)

409208800

Unavailable

49

Seal

409012300

$4.54

50

Male Terminal

409011300

$5.93

51

Pick Up Ass'y

420965642

Unavailable

52

Magneto Flywheel

410922906

Unavailable

53

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

54

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

55

Female Lock

409207200

$4.39

56

Female Terminal

278000632

$2.09

57

Female Connector, 2 Circuits

409207300

$9.85

58

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

59

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99
