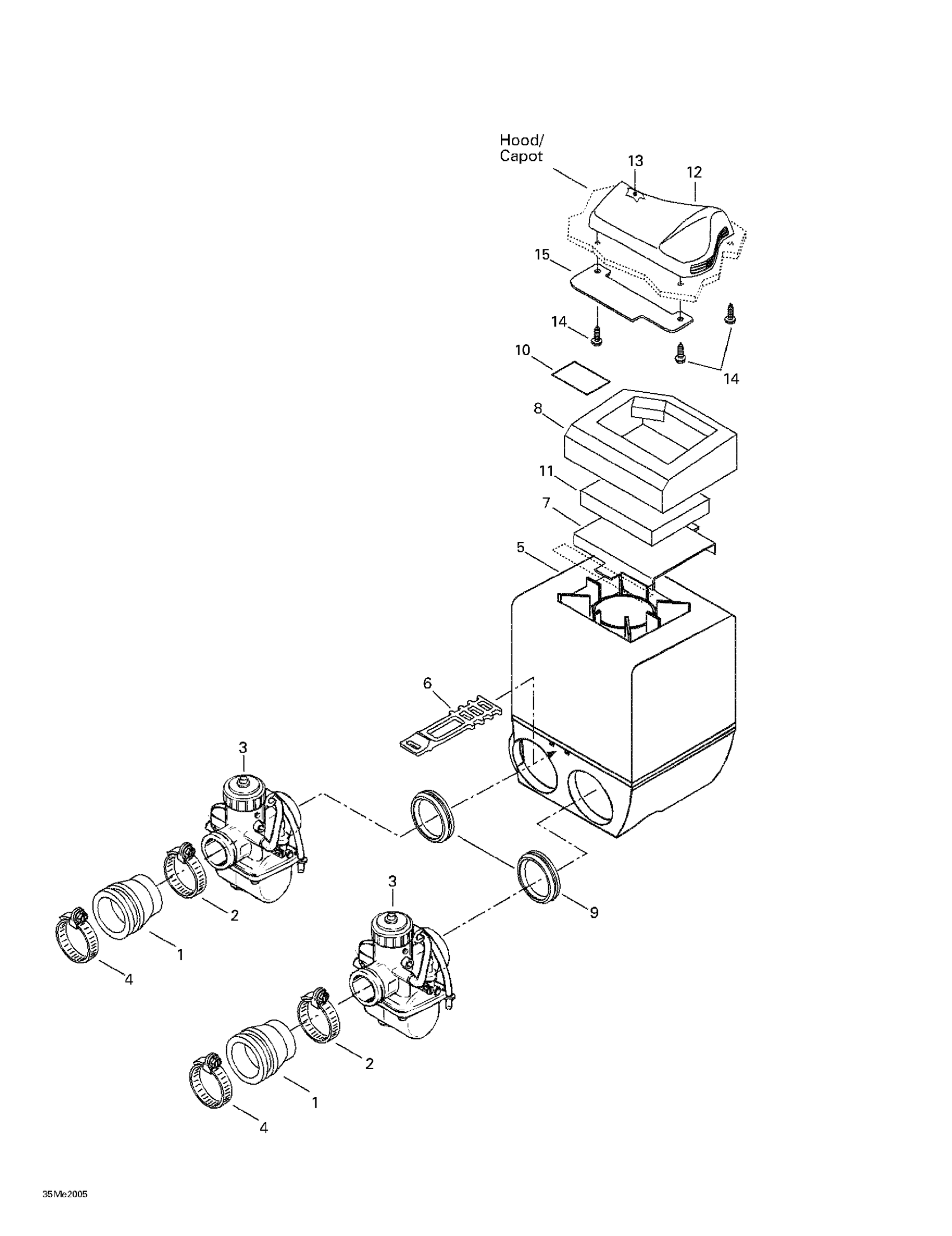

Ski-Doo Formula 500 LC, 2000 Air Intake System Diagram

#

Description
Price

1

Adaptor Caburetor (38 mm)

570048100

Unavailable

2

Clamp (50 mm)

415038400

Unavailable

3

Carburetor VM 38-431 (PTO)

403138608

Unavailable

Carburetor VM 38-432 (MAG)

403138609

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | Includes 5 - 11.

508000026

Unavailable

6

LATCH - Call your local BRP dealership

570069700

Unavailable

7

Grill Intake

517283900

Unavailable

8

Exterior Foam

415105900

Unavailable

9

Intake Adaptor VM 38

570048900

Unavailable

10

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

11

Air Filter

415014800

$12.49

12

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

13

Air Filter

414972600

$63.99

14

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

15

Deflector

517298800

Unavailable
