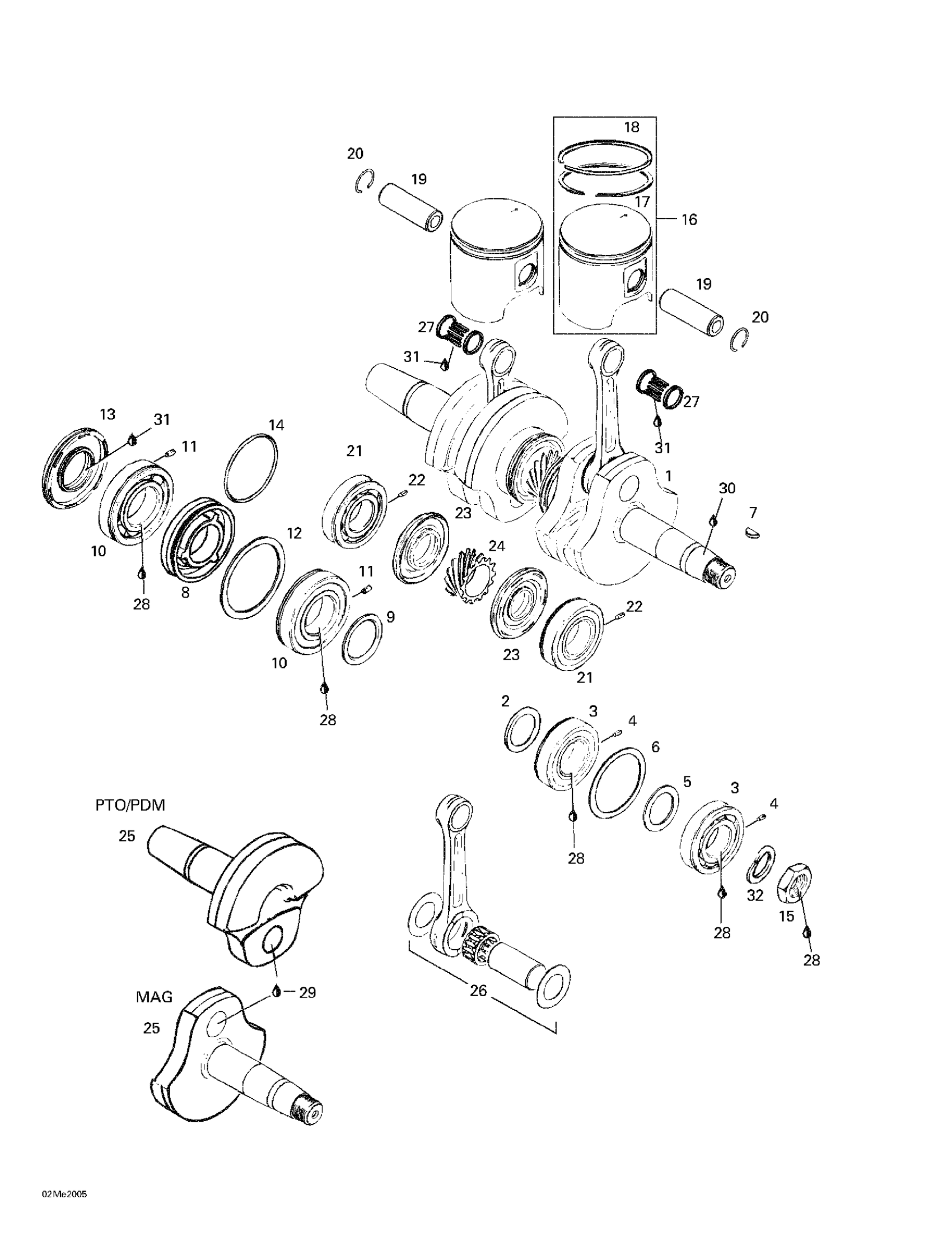

Ski-Doo Formula 500 LC, 2000 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 14.

420886933

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

7

Woodruff Key

420246015

$3.17

8

Labyrinth Bushing

420830294

Unavailable

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

11

Dowel Pin

420929972

Unavailable

12

Retaining Disk

420927710

$7.41

13

Oil Seal This part replaces 290831952.

420831952

$18.01

14

O-RING - Call your local BRP dealership

420830370

Unavailable

15

Hex. Nut, M22 X 1.5

420842239

$17.53

16

Piston Ass'y (2 rings 69.39 mm) | Includes 16 - 18.

420887553

Unavailable

Oversize Pist. Ass'y (2 rings 69.64 mm)

420887554

Unavailable

17

Rectangular Ring 69.5 mm

420915985

Unavailable

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

18

Semi-trapez Ring 69.5 mm

420815045

Unavailable

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

19

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

20

Piston Circlip

420945735

$4.46

21

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

22

Dowel Pin

420929972

Unavailable

23

Oil Seal

420831990

$20.49

24

Central Gear 14 Teeth

420935748

Unavailable

25

Crankshaft (PTO side)

420818660

Unavailable

Crankshaft (MAG side)

420818690

Unavailable

26

Crankshaft Repair Kit (PTO side)

420886955

Unavailable

CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership

420886956

Unavailable

27

Needle Bearing

420832438

Unavailable

28

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

29

Sealant Loctite 648

219703000

$45.99

30

Loctite 243, 10 ml

293800060

$21.49

31

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

32

Lock Washer, 22 mm

420945759

$1.90
