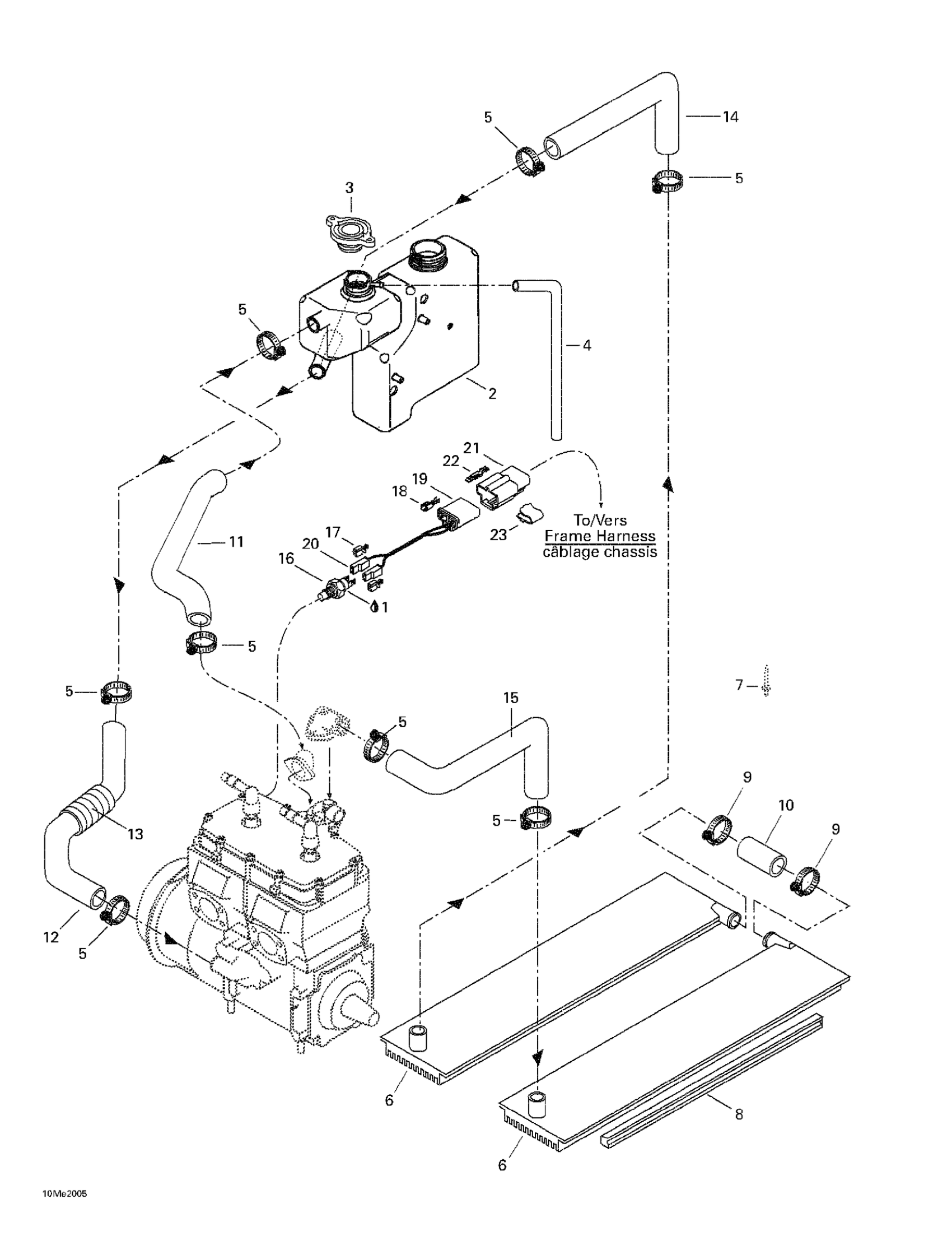

Ski-Doo Formula 500 LC, 2000 01- Cooling System Diagram
#
Description
Price
2
Coolant Tank
519000014
Unavailable
5
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
6
RH Radiator
517280510
Unavailable
LH Radiator
517280511
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Radiator Protector
415056500
Unavailable
9
Clamp Tridon
408803400
Unavailable
10
Radiator Hose
414795800
Unavailable
11
Engine Outlet Hose
414972900
Unavailable
12
Engine Inlet Hose
415010400
Unavailable
13
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
14
Radiator Outlet Hose
414973000
Unavailable
15
Radiator Inlet Hose
415028000
Unavailable
16
Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.
414728700
Unavailable
18
Female Terminal PACKARD
561503200
Unavailable
19
Female Terminal Housing (3 circuits)
409008500
Unavailable
21
Male Terminal Housing (3 circuits)
409008600
Unavailable
22
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
23
CLIP - Call your local BRP dealership | Europe Models
409205600
Unavailable
