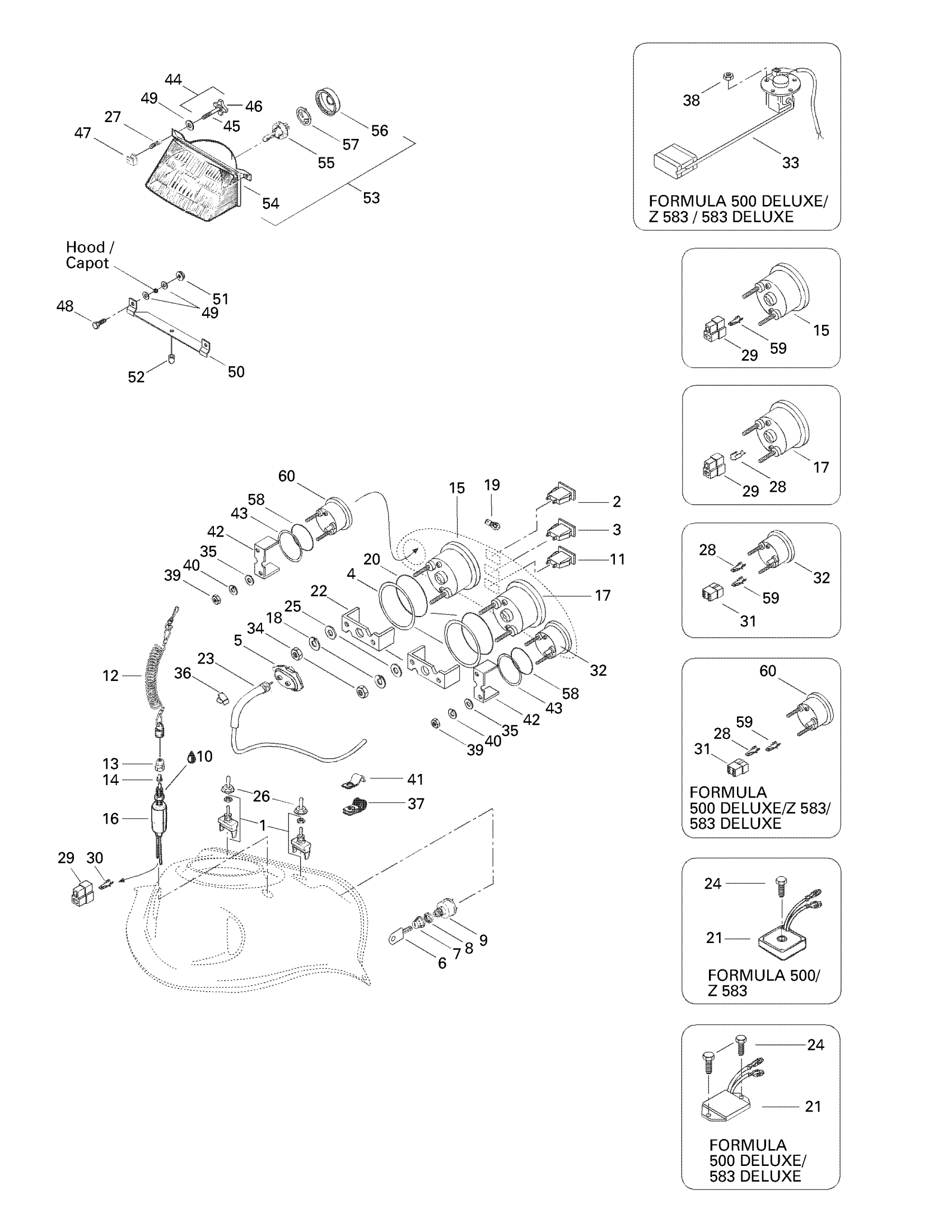

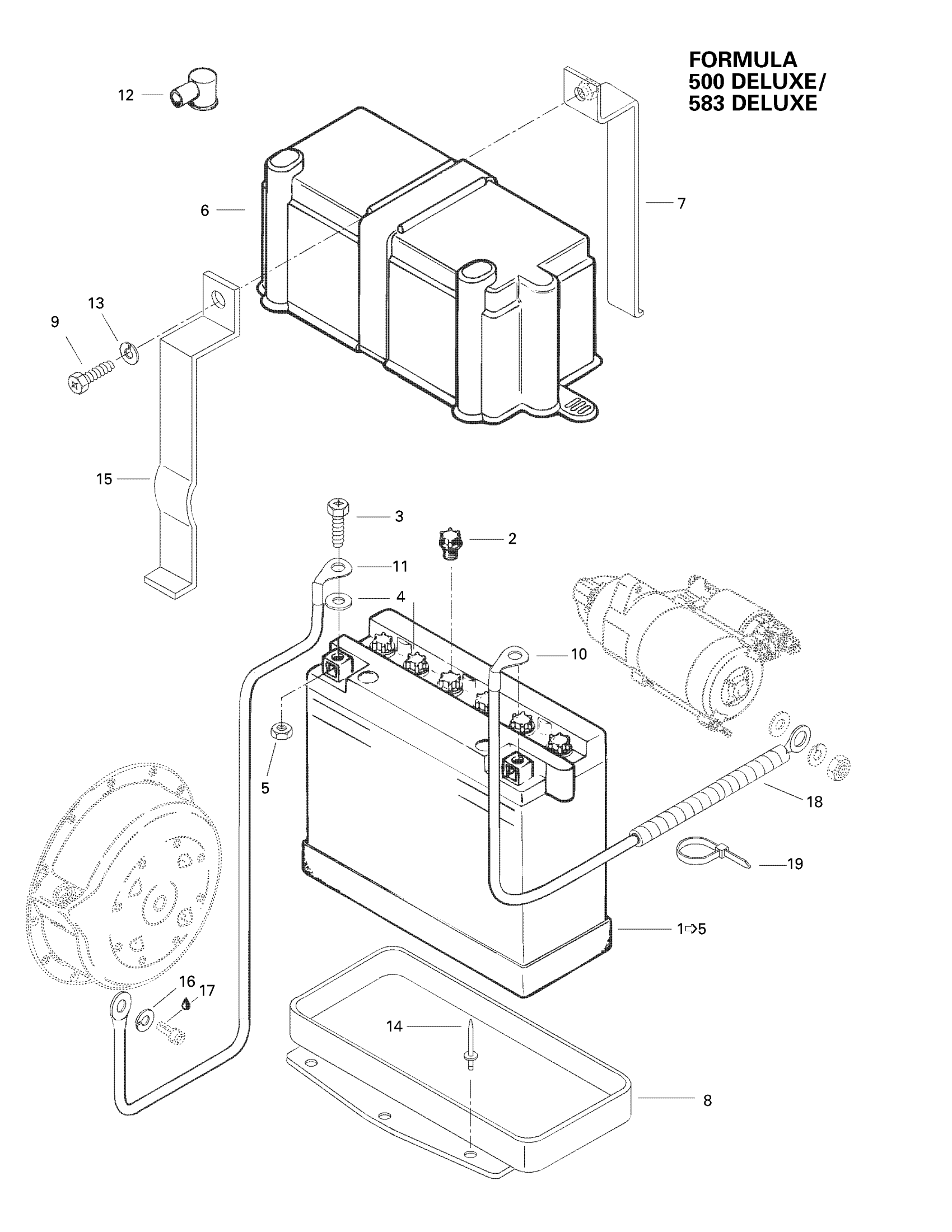

Ski-Doo Formula 500 Deluxe, 1998 10- Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$35.99

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

11

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Plunger Cap

570151100

$9.85

15

Tachometer

415096500

Unavailable

16

Brake Switch

515175653

$19.49

17

Speedometer (KMH)

415096300

Unavailable

Speedometer (MH)

415096400

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515163900

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.67

25

Flat Washer

517225900

$0.18

26

Switch Cover

515175281

$15.99

27

Spring

517168600

$7.39

28

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

32

Temperature Gauge

415097200

Unavailable

33

Fuel Sender Ass'y

415114700

Unavailable

34

Nut

414806900

Unavailable

35

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

36

Clip

414227300

$1.67

37

Open Clamp

414176000

$1.99

38

Elastic Stop Nut M5

232551414

$0.87

39

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

40

Lock Washer | SE Models

414833700

Unavailable

41

CLIP - Call your local BRP dealership

415018200

Unavailable

42

Case Holder | SE Models

414806600

Unavailable

43

WASHER - Call your local BRP dealership

517258600

Unavailable

44

Adjuster Screw Ass'y | Includes 44 - 46.

415100700

Unavailable

45

Screw M4 x 40

732603004

Unavailable

46

Handle

572106600

$10.33

47

Projector Nut

572078600

Unavailable

48

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

49

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

50

Headlamp Support

517218500

Unavailable

51

Hex. Flange Elastic Nut M5

233251414

$1.04

52

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

53

Headlamp | Includes 42 to 45

410609100

Unavailable

54

Headlamp

410608900

Unavailable

55

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

56

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

57

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

58

O-RING - Call your local BRP dealership

414807200

Unavailable

59

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

60

Fuel Gauge

415097300
