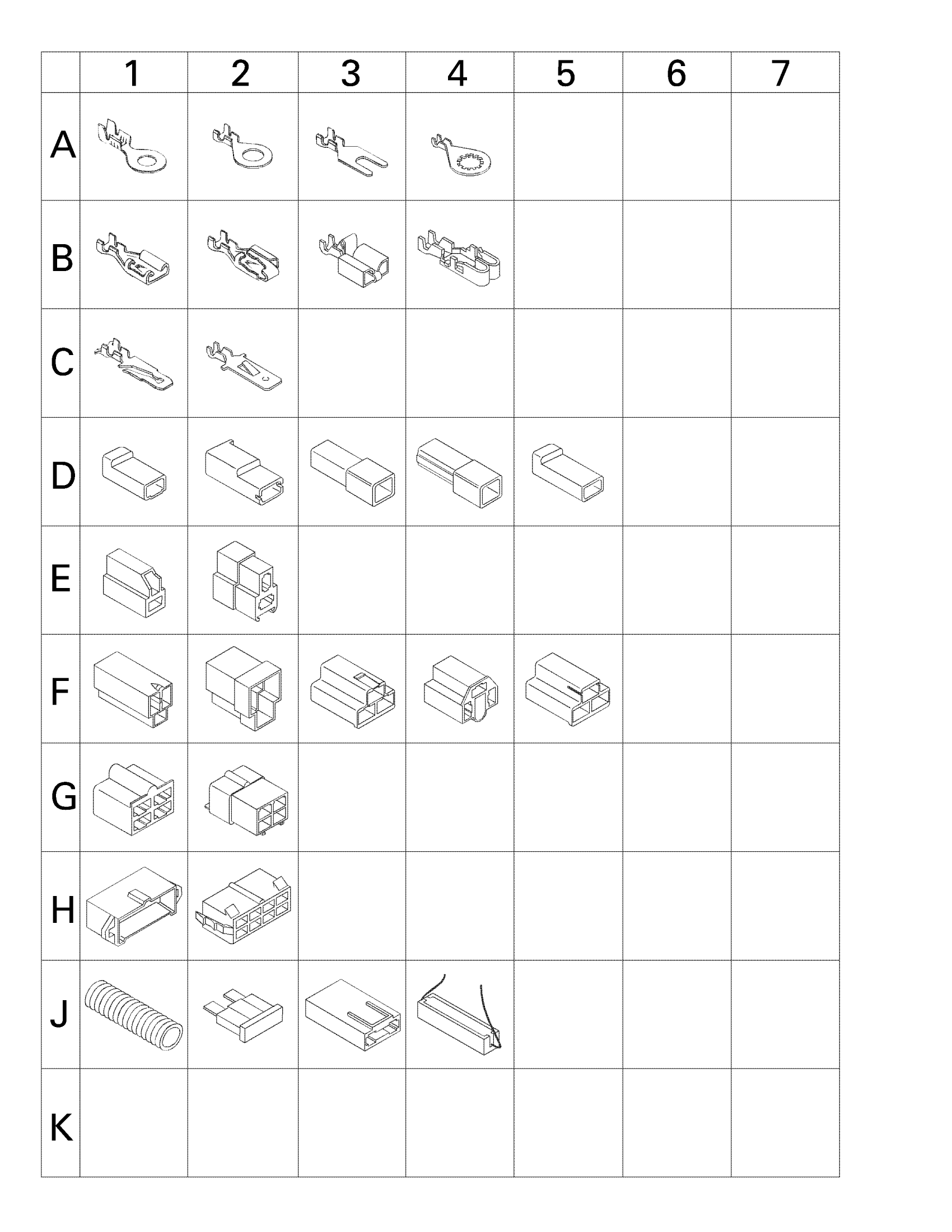

Ski-Doo Formula 500 Deluxe, 1998 10- Electrical Accessories Diagram
#
Description
Price
A1
Open Barrel
409012500
Unavailable
A2
Open Barrel | (16/14 gauge-5/16" stud)
561502700
Unavailable
A2
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
A3
Spade Terminal | (16/14 gauge-8 mm stud)
561503000
Unavailable
A4
Ring Terminal | (16/14 gauge-10 mm stud)
409001800
Unavailable
B2
Female Terminal(Packard)
409011400
Unavailable
B2
FEMALE TERMINAL - Call your local BRP dealership
409011500
Unavailable
B2
Female Terminal (18/16 gauge)
409205100
Unavailable
B2
Female Terminal PACKARD
561503200
Unavailable
B2
Female Terminal (16/14 gauge)
561503800
Unavailable
B4
Female Terminal
409003600
Unavailable
C1
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
C1
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
C2
Male Terminal
409201000
Unavailable
D1
Female Terminal Housing (1 circuit)
409204800
Unavailable
D3
Male Connector Housing (Single)
409204700
Unavailable
D4
Male Connector Housing (Single)
409201300
Unavailable
D5
Female Connector Housing (Single)
409201200
Unavailable
E1
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
E2
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
F1
Female Housing
409204300
Unavailable
F2
FEMALE HOUSING - Call your local BRP dealership
409204200
Unavailable
F3
Female Terminal Housing (3 circuits)
409008500
Unavailable
F4
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
F5
Male Terminal Housing (3 circuits)
409008600
Unavailable
G1
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
G2
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
H1
Male Connector Housing (8)
572151500
Unavailable
H2
Female Connector Housing (8)
572151200
Unavailable
