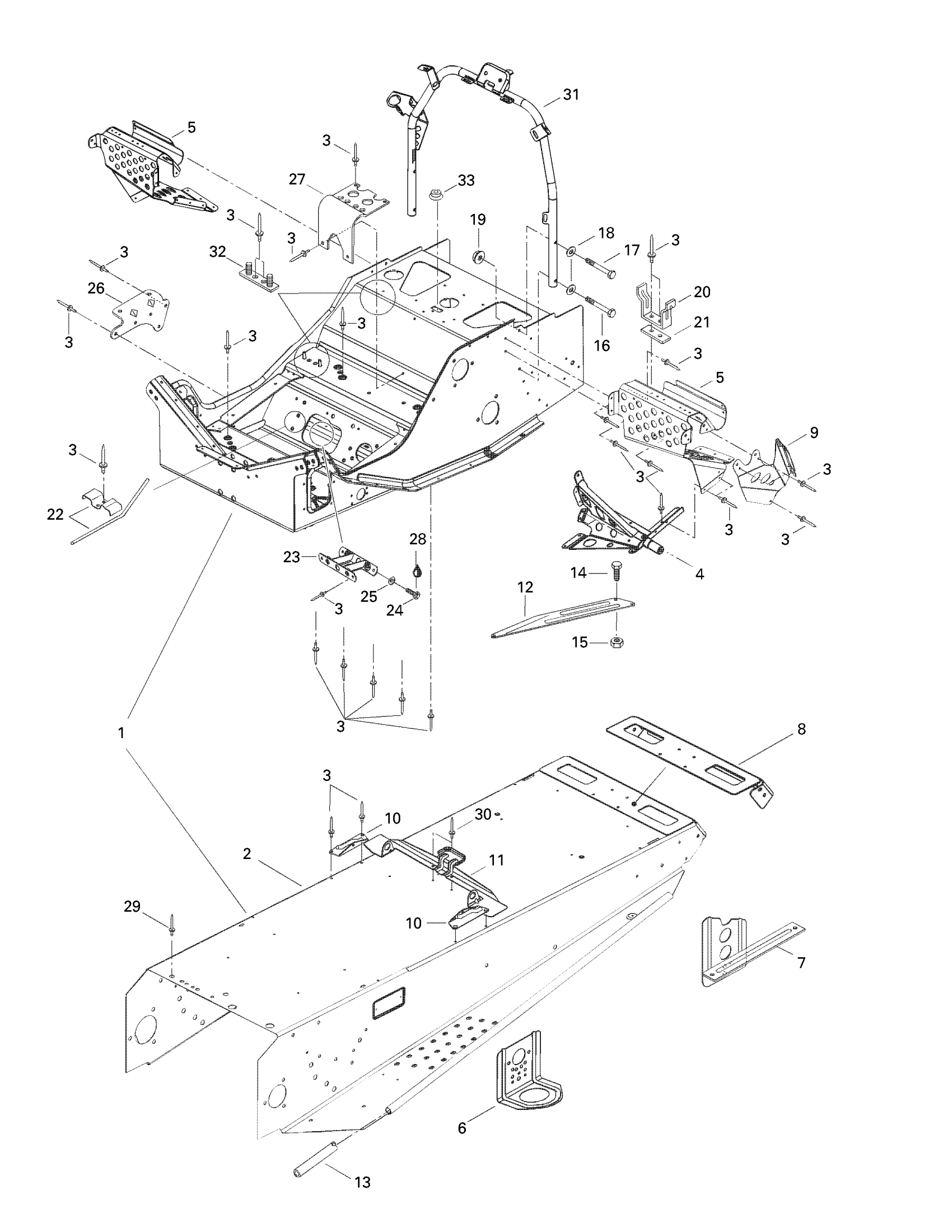

Ski-Doo Formula 500 Deluxe, 1998 Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 15. Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.

518319040

Unavailable

Frame Ass'y | Formula Z 583.

518319043

Unavailable

2

Tunnel | Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.

518318860

Unavailable

Tunnel | Formula Z 583.

518318850

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Support

518320503

Unavailable

5

RH Front Footrest

518313804

Unavailable

LH Front Footrest

518313805

Unavailable

6

Front Bracket

518312910

Unavailable

7

LH Rear Bracket

518318924

Unavailable

RH Rear Bracket

518318923

Unavailable

8

Cap-End

518317541

Unavailable

9

Upper Plate L.H

518308729

Unavailable

Upper Plate R.H

518308730

Unavailable

10

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

11

Seat Bracket

518317560

Unavailable

12

RH Reinf. Plate

518316772

Unavailable

LH Reinf. Plate

518316773

Unavailable

13

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

14

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Hex. Screw M6 X 40

207064044

$1.48

17

Hex. Flange Screw M6 X 35

207063544

$1.37

18

Flat Washer 6 mm

234061410

$1.36

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Belt Guard Bracket

518202100

$17.49

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Guide Rope

517313700

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Loctite 271, 10 ml

293800005

$26.99

29

Pop Rivet 3/16"

390402300

$0.75

30

Pop Rivet 3/16"

390402400

$0.35

31

Handle Steering Support

518309200

Unavailable

32

Support Plate

518315300

Unavailable

33

CAP - Call your local BRP dealership

414859400

Unavailable
