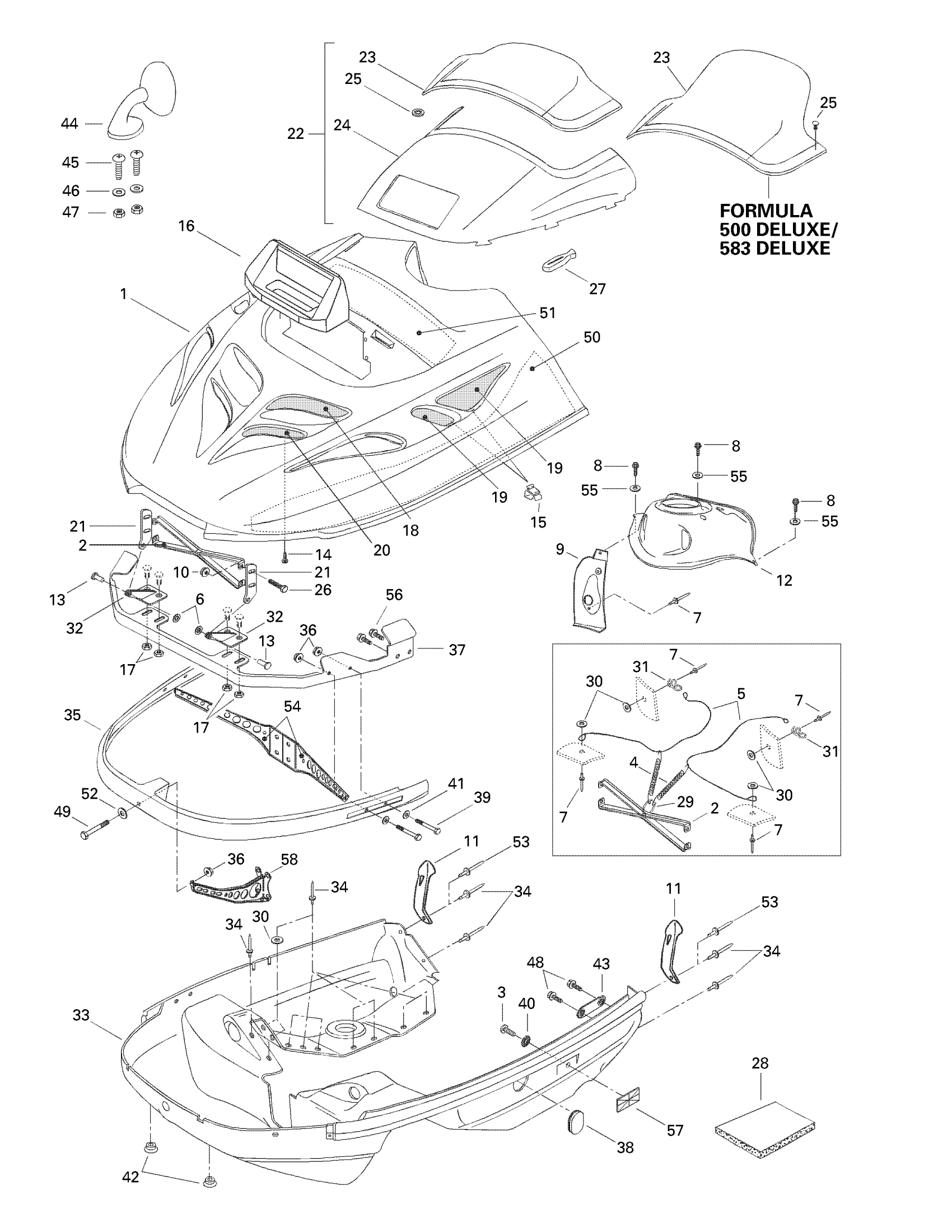

Ski-Doo Formula 500 Deluxe, 1998 09- Cab, Console Diagram

#

Description
Price

1

Cab (Viper Red) | Formula 500. Formula 500 Deluxe.

572077180

Unavailable

Cab (Royal Violet) | Formula Z 583. Formula 583 Deluxe.

572077181

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.53

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Forming Screw M5 x 16

250000676

$1.01

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

Dash-Handle | Formula DLX 500 LC.

572052100

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.04

11

Hood Latch

570027100

$13.49

12

Dash-Switch

572052702

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Clip

414227300

$1.67

16

Sealing Foam | Skandic 600.

415044800

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

RH Upper Grill

517298900

Unavailable

LH Upper Grill

517299000

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Front Grill

517299100

Unavailable

LH Front Grill

517299200

Unavailable

21

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

22

Windshield Ass'y | Includes 21 - 23.

580661300

Unavailable

Medium Windshield Ass'y | Formula 500 Deluxe. Formula 583 Deluxe.

580659900

Unavailable

23

WINDSHIELD LOW - Call your local BRP dealership

414795900

Unavailable

Medium Windshield

415050500

Unavailable

24

Windshield Support

572101800

Unavailable

25

Push Nut

732610072

$2.19

Dart

414939500

$1.04

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Windshield Latch

570023800

$4.49

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

$0.19

31

Bracket

517262800

Unavailable

32

Welded Lower Hinge

517289900

Unavailable

33

Bottom Pan (Viper Red) | Formula 500. Formula 500 Deluxe.

572076213

Unavailable

Bottom Pan (Royal Violet) | Formula Z 583. Formula 583 Deluxe.

572076214

Unavailable

34

Pop Rivet 3/16"

390906800

$0.93

Pop Rivet 3/16"

390906800

$0.93

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hinge Bracket

517296600

Unavailable

38

Pan Bottom Cap (Viper Red) | Formula 500. Formula 500 Deluxe.

570053701

Unavailable

Pan Bottom Cap (Royal Violet) | Formula Z 583. Formula 583 Deluxe.

570053703

Unavailable

39

Hex. Screw M6 X 30

207063044

$1.26

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.53

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

Unavailable

45

Machined Screw M4 x 16

222841665

Unavailable

46

Washer

517124300

$0.19

47

Elastic Stop Nut M4

232541414

$0.58

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

Hex. Screw M6 X 40

207064044

$1.48

50

LH Lower Foam

414883500

Unavailable

RH Lower Foam | Formula 500. Formula 500 Deluxe.

415014700

Unavailable

RH Lower Foam

415048700

Unavailable

51

Center Foam

414985100

Unavailable

52

Flat Washer

224061201

$1.37

53

Pop Rivet 3/16"

390906800

$0.93

54

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

55

Washer | DS 650 X

391301600

$0.48

56

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

57

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

58

Front Support

517294500

Unavailable
