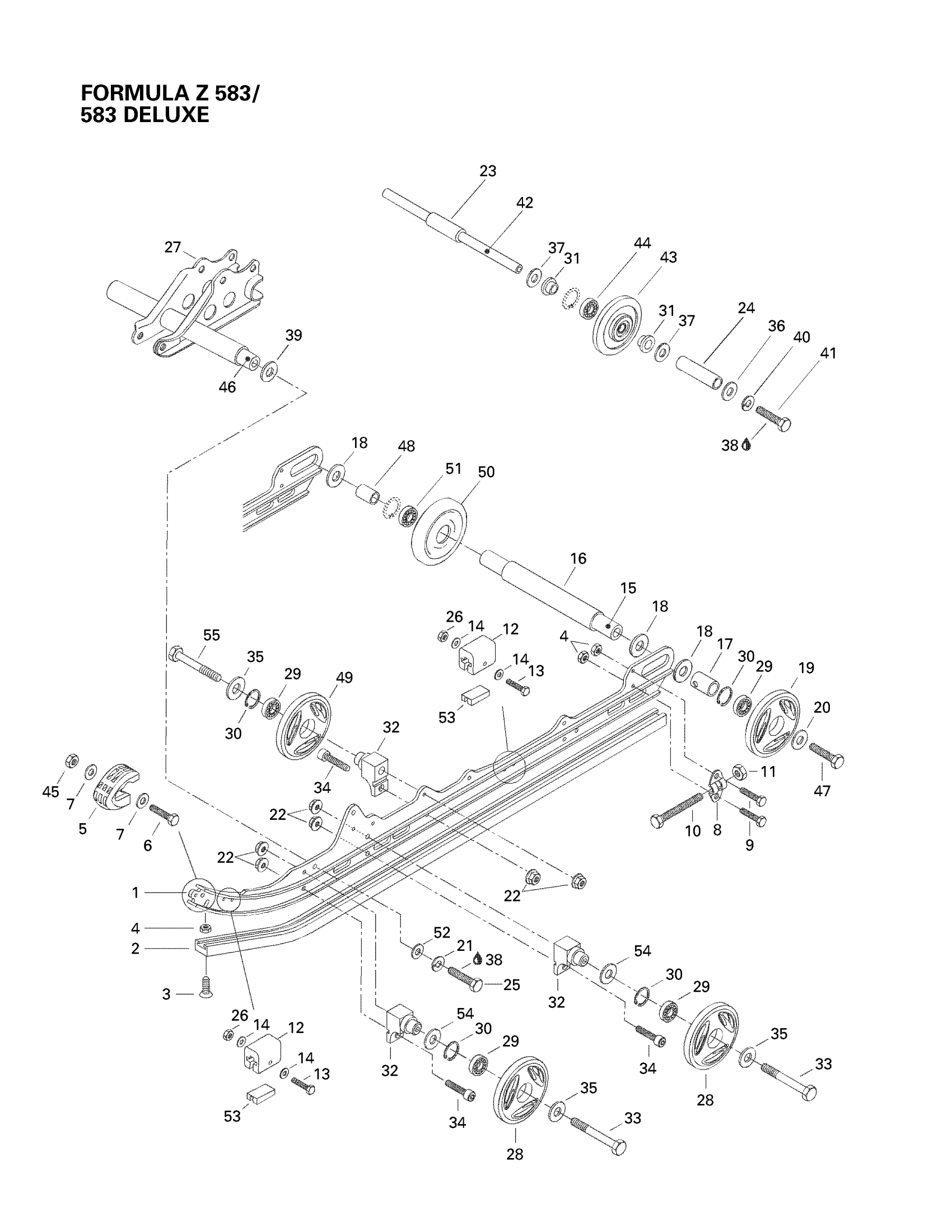

Ski-Doo Formula 500 Deluxe, 1998 08- Rear Suspension 2 Diagram

#

Description
Price

1

Runner (121") | Formula Z 583. Formula 583 Deluxe.

503181600

Unavailable

2

Runner Shoe

560103300

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$139.99

16

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

17

Outer Spacer

503189809

$18.89

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Bond Wheel 165 (Yellow) | Formula Z 583. Formula 583 Deluxe.

570066732

Unavailable

20

Washer

503183300

$5.82

21

Lock Washer 12 mm

224721218

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Spacer

503153100

Unavailable

24

External Spacer | Formula Z 583. Formula 583 Deluxe.

503160200

Unavailable

25

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

26

Elastic Stop Nut M5

232551414

$0.87

27

Welded Shock Support | Formula Z 583. Formula 583 Deluxe.

503182800

Unavailable

28

Wheel 135 (Yellow) | Formula Z 583. Formula 583 Deluxe.

570066632

Unavailable

29

Ball Bearing

293350115

$12.11

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

$4.76

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

34

Hex. Screw M8 X 25

207182544

$0.90

35

Washer

503183100

$3.17

36

Washer (Black)

503169900

Unavailable

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Loctite 271, 10 ml

293800005

$26.99

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

$0.92

41

Hex. Screw M8 X 30

207183044

$1.15

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

$12.11

45

Elastic Stop Nut M5

232551414

$0.87

46

Lower Axle

503174800

Unavailable

47

Hex. Screw With Nylon

250000019

$1.69

48

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

49

Wheel 135 | Includes 18 to 19

503190797

$33.99

50

Wheel 165" | Includes 670 to 670b

503194127

$51.99

51

Ball Bearing

293350115

$12.11

52

Flat Washer 12 mm

234021410

$0.72

53

Reinforcement Stopper

572084800

$12.99

54

WASHER - Call your local BRP dealership

503173700

Unavailable

55

Hex. Screw M8 X 80

207088044

$1.68
