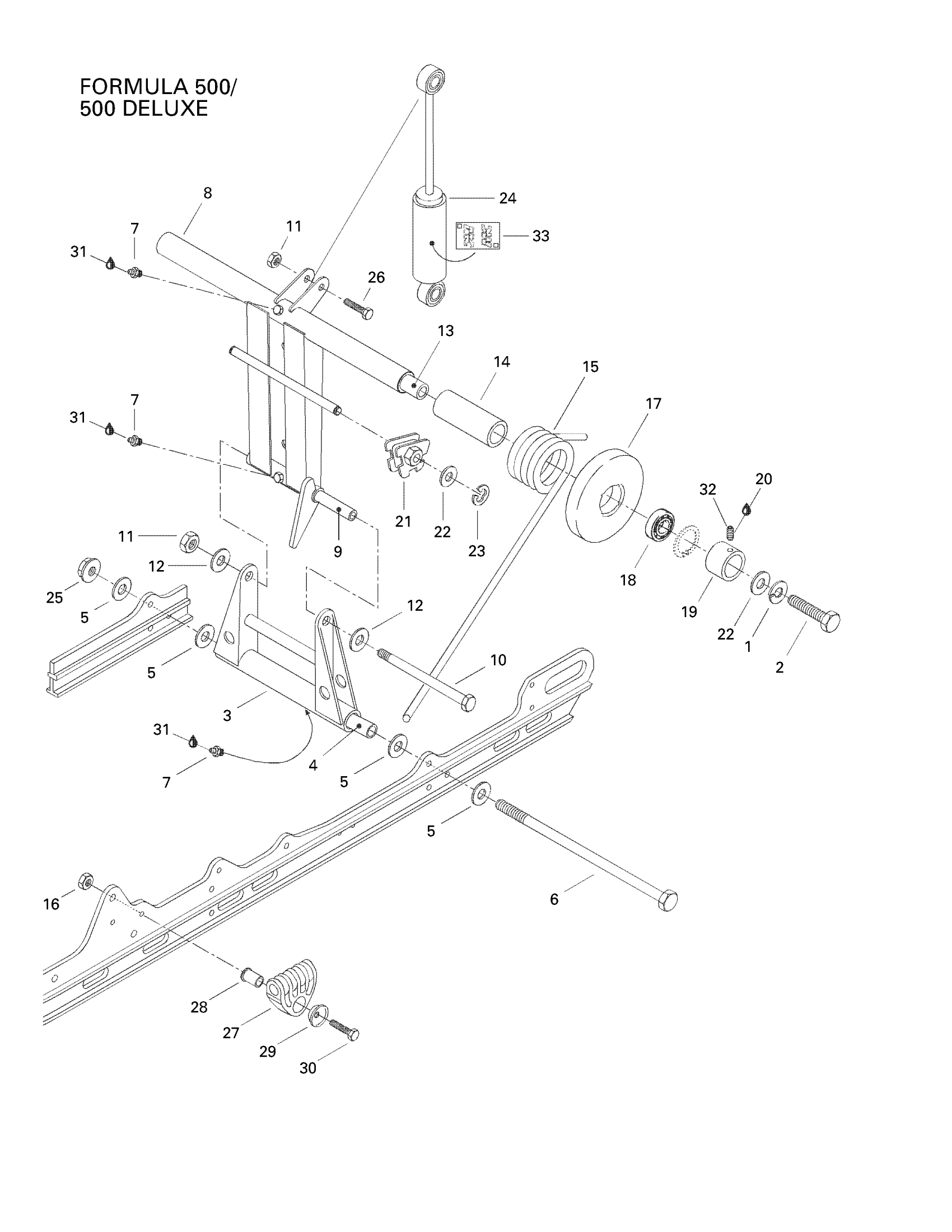

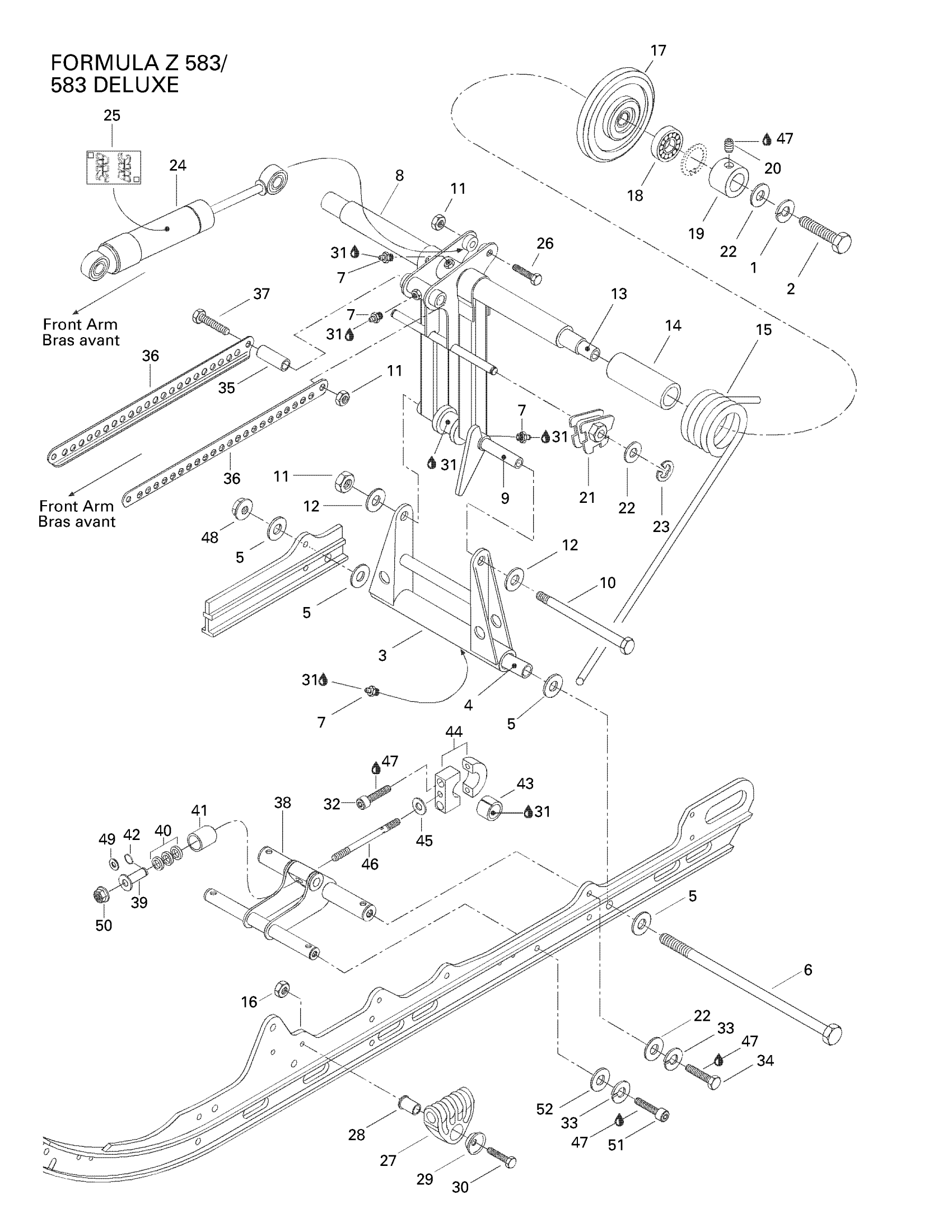

Ski-Doo Formula 500 Deluxe, 1998 Rear Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Screw M10 X 35

207103544

$1.58

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$30.49

7

Grease Fitting

408200700

$3.49

8

Welded Rear Arm | Formula Z 583. Formula 583 Deluxe.

503172800

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.65

10

Bolt M8, Short

732601197

$15.36

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Flat Washer 8 mm

234081410

$0.83

13

Rear Cross Shaft

503168700

Unavailable

14

Bushing

572080700

$17.39

15

RH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010500

Unavailable

LH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010600

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

$12.11

19

Retaining Ring

503168800

$14.99

20

Socket Set Screw M6 X 8

206260844

$1.48

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

e Circlip

371907100

Unavailable

24

Rear Shock | Formula Deluxe 583.

415094900

Unavailable

25

Shock Decal

418001500

Unavailable

26

Hex. Screw M8 X 50

207085044

$1.48

27

Spring Support

503189657

$11.99

28

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

29

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

30

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

31

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

32

Socket Head Screw M8 X 30

205083044

$1.15

33

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

34

Hex. Screw M10 X 30

207103044

$1.48

35

Tie Rod Shaft

503158600

Unavailable

36

Tie Rod | Formula Z 583. Formula 583 Deluxe.

503158700

Unavailable

37

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

38

Bracket Weld | Formula Z 583. Formula 583 Deluxe.

503176500

Unavailable

39

Bushing

503172900

Unavailable

40

RUBBER STOPPER - Call your local BRP dealership

570049600

Unavailable

41

Cup

503103600

Unavailable

42

Circlip

371910700

Unavailable

43

CUSHION - Call your local BRP dealership

415027800

Unavailable

44

Pivot Block | Includes 44 - 46. Formula Z 583. Formula 583 Deluxe.

580664300

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Loctite 271, 10 ml

293800005

$26.99

48

Hex. Flange Elastic Nut M8

233281414

$1.47

49

WASHER - Call your local BRP dealership

503183400

Unavailable

50

Hex. Flange Elastic Nut M10

233201414

$1.58

51

Socket Screw M10 X 35

205003544

$1.69

52

Hardened Washer 10 mm

503176700

Unavailable
