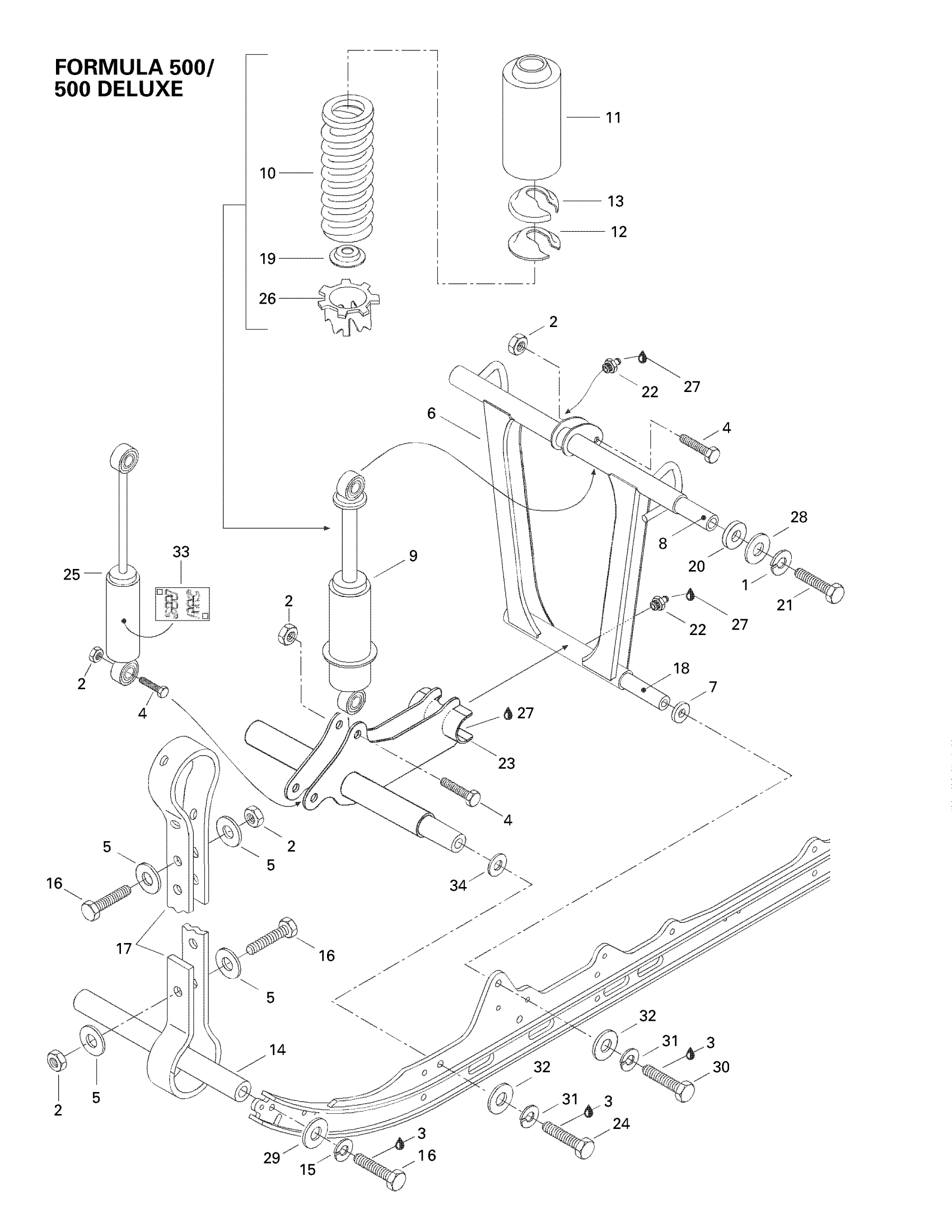

Ski-Doo Formula 500 Deluxe, 1998 08- Front Arm, Rear Suspension Diagram

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

Hex. Elastic Stop Nut M8

232581414

$0.56

Loctite 271, 10 ml

293800005

$26.99

Hex. Screw M8 X 40

207084044

$1.15

WASHER - Call your local BRP dealership

517078700

Unavailable

Welded Front Arm | Formula 500. Formula 500 Deluxe.

503176100

Unavailable

Cushion | Formula Z 583. Formula 583 Deluxe.

415026300

Unavailable

SHAFT - Call your local BRP dealership

503190387

Unavailable

Shock | Summit 500.

414975700

Unavailable

SPRING - Call your local BRP dealership

415070100

Unavailable

Protector

503193663

$37.99

Cap

706200785

$4.69

Spring Stopper

706200881

$12.99

Axle

503151600

$18.49

Lock Washer 8 mm

234181401

$0.92

Hex. Screw M8 X 30

207183044

$1.15

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

Shaft

503182000

Unavailable

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

Cushion | Formula 500. Formula 500 Deluxe.

414894900

Unavailable

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

Grease Fitting

408200700

$3.49

Welded Shock Support

503182100

Unavailable

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

Shock | Summit 500.

414975800

Unavailable

Cam

503169000

Unavailable

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

Flat Washer 10 mm

234001410

$1.26

Flat Washer 8 mm

234081410

$0.83

Not Available As Spare Part - Friction Washer

Unavailable

Lock Washer 12 mm

224721218

Unavailable

Flat Washer 12 mm

234021410

$0.72

Shock Decal

418001500

Unavailable

Hardened Washer

503175400

Unavailable
