Description

Price

1

Rewind Starter Ass'y | Includes 1 - 11.

420887450

Unavailable

2

Starter Housing

420810817

Unavailable

3

Rewind Spring

420939115

$30.49

4

Rope Sheave

420852283

$62.49

5

Was 412500100 Rope-Starter

219704403

$158.99

6

Key Clamp

420852070

$4.23

7

Pawl

420852296

$20.99

8

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

9

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

10

Pawl Spring

420938986

$9.27

11

LOCK RING - Call your local BRP dealership

420945770

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 X 16

207161644

$0.74

15

Starter Grip

572084400

$14.83

16

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

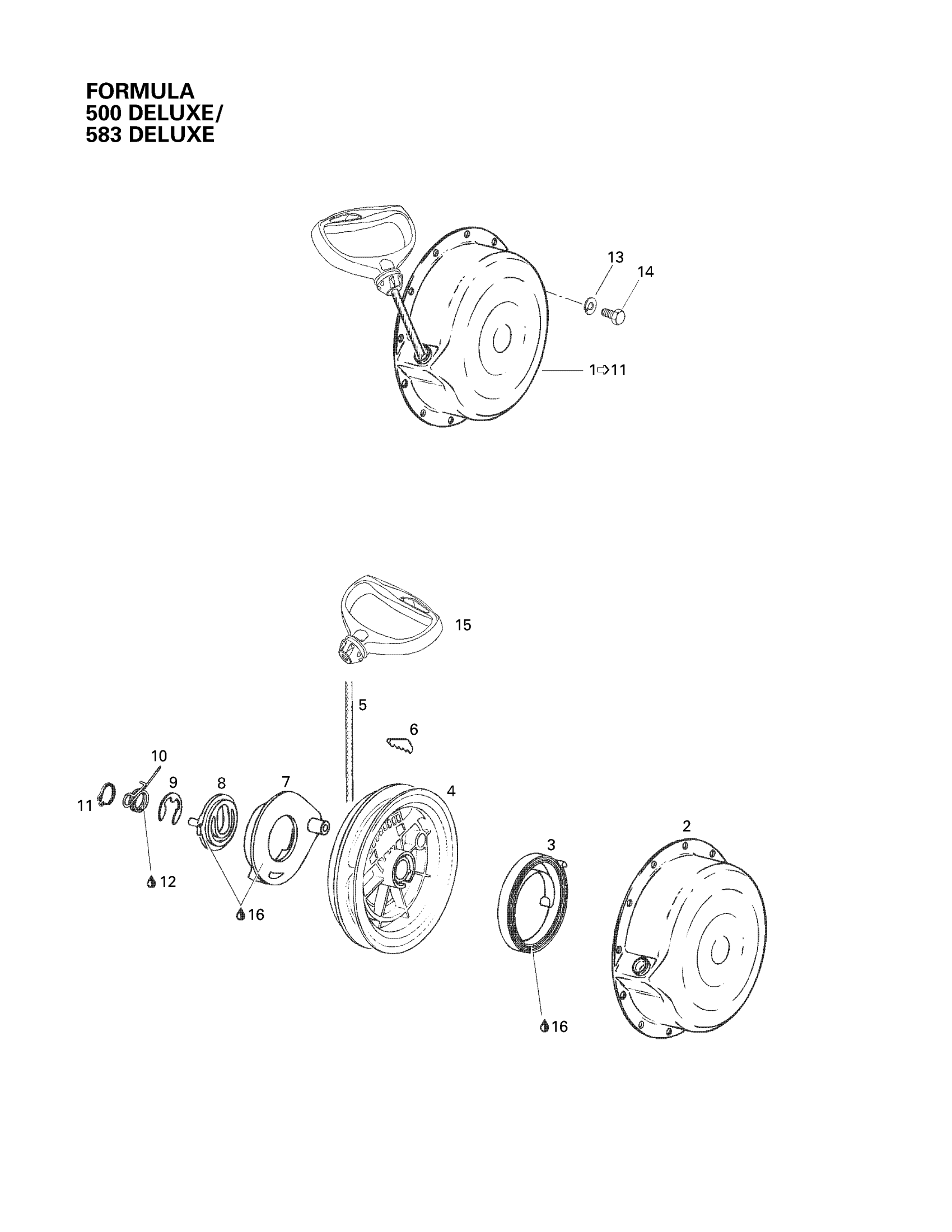

Ski-Doo Formula 500 Deluxe, 1998 04- Rewind Starter #2 Diagram

Rewind Starter Ass'y | Includes 1 - 11.

Starter Housing

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

CIRCLIP - Call your local BRP dealership

Pawl Spring

LOCK RING - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

WASHER-LOCK DIN.128 - Call your local BRP dealership

Hex. Screw M6 X 16

Starter Grip

Was 293550004 Dielectric Grease, 150 g
