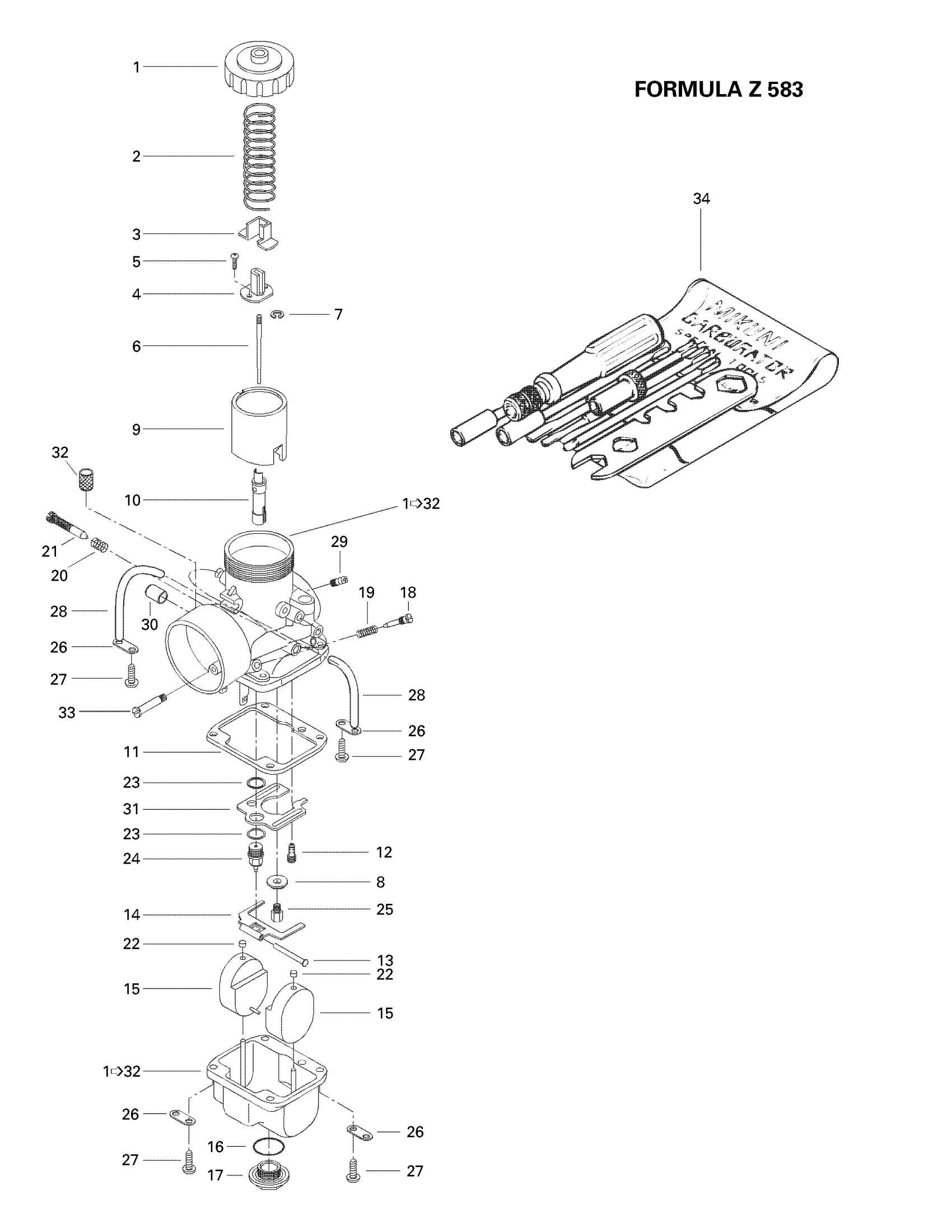

Ski-Doo Formula 500 Deluxe, 1998 02- Carburetors 2 Diagram
#
Description
Price
1
Carburetor VM 40-97 (PTO) | Includes 1 - 33. Formula Z 583.
403136100
Unavailable
Carburetor VM 40-98 (MAG) | Formula Z 583.
403136200
Unavailable
1
Cover
404126800
Unavailable
2
Spring
404156500
Unavailable
3
Cover
404128100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
Jet Needle J8-7ECY01 | Formula Z 583.
404157400
Unavailable
8
Washer
404116700
Unavailable
9
Throttle Valve CA 2.5 | Formula Z 583.
404161300
Unavailable
10
Needle Jet 224-AA-2 | Formula Z 583.
404148300
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
12
Pilot Jet PJ 60 | Formula Deluxe 670.
404121000
Unavailable
14
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
Washer | Formula Deluxe 500.
404112800
Unavailable
17
Drain Plug Screw | Formula Deluxe 500.
404112900
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
21
THROTTLE SCREW - Call your local BRP dealership
404125200
Unavailable
26
PLATE - Call your local BRP dealership
404103000
Unavailable
28
Hose | Grand Touring SE.
404109800
Unavailable
31
Baffle
404112700
Unavailable
32
Filter | Formula Deluxe 380.
404158900
Unavailable
33
Plug Screw
404131700
Unavailable
34
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
35
High Altitude Kit (Not Shown) | Formula Z 583.
861761500
Unavailable
