Description

Price

1

Battery | Includes 4 - 8.

410301100

Unavailable

2

Battery Cap

410300800

Unavailable

3

Hex. Screw M6 X 16

207161644

$0.74

4

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

5

Hex. Nut M6

232061414

$0.53

6

Battery Cover

570022000

Unavailable

7

Steel Strip | Formula Deluxe 380 F.

517286000

Unavailable

8

Battery Seat | Formula Deluxe 380 F.

517286200

Unavailable

9

Hex. Screw M5 X 20

207152044

$0.90

10

Current Wire | Formula DLX 500 LC.

515161300

Unavailable

11

Ground Wire | Formula DLX 380. Formula DLX 500.

515157000

Unavailable

12

Protection Cap

570151000

$21.99

13

Lock Washer 5 mm | Europe

234151401

$0.55

14

Pop Rivet 3/16"

390402200

$0.35

15

Steel Strip | Formula Deluxe 380 F.

517286100

Unavailable

16

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

17

Loctite 271, 10 ml

293800005

$26.99

18

Was 409901800 Tubing (13 mm)

219704400

$14.49

19

Tie-Rap 180 mm

414115200

$0.11

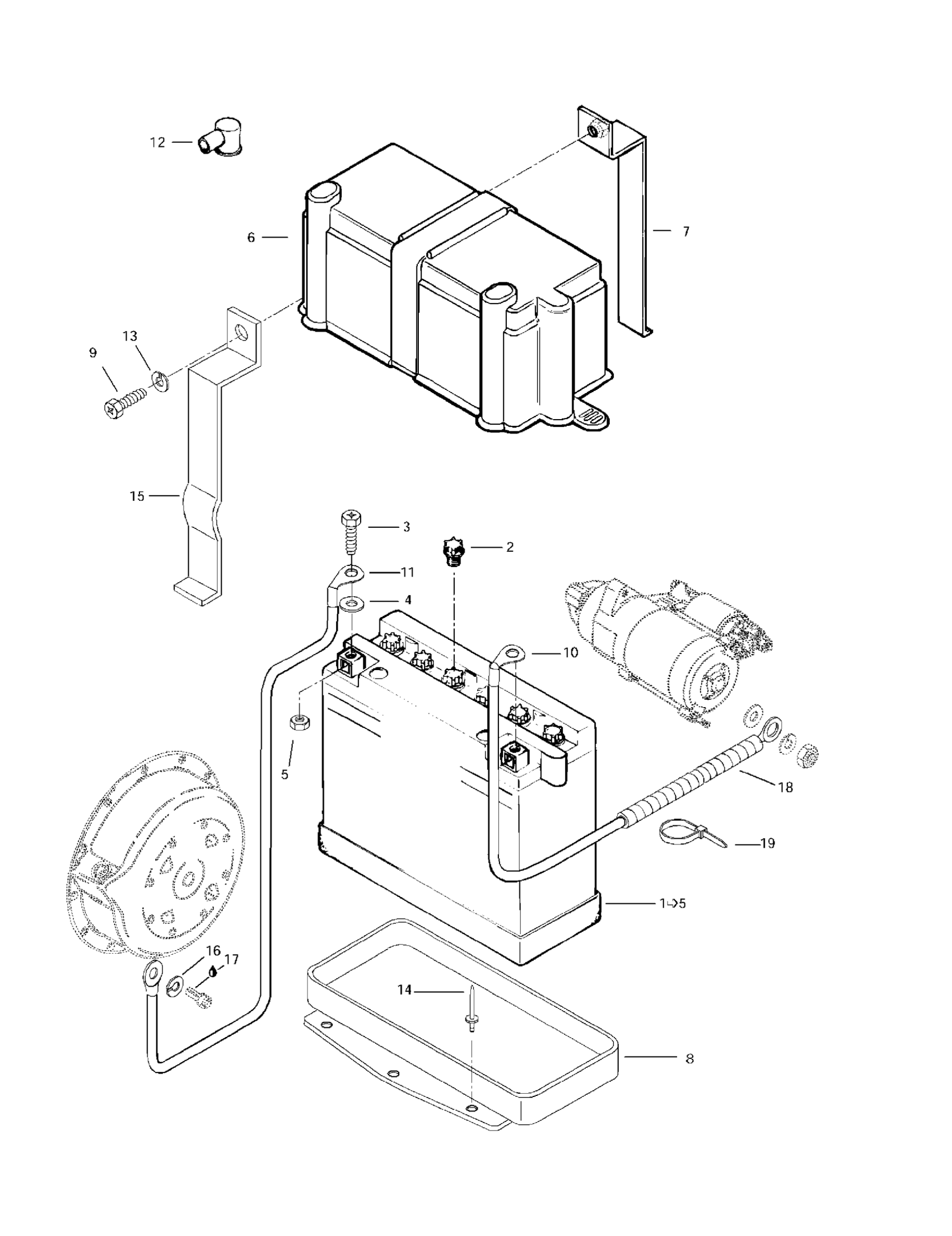

Ski-Doo Formula 500 Deluxe, 1997 10- Electrical System Diagram

Battery | Includes 4 - 8.

Battery Cap

Hex. Screw M6 X 16

FLAT WASHER - Call your local BRP dealership

Hex. Nut M6

Battery Cover

Steel Strip | Formula Deluxe 380 F.

Battery Seat | Formula Deluxe 380 F.

Hex. Screw M5 X 20

Current Wire | Formula DLX 500 LC.

Ground Wire | Formula DLX 380. Formula DLX 500.

Protection Cap

Lock Washer 5 mm | Europe

Pop Rivet 3/16"

Steel Strip | Formula Deluxe 380 F.

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

Loctite 271, 10 ml

Was 409901800 Tubing (13 mm)

Tie-Rap 180 mm
