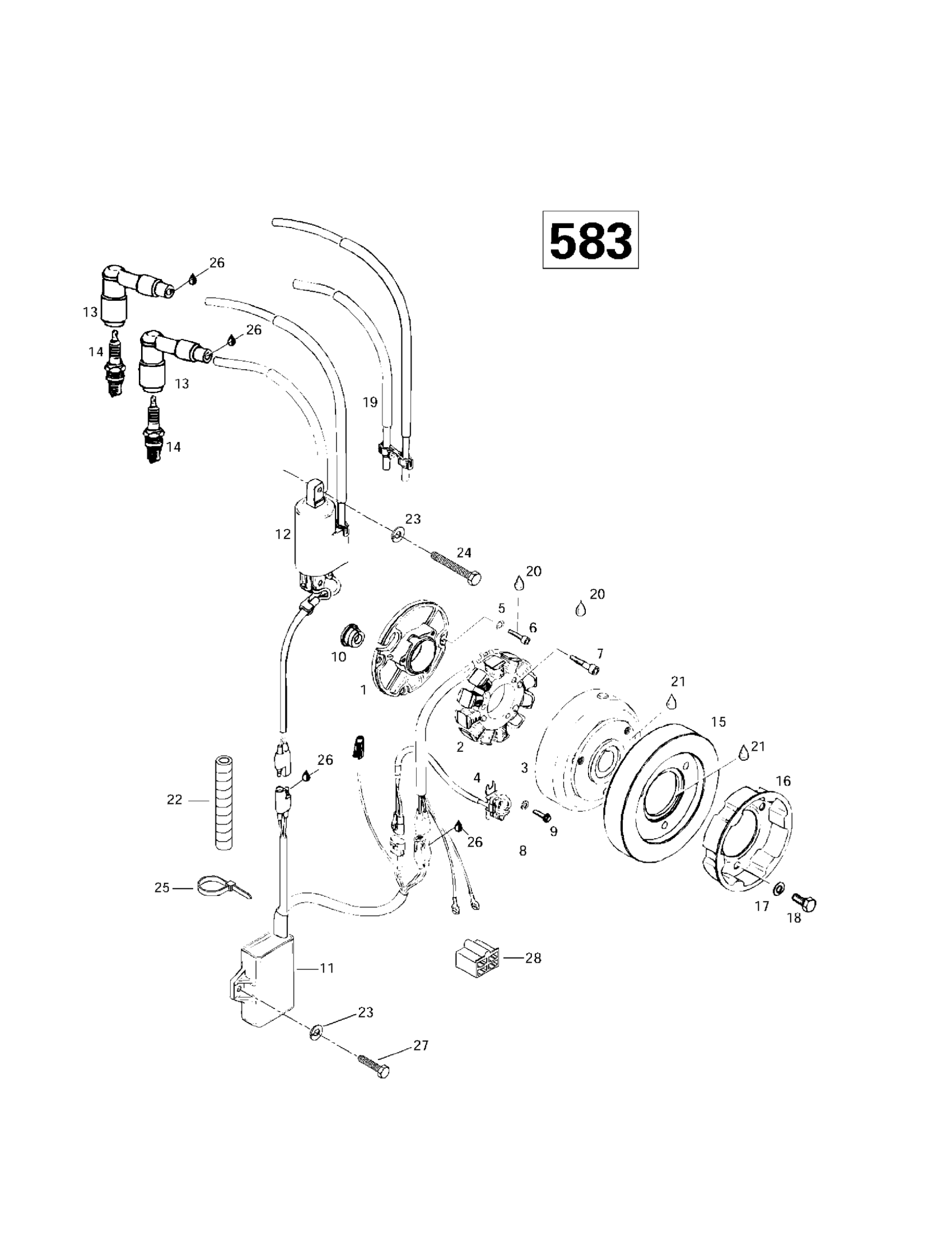

Ski-Doo Formula 500 Deluxe, 1997 03- Magneto 12V 220W (583) Diagram
#
Description
Price
1
Armature Plate | Formula Deluxe 583.
420810262
Unavailable
2
Magneto Ass'y 12V 220W | Includes 2 - 4. Formula Z. Formula 583.
410918600
Unavailable
2
Stator Ass'y | Formula 500. Formula 500 Deluxe.
410919000
Unavailable
3
Magneto Flywheel | Formula Z. Formula 583.
410919100
Unavailable
4
Pick Up Ass'y | Formula 500. Formula 500 Deluxe.
410916700
Unavailable
5
Lock Washer
420945750
Unavailable
6
SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership
420941540
Unavailable
7
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
420840887
Unavailable
8
WASHER - Call your local BRP dealership
420827800
Unavailable
9
Taptite Screw M5 X 16
420941928
Unavailable
10
Cable Crommet | Touring E. Touring E LT (2). Touring LE.
420960288
Unavailable
11
Amplifier-Box | Skandic Wide Track LC.
410918900
Unavailable
12
Ignition Coil | Skandic Wide Track LC.
410920500
Unavailable
13
SPARK PLUG PROTECTOR - Call your local BRP dealership | Skandic Wide Track LC.
414569200
Unavailable
15
Flywheel | Formula Deluxe 583.
420866759
Unavailable
16
Starting Pulley | Formula Deluxe 700.
420852411
Unavailable
19
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
22
Tubing Helical | Formula 500. Formula 500 Deluxe.
410904000
Unavailable
26
Lithium Grease, 400 gr | Formula Z. Formula 583.
413701600
Unavailable
27
Screw Hex. M6 x 16 | Formula Z. Formula 583.
222061645
Unavailable
28
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
