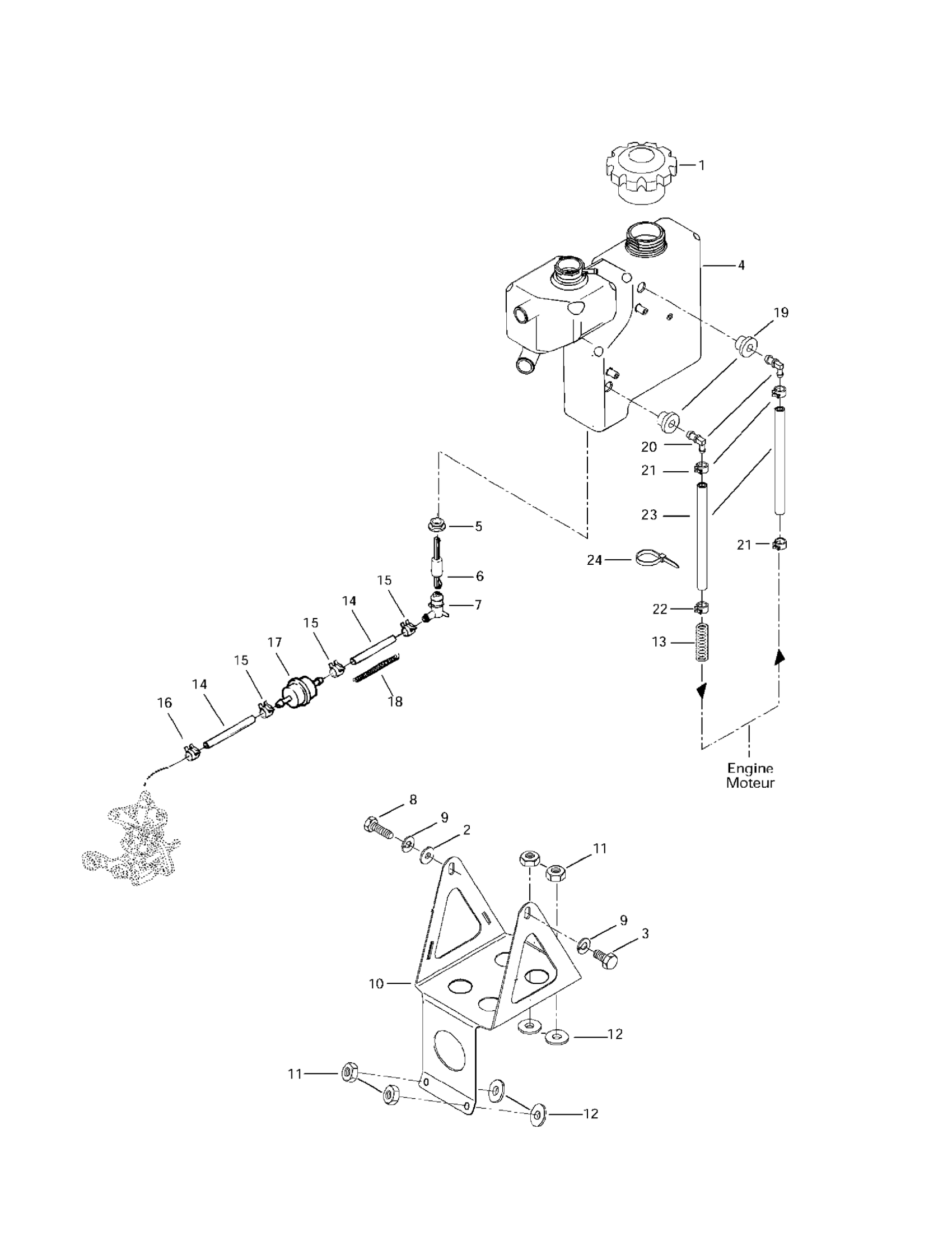

Ski-Doo Formula 500 Deluxe, 1997 02- Oil Tank And Support Diagram

#

Description
Price

1

CAP - Call your local BRP dealership

519000044

Unavailable

2

Flat Washer

224061121

$0.53

3

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

4

Coolant Tank

572076900

Unavailable

5

Insulating Ring

570023000

$5.61

6

Float

414681900

Unavailable

7

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

8

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

9

Lock Washer M6, Black

234161471

$0.53

10

Oil Reservoir Support

517278900

Unavailable

11

Elastic Stop Nut M6

232561414

$0.55

12

Rubber Spacer

414454400

Unavailable

13

Spring

415044100

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

Spring Clamp

414415200

$0.88

16

Spring Clamp

414420700

$0.72

17

Filter

414536500

$4.02

18

SPRING_COMPRESSION - Call your local BRP dealership

414940300

Unavailable

19

Grommet | Europe

707800347

$10.49

20

Elbow Fitting

414523600

$4.86

21

Spring Clamp

414655700

$0.72

22

SPRING CLIP - Call your local BRP dealership

408801100

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Tie-Rap 180 mm

414115200

$0.11
