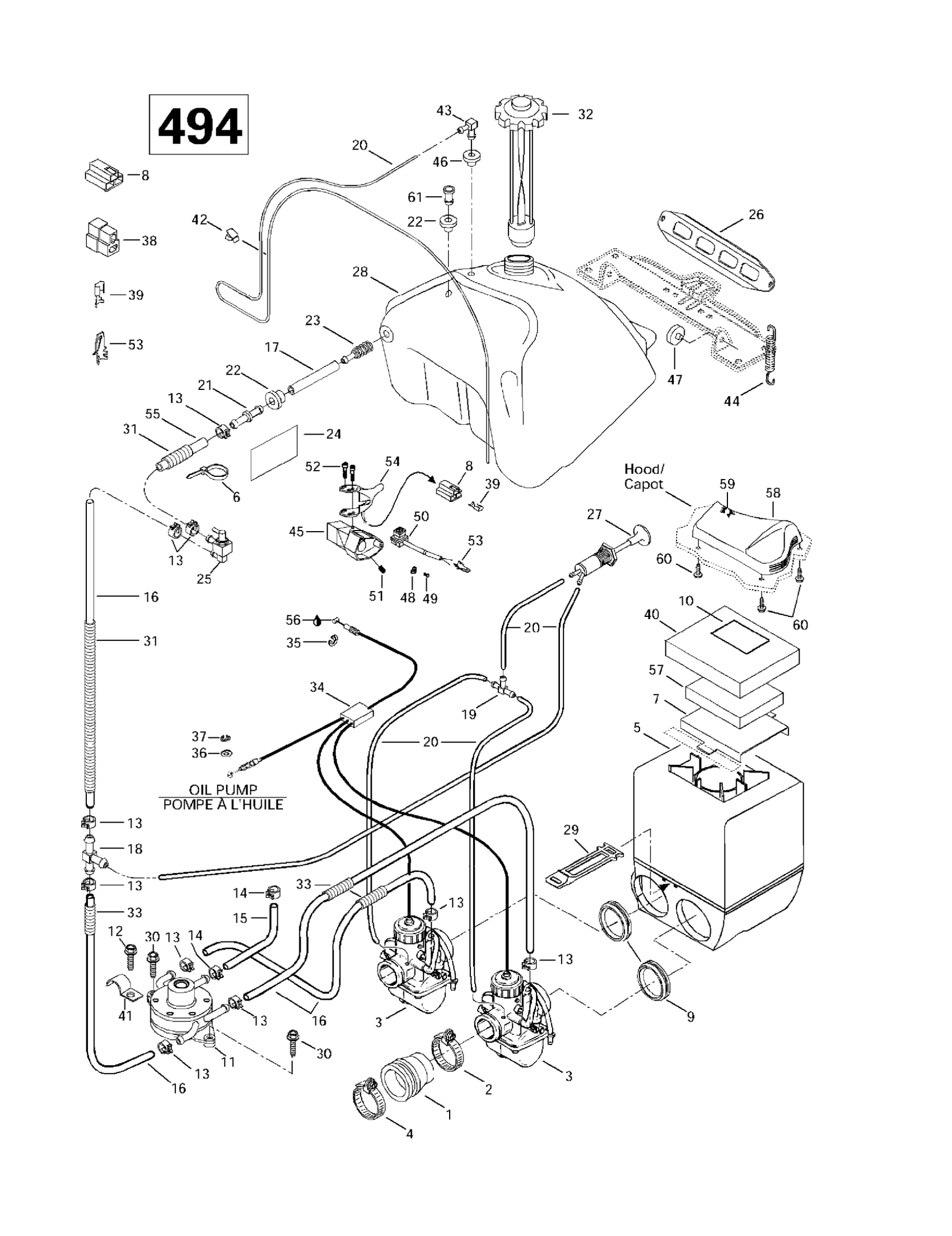

Ski-Doo Formula 500 Deluxe, 1997 02- Fuel System (494) Diagram

#

Description
Price

1

Adaptor Caburetor (38 mm)

570048100

Unavailable

2

Clamp (50 mm)

415038400

Unavailable

3

Carburetor VM 38-345 (PTO) | Includes 1 - 32. Formula 500. Formula 500 Deluxe.

403130000

Unavailable

Carburetor VM 38-346(MAG) | Formula 500. Formula 500 Deluxe.

403130100

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | Formula 500. Formula 500 Deluxe.

580638605

Unavailable

6

Tie-Rap 180 mm

414115200

$0.11

7

Grill Intake

517283900

Unavailable

8

Female Terminal Housing (3 circuits)

409008500

Unavailable

9

Intake Adaptor VM 38

570048900

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump

403900900

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

$1.67

13

Spring Clamp

414554800

$0.88

14

Spring Clamp

414415200

$0.88

15

Hose

219704549

$50.99

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.69

19

T-Fitting

414222400

$1.69

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

Male Connector

414518500

$4.23

22

Grommet

570045500

$6.69

23

Fuel Filter

414865700

$10.99

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

SHUT OFF VALVE - Call your local BRP dealership

414935900

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$34.99

28

Fuel Tank | Formula 500. Formula 500 Deluxe.

572093000

Unavailable

29

LATCH - Call your local BRP dealership

570069700

Unavailable

30

Hexagonal Head Screw

210262050

$2.11

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Fuel Tank Cap

572161200

$38.99

33

Was 409901800 Tubing (13 mm)

219704400

$14.49

34

Throttle Cable and Housing (38 mm)

414968801

Unavailable

35

Circlip

414274500

$0.90

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Circlip

414753500

$0.71

38

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

39

Female Terminal PACKARD

561503200

Unavailable

40

Exterior Foam | Formula 500. Formula 500 Deluxe.

415012700

Unavailable

41

Open Clamp

414176000

$1.99

42

Clip

414227300

$1.67

43

Male Connector

414814100

$2.22

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

46

Grommet

709200285

$9.69

47

Grommet | Europe

707800347

$10.49

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

51

Socket Set Screw M8 X 10

414440800

$4.12

52

Flange Screw

732601143

$4.12

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Handle Ass'y

512059348

$93.99

55

Hose Formed | Formula 500. Formula 500 Deluxe.

415058400

Unavailable

56

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

57

Air Filter

415014800

$12.49

58

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

59

Air Filter

414972600

$63.99

60

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

61

Cap

572092900

$20.49
