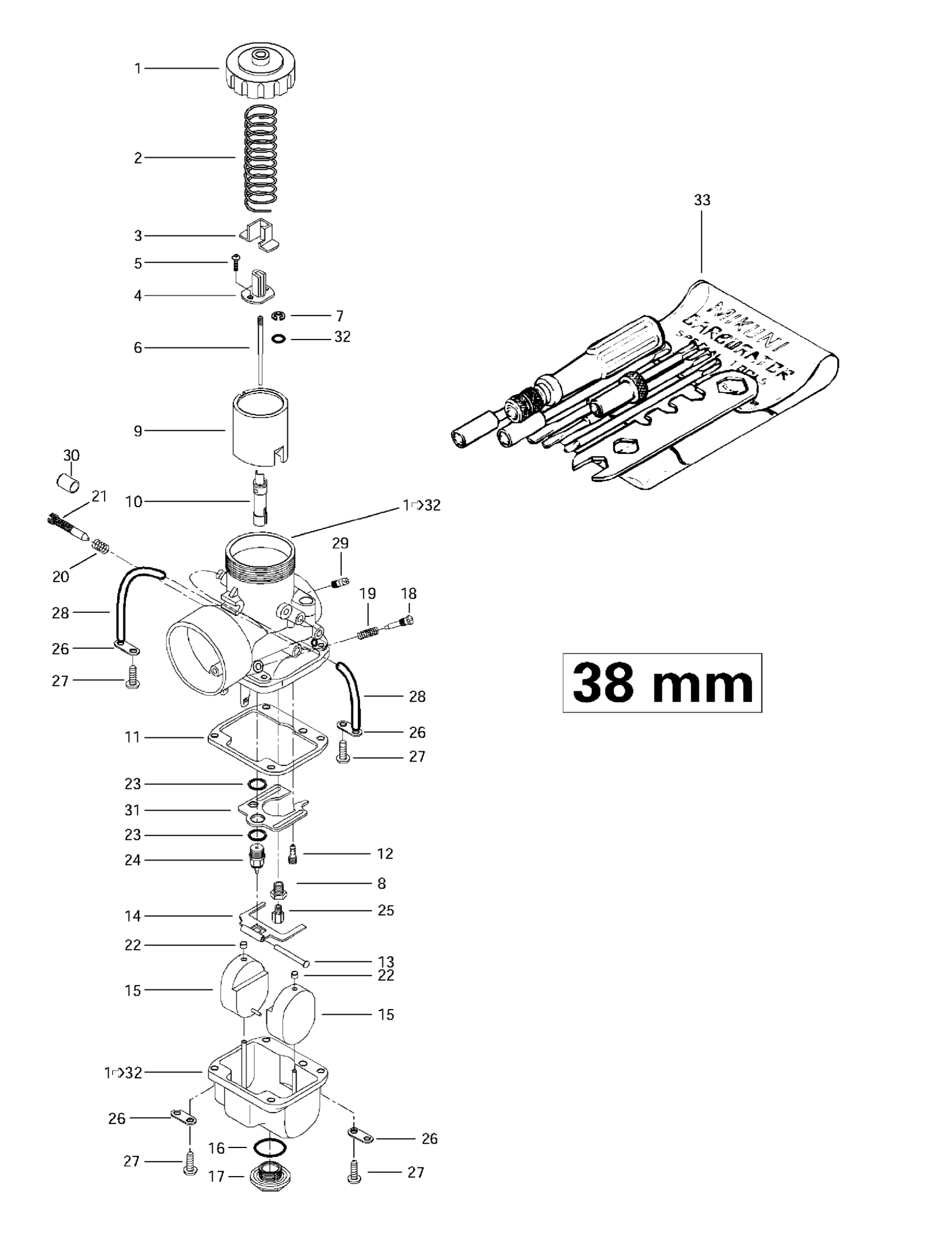

Ski-Doo Formula 500 Deluxe, 1997 02- Carburetors (38 mm) Diagram

#

Description
Price

1

Carburetor VM 38-345 (PTO) | Includes 1 - 32. Formula 500. Formula 500 Deluxe.

403130000

Unavailable

Carburetor VM 38-346(MAG) | Formula 500. Formula 500 Deluxe.

403130100

Unavailable

1

Carburetor VM 38-349 (PTO) | Includes 1 - 32. Formula 583.

403130400

Unavailable

Carburetor VM 38-350 (MAG) | Formula 583.

403130500

Unavailable

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

Jet Needle J8 6FEY1 | Summit 583.

404156800

Unavailable

Jet Needle J8 6BGY15 | Formula 583.

404157500

Unavailable

7

E-Ring

404152400

$7.27

8

Guide Screw

404105500

$31.99

9

Piston Valve CA 2.5

404131300

Unavailable

10

Needle Jet NJ-480-P3 | Formula 500. Formula 500 Deluxe.

404155000

Unavailable

Needle Jet NJ-480-Q6 | Summit 500.

404157600

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

13

Lever Pin

404103300

$6.27

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.14

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Cap

404105800

$6.38

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

Main Jet MJ 310 (MAG) | Skandic 600.

404107800

$8.36

Main Jet MJ 280

404100500

$9.06

Main Jet 290 This part replaces 404162139.

404101100

$11.13

Main Jet MJ 270 | Formula III 700 R.

404100400

$5.21

26

PLATE - Call your local BRP dealership

404103000

Unavailable

27

Screw With Lock Washer

404102000

$3.18

28

Hose | Grand Touring SE.

404109800

Unavailable

29

Nipple

404153400

$12.16

30

Cap | Formula III 700 R.

404152500

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Packing

404117000

$3.29

33

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

34

High Altitude Kit, (Not Shown) | Formula 500. Formula 500 Deluxe.

861756500

Unavailable

High Altitude Kit (Not Shown) | Formula 583.

861756400

Unavailable
