Description

Price

1

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420931185

Unavailable

2

Cylinder With Sleeve Ass'y | Formula Z 583. Formula 583 Deluxe.

420923068

Unavailable

3

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

4

Sealant, 100 gr

413707100

Unavailable

5

Dow Corning 111, 150 g

413707000

$59.99

6

Exhaust Valve | Formula Deluxe 583.

420854310

Unavailable

7

O-Ring

420430110

$4.44

8

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420230256

Unavailable

9

Valve Rod Housing | Formula Deluxe 583.

420253275

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

Socket Head Screw M6 x 16

420241237

$2.22

12

Bellow

420260721

$51.99

13

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

14

Exhaust Valve This part replaces 290253257.

420854449

$35.99

15

Clamp 77 mm | Formula Deluxe 583.

420251920

Unavailable

16

SPRING - Call your local BRP dealership

420239948

Unavailable

17

Valve Cover

420911552

$38.99

18

Adjuster Screw

420241221

$14.22

19

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

20

Hex. Screw M8 x 90 | Formula Deluxe 583.

420440366

Unavailable

21

O-Ring This part replaces 420850540.

293300026

$3.39

22

RUBBER GASKET - Call your local BRP dealership | Formula Deluxe 583.

420850560

Unavailable

23

Cylinder head, (Viper Red) | Formula 500. Formula 583 Deluxe. .

420923053

Unavailable

24

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

25

Hex. Screw M8 X 56.5

420941627

$8.57

26

Thermostat This part replaces 414834100.

420922519

$63.99

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

Stud M6 x 18 | Formula Z 583. Formula 583 Deluxe.

420941160

Unavailable

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Nut M6

232061414

$0.53

32

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

33

Gasket

420850338

$11.60

34

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

35

Gasket

420850552

$8.85

36

Heat Deflector | Formula Z. Formula 583.

420975777

Unavailable

37

Exhaust Manifold | Formula Deluxe 583.

420973989

Unavailable

38

Lock Washer M6, Black

234161471

$0.53

39

Socket Head Screw M6 X 25

205062544

$1.15

40

Gasket Set | Formula Deluxe 583.

420997805

Unavailable

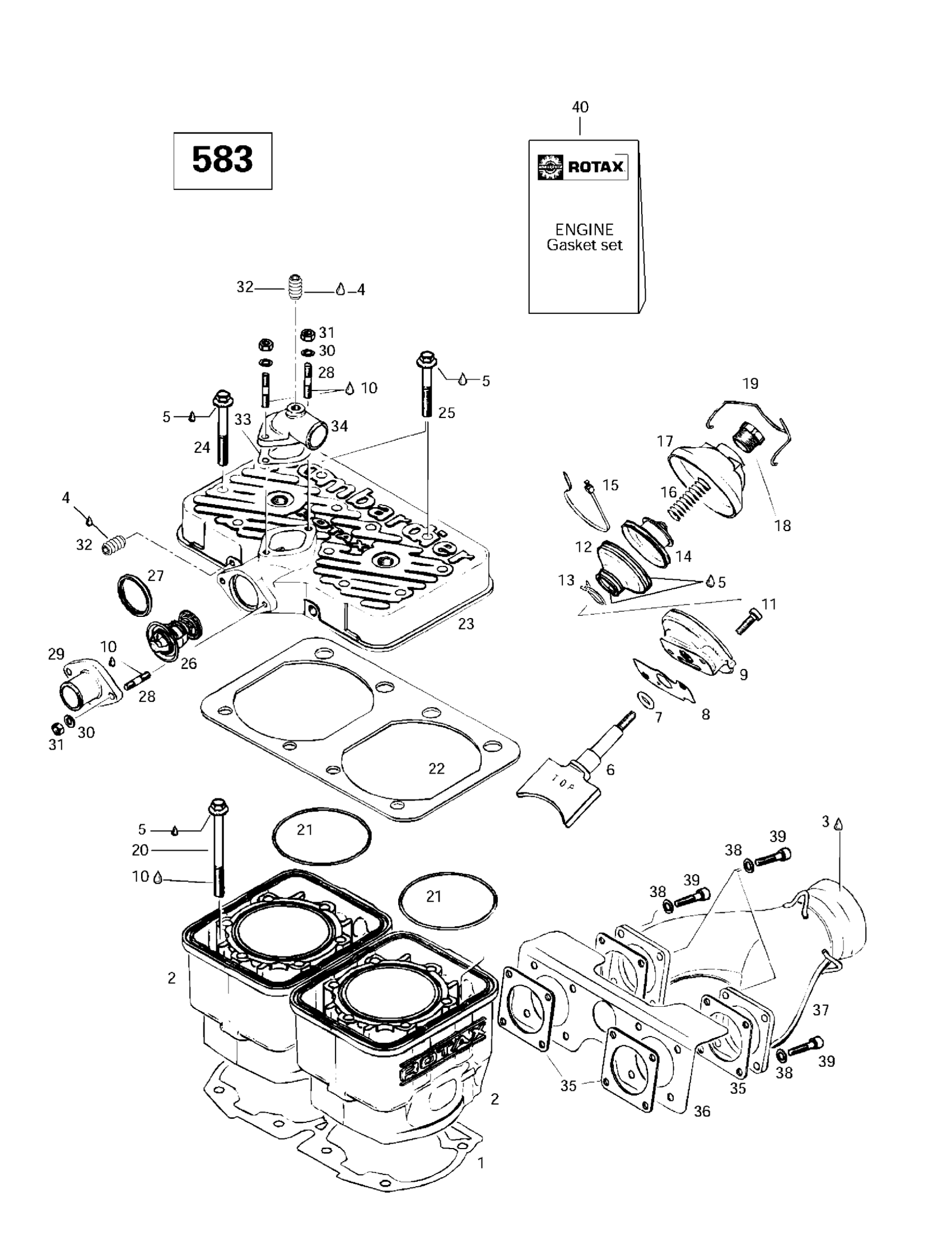

Ski-Doo Formula 500 Deluxe, 1997 01- Cylinder, Exhaust Manifold (583) Diagram

GASKET - Call your local BRP dealership | Formula Deluxe 583.

Cylinder With Sleeve Ass'y | Formula Z 583. Formula 583 Deluxe.

Sealant, Loctite, 80 ml | DS 650

Sealant, 100 gr

Dow Corning 111, 150 g

Exhaust Valve | Formula Deluxe 583.

O-Ring

GASKET - Call your local BRP dealership | Formula Deluxe 583.

Valve Rod Housing | Formula Deluxe 583.

Loctite 243, 10 ml

Socket Head Screw M6 x 16

Bellow

SPRING CLAMP - Call your local BRP dealership

Exhaust Valve This part replaces 290253257.

Clamp 77 mm | Formula Deluxe 583.

SPRING - Call your local BRP dealership

Valve Cover

Adjuster Screw

SPRING CLIP - Call your local BRP dealership

Hex. Screw M8 x 90 | Formula Deluxe 583.

O-Ring This part replaces 420850540.

RUBBER GASKET - Call your local BRP dealership | Formula Deluxe 583.

Cylinder head, (Viper Red) | Formula 500. Formula 583 Deluxe. .

Hex. Collar Screw M8 X 65 This part replaces 420841306.

Hex. Screw M8 X 56.5

Thermostat This part replaces 414834100.

SEALING RING - Call your local BRP dealership

Stud M6 x 18 | Formula Z 583. Formula 583 Deluxe.

BENT OUTLET SOCKET - Call your local BRP dealership

WASHER-LOCK DIN.128 - Call your local BRP dealership

Hex. Nut M6

PLUG SCREW - Call your local BRP dealership

Gasket

BENT OUTLET SOCKET - Call your local BRP dealership

Gasket

Heat Deflector | Formula Z. Formula 583.

Exhaust Manifold | Formula Deluxe 583.

Lock Washer M6, Black

Socket Head Screw M6 X 25

Gasket Set | Formula Deluxe 583.
