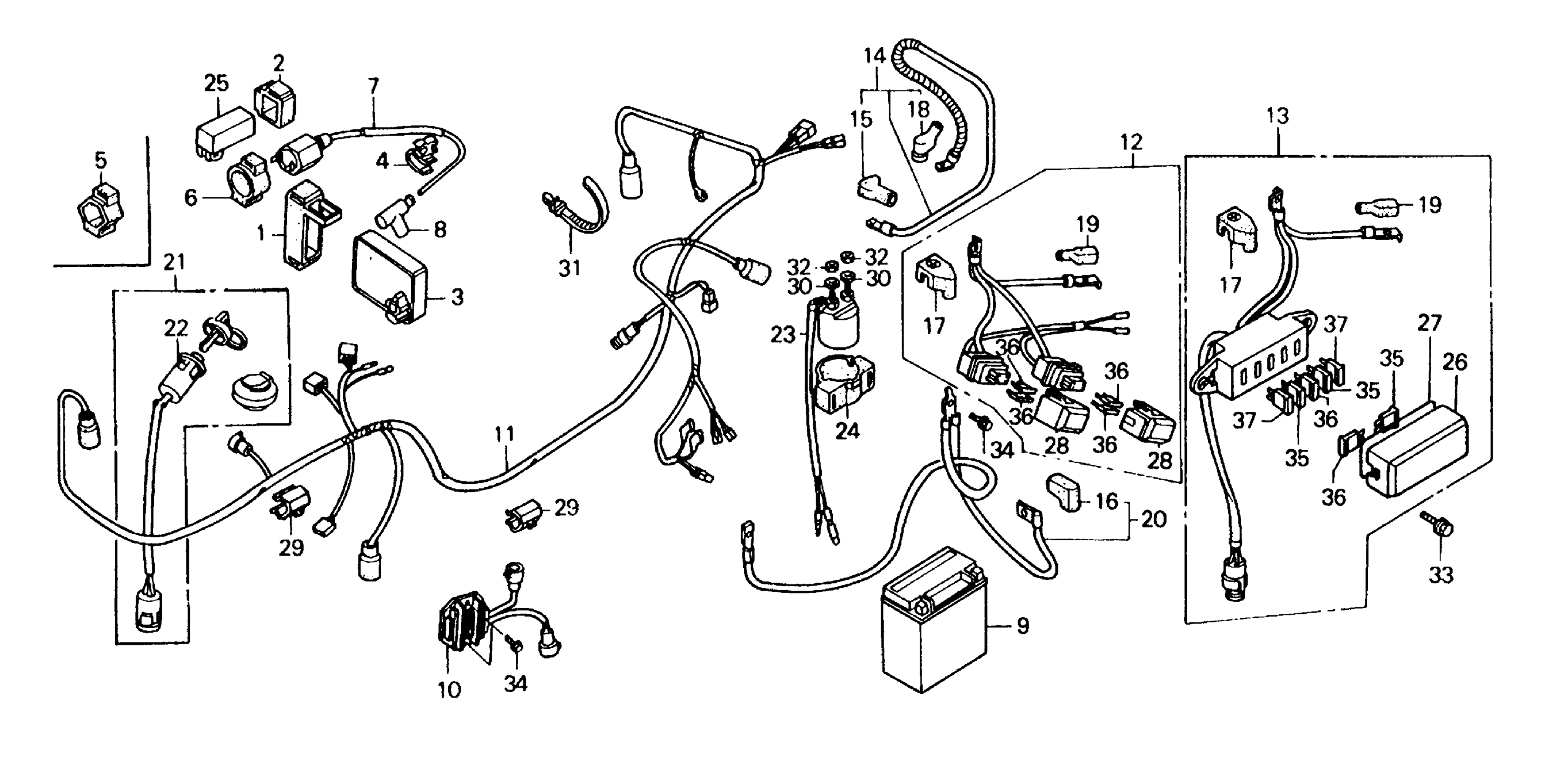

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER, IGNITION CONTROL MODULE

30401-HE0-000

Unavailable

2

RUBBER, POWER SUPPLY

30401-KR8-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-HE0-018

Unavailable

6

SUSPENSION, IGNITION COIL

30506-KV3-771

$11.89

7

COIL, IGNITION

30510-KJ2-405

$86.48

7

COIL, IGNITION This part replaces 30510-HE0-670.

30510-KJ2-405

$86.48

8

CAP ASSY., NOISE SUPPRESSOR

30700-VM0-013

Unavailable

9

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HA7-675.

31500-HC4-726AH

Unavailable

9

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HA7-676.

31500-HC4-726AH

Unavailable

9

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HA7-678.

31500-HC4-726AH

Unavailable

9

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

10

RECTIFIER ASSY., REGULATOR

31600-HE0-008

Unavailable

11

WIRE HARNESS (NOT AVAILABLE)

32100-HE0-670

Unavailable

13

CABLE, BATTERY RELAY

32401-HE0-670

Unavailable

14

CABLE, STARTER MOTOR

32402-HE0-000

Unavailable

15

COVER A, STARTER MAGNETIC

32404-HE0-000

Unavailable

16

COVER B, BATTERY TERMINAL

32412-MM9-000

Unavailable

17

COVER, BATTERY TERMINAL

32413-HE0-300

Unavailable

18

COVER, TERMINAL

32413-VM0-000

Unavailable

19

COVER, MAGNETIC SWITCH TERMINAL This part replaces 32415-HA7-670.

32416-HB6-000

Unavailable

20

CABLE, BATTERY GROUND

32601-HE0-000

Unavailable

21

LOCK SET

35010-HE0-670

Unavailable

22

SWITCH, COMBINATION

35100-HE0-670

Unavailable

23

SWITCH ASSY., STARTING MAGNETIC

35850-HB3-771

Unavailable

23

SWITCH ASSY., STARTING MAGNETIC This part replaces 35850-HE0-000.

35850-HB3-771

Unavailable

24

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

25

CHECK UNIT, PILOT LAMP (NOT AVAILABLE)

37645-HE0-008

Unavailable

26

COVER, FUSE CASE

38224-HE0-671

Unavailable

27

GASKET, FUSE CASE

38225-HA7-671

Unavailable

29

CLIP B, BRAKE PIPE

50303-HE0-003

Unavailable

30

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

31

CLIP, WIRE HARNESS

90617-750-003

$3.85

32

NUT, HEX. (6MM)

94002-06390-0S

$1.49

33

BOLT, FLANGE (6X8)

95701-06008-08

$1.55

33

BOLT, FLANGE (6X8) This part replaces 95701-06008-18.

95701-06008-08

$1.55

34

BOLT, FLANGE (6X12) (NOT AVAILABLE)

95701-06012-17

Unavailable

35

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

35

BOLT, FLANGE (6X16) This part replaces 96500-06016-00.

96300-06016-00

$1.49

36

FUSE, BLADE (10A)

98200-31000

$1.49

37

FUSE, BLADE (15A)

98200-31500

$1.49

38

FUSE, BLADE (20A)

98200-32000

$1.49
