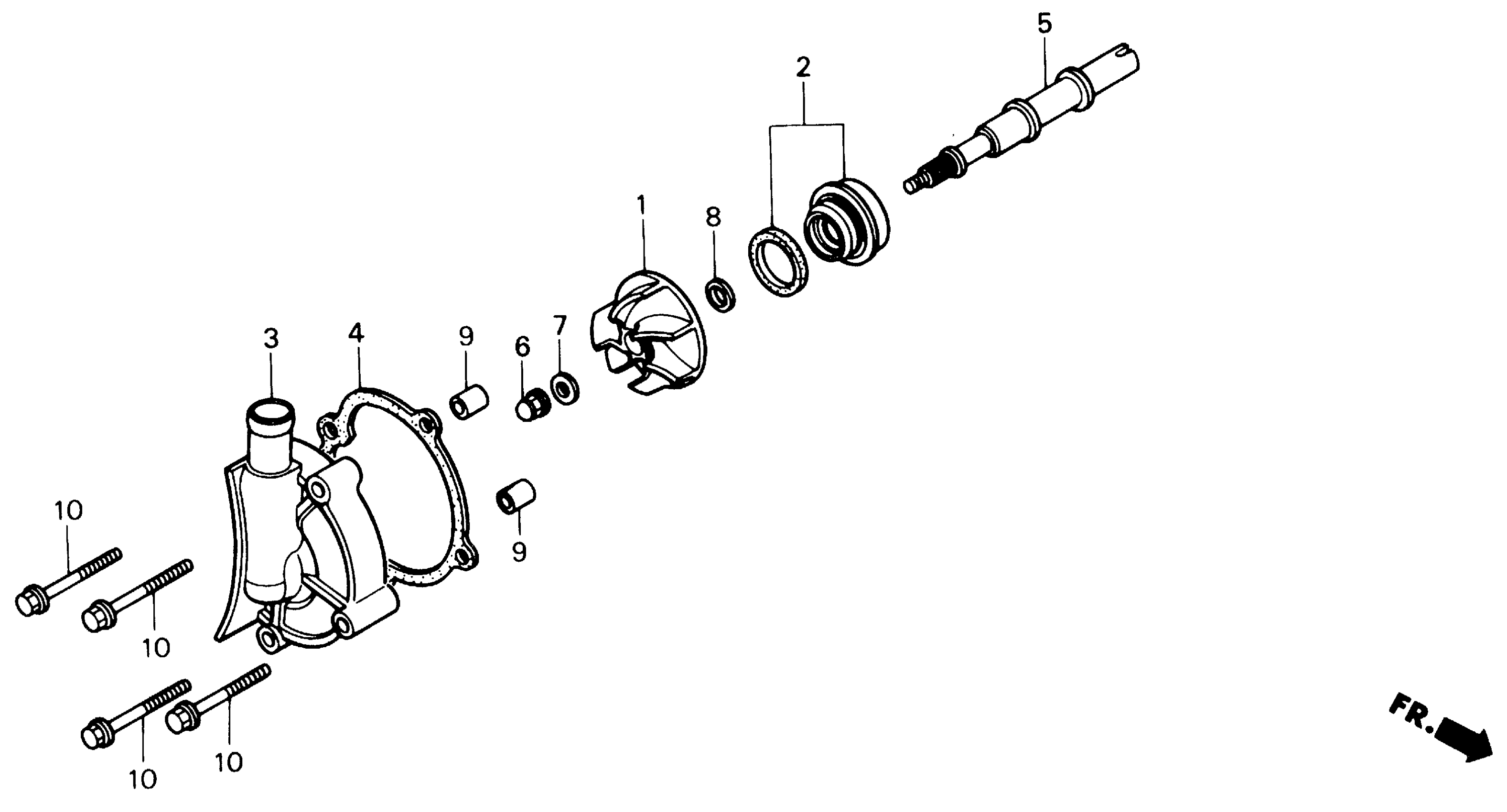

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-KA3-710

Unavailable

SEAL, MECHANICAL This part replaces 19217-PA5-003.

19217-PH9-013

Unavailable

COVER, WATER PUMP

19221-HE0-000

Unavailable

GASKET, WATER PUMP

19229-HE0-P00

Unavailable

GASKET, WATER PUMP This part replaces 19229-HE0-000.

19229-HE0-P00

Unavailable

GASKET, WATER PUMP This part replaces 19229-HE0-010.

19229-HE0-P00

Unavailable

SHAFT, WATER PUMP

19241-HE0-000

Unavailable

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER (8X13)

90454-KA4-000

$3.08

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
