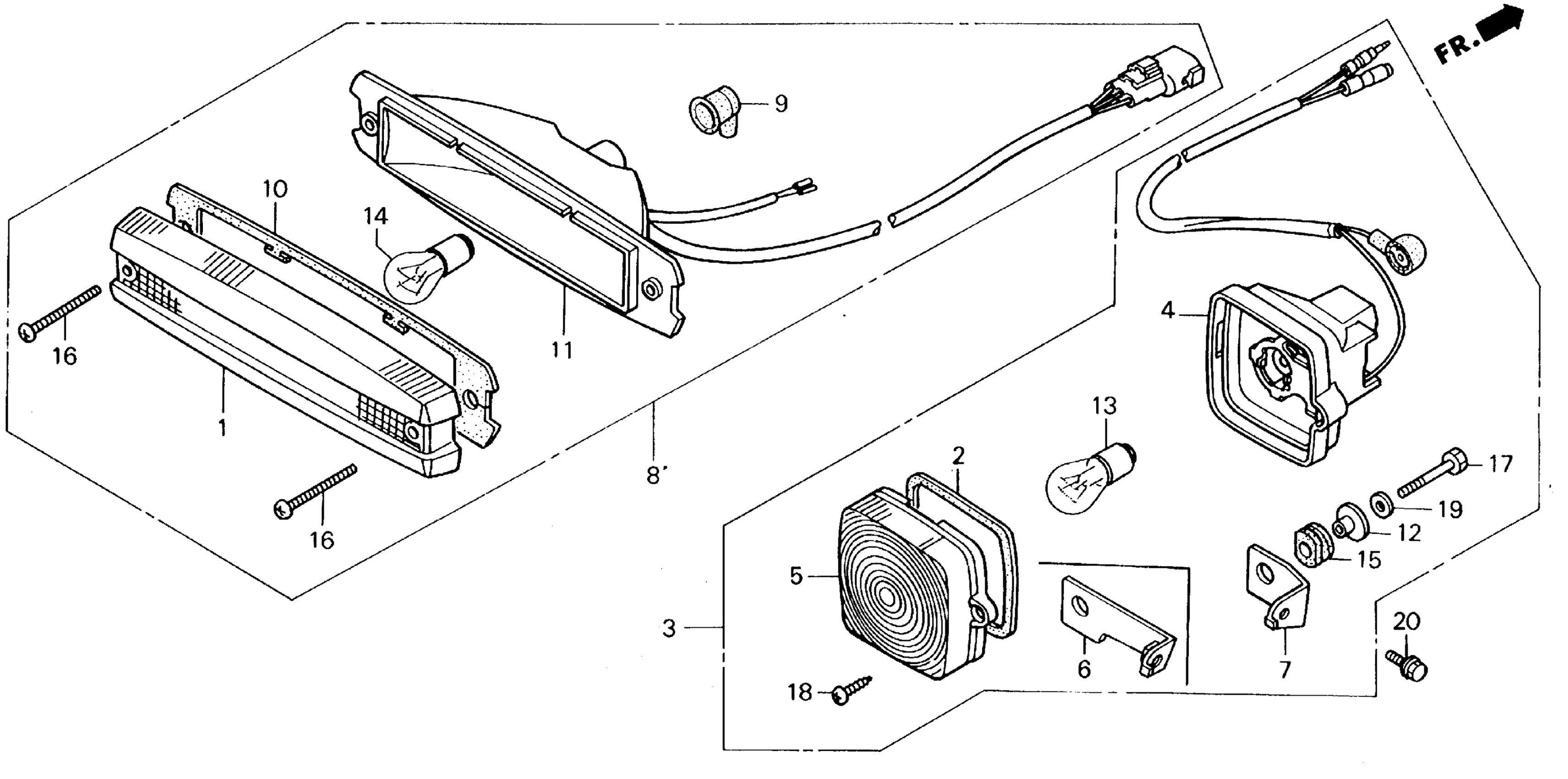

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 TAILLIGHT Diagram
#
Description
Price
1
LENS
33302-HE0-000
Unavailable
3
LIGHT ASSY., REVERSE
33500-HE0-670
Unavailable
4
BASE, REVERSE
33501-HE0-670
Unavailable
5
LENS, REVERSE LIGHT
33502-HE0-000
Unavailable
7
STAY, REVERSE LIGHT
33507-HE0-670
Unavailable
8
TAILLIGHT ASSY., & STOP (12V 32/3CP)
33700-HE0-000
Unavailable
9
COVER, SOCKET
33702-HE0-000
Unavailable
10
GASKET
33703-HE0-000
Unavailable
11
HOUSING
33710-HE0-000
Unavailable
13
BULB, TURN SIGNAL (12V21CP)
34905-KN8-003
Unavailable
16
SCREW, PAN (4X50)
90121-HE0-000
Unavailable
18
SCREW, TAPPING (4X16)
93901-14480
Unavailable
20
BOLT, FLANGE (6X14)
96300-06014-07
Unavailable
20
BOLT, FLANGE (6X14) This part replaces 96500-06014-07.
96300-06014-07
Unavailable
