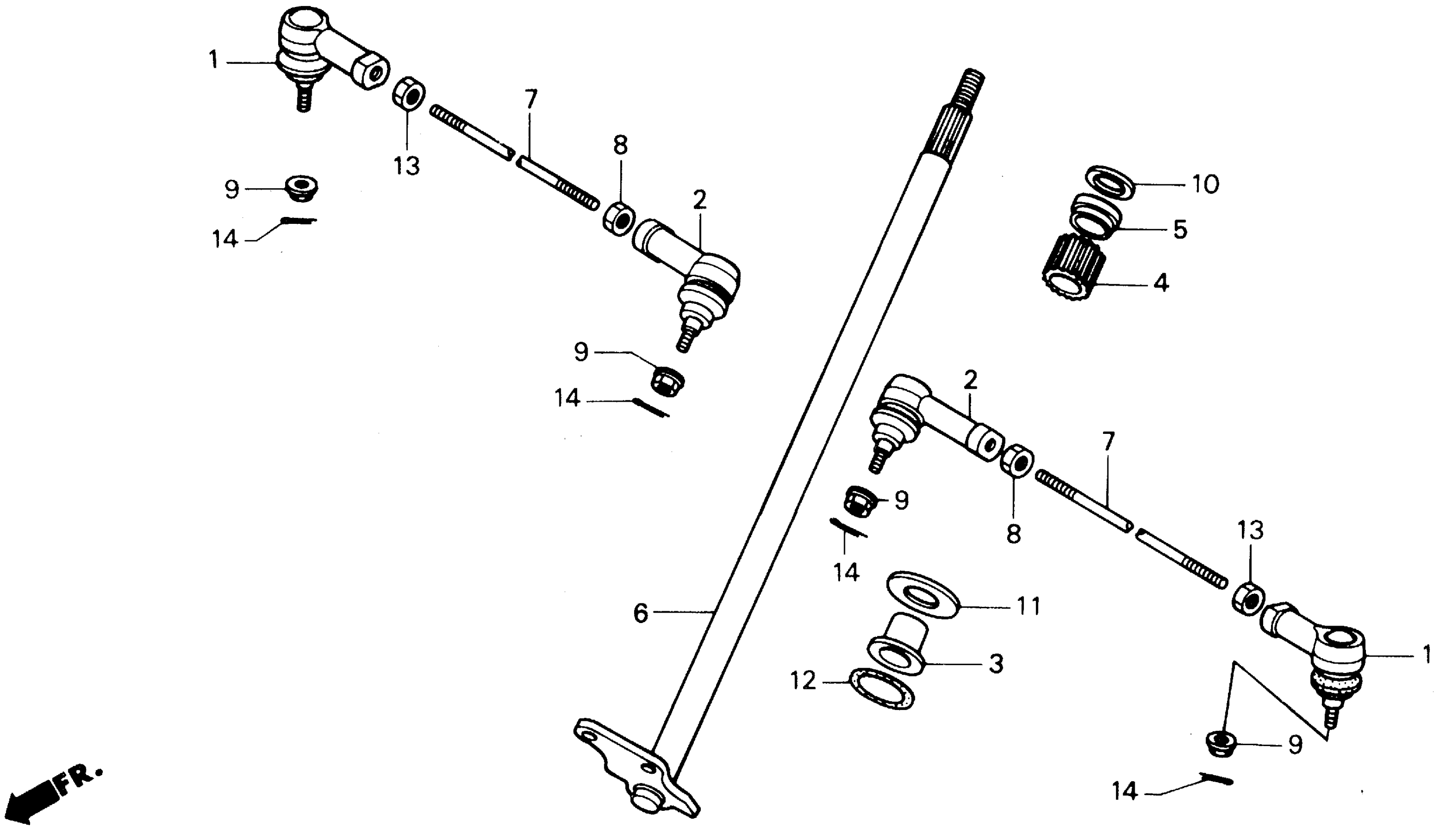

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 STEERING SHAFT Diagram

#

Description
Price

1

END, R. TIE ROD (RIGHT HAND THREAD) This part replaces 53157-HC4-003.

53157-HP0-A01

$11.90

1

END, R. TIE ROD (RIGHT HAND THREAD) This part replaces 53157-HM5-A11.

53157-HP0-A01

$11.90

2

END, L. TIE ROD (LEFT HAND THREAD) This part replaces 53158-HC4-003.

53158-HP5-003

$11.90

2

END, L. TIE ROD (LEFT HAND THREAD) This part replaces 53158-HM5-A11.

53158-HP5-003

$11.90

2

END, L. TIE ROD (LEFT HAND THREAD) This part replaces 53158-HN8-003.

53158-HP5-003

$11.90

3

BUSH, STEERING SHAFT

53215-950-000

$19.49

4

BUSH This part replaces 53221-579-030.

53221-SA0-003

Unavailable

5

RING, COLUMN THRUST

53224-HE0-003

Unavailable

6

SHAFT, STEERING

53310-HE0-000

Unavailable

7

TIE ROD

53521-HE0-010

Unavailable

8

NUT, TIE ROD LOCK

53526-679-000

$3.10

9

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

10

WASHER, COLUMN

90403-VM0-000

Unavailable

11

WASHER, STEERING

90501-HE0-000

Unavailable

12

O-RING (27.7X3.5) (ARAI)

91313-PE9-003

Unavailable

13

NUT, HEX. (12MM)

94031-12280

$1.49

14

PIN, COTTER (2.0X22)

94201-20220

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

14

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

14

PIN, COTTER (2.0X35)

94201-20350

$1.49
