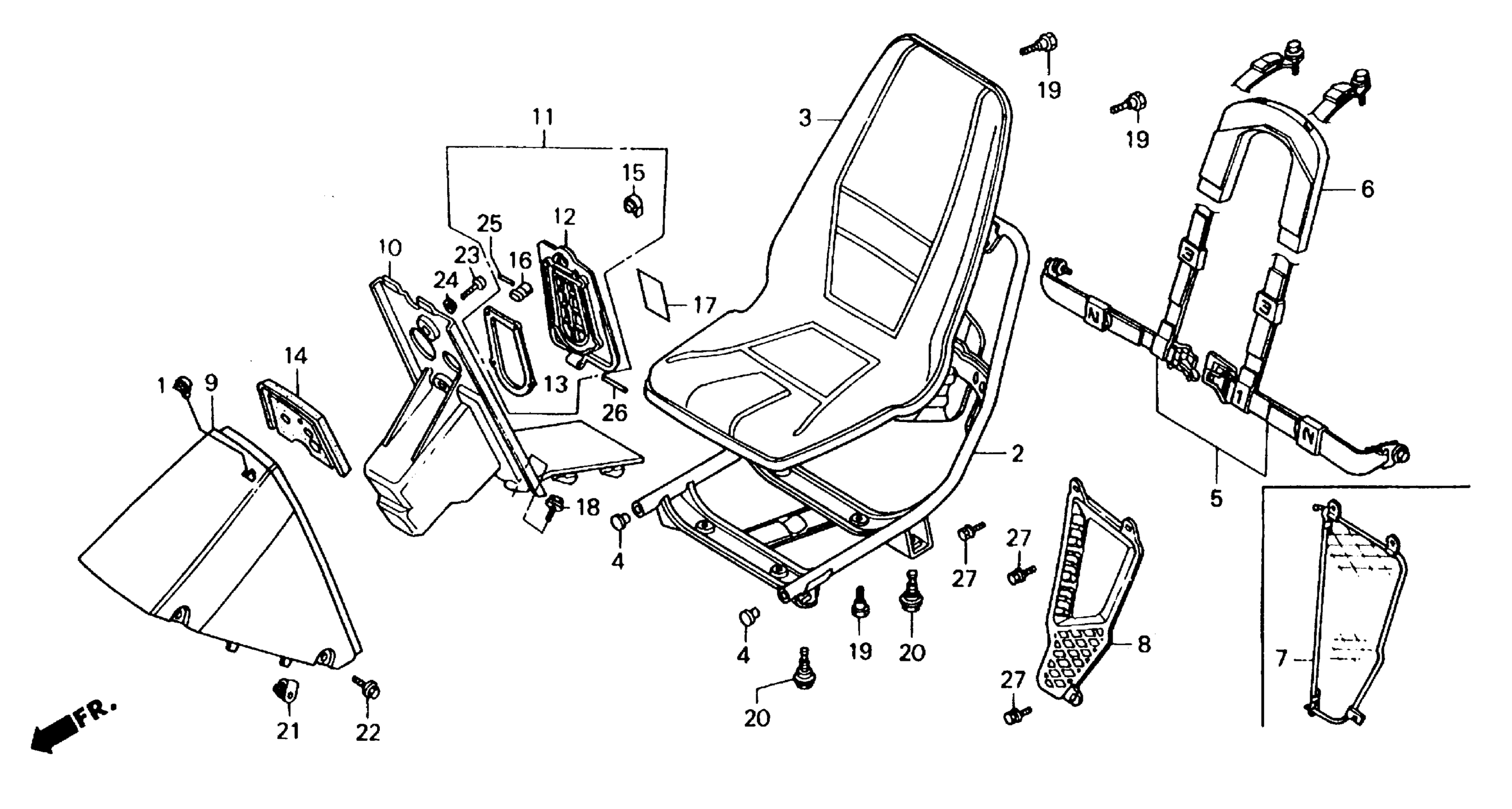

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 SEAT Diagram
#
Description
Price
1
CLIP, FLAG POLE
50323-HE0-671
Unavailable
2
FRAME, SEAT *NH105* (MAT BLACK)
77110-HE0-000ZA
Unavailable
3
SEAT *PB16L* (ARTIC BLUE)
77200-HE0-003
Unavailable
3
SEAT *PB16L* (ARTIC BLUE) This part replaces 77200-HE0-003ZA.
77200-HE0-003
Unavailable
4
CAP, FRAME END
77215-VM0-771
Unavailable
5
SEAT BELT ASSY. *PB137* (NAPIER BLUE) (NOT AVAILABLE)
77610-HE0-000ZA
Unavailable
6
PAD, SHOULDER BELT *PB16L* (ARTIC BLUE)
77615-HE0-000ZA
Unavailable
8
GUARD, SEAT SIDE
77810-HE0-670
Unavailable
9
COVER, STEERING COLUMN *NH1* (BLACK)
80201-HE0-000ZA
Unavailable
10
COVER, STEERING COLUMN CENTER *NH1* (BLACK)
80202-HE0-670ZA
Unavailable
11
LID ASSY., STEERING COLUMN CENTER *NH1* (BLACK)
80203-HE0-670ZA
Unavailable
13
SEAL, COLUMN LID
80205-HE0-000
Unavailable
14
GROMMET, HANDLEBAR (NOT AVAILABLE)
80206-HE0-000
Unavailable
15
BODY, KNOB
83507-HA8-000
Unavailable
16
STOPPER, KEY BODY
83508-965-000
Unavailable
17
LABEL, SEAT BELT OPERATION
87519-HE0-000
Unavailable
18
BOLT, FLANGE (6MM)
90112-MM9-000
Unavailable
19
BOLT, SEAT SETTING
90115-HE0-000
Unavailable
20
BOLT, SEAT SETTING
90132-HE0-000
Unavailable
21
NUT, SPRING (5MM)
90321-HE0-000
Unavailable
