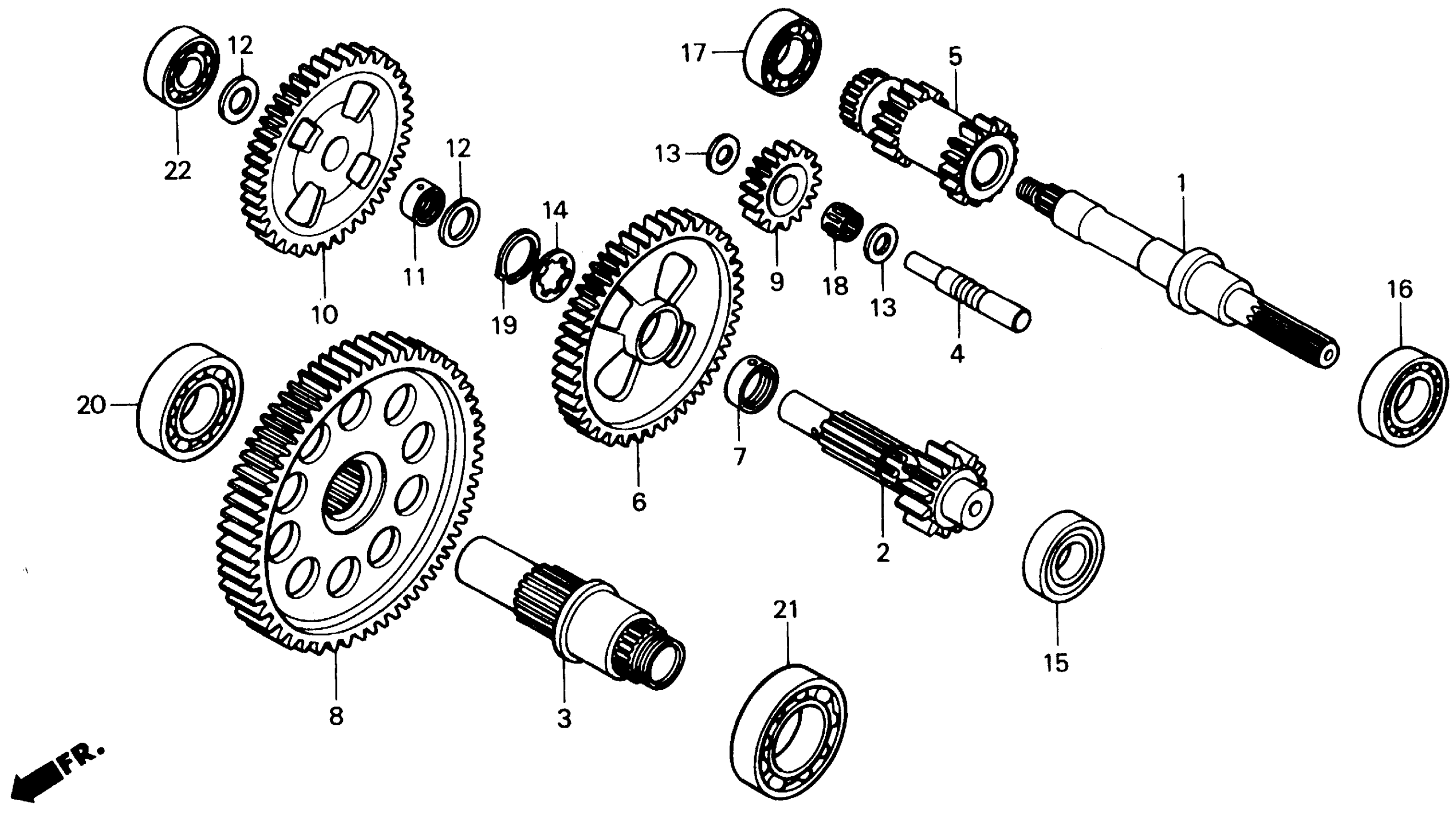

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 REDUCTION GEAR Diagram

#

Description
Price

1

SHAFT, PRIMARY

23211-HE0-000

Unavailable

2

COUNTERSHAFT

23220-HE0-000

Unavailable

3

SHAFT, FINAL

23231-HE0-000

Unavailable

4

SHAFT, REVERSE IDLE

23241-HE0-000

Unavailable

5

GEAR, PRIMARY DRIVE (18T/16T)

23410-HE0-000

Unavailable

6

GEAR, COUNTER DRIVEN (46T)

23421-HE0-000

Unavailable

7

COLLAR (28X32X11)

23422-HE0-000

Unavailable

8

GEAR, FINAL (54T) (NOT AVAILABLE)

23431-HE0-000

Unavailable

9

GEAR, REVERSE IDLE (20T)

23521-HE0-000

Unavailable

10

GEAR, REVERSE DRIVEN (41T)

23531-HE0-000

Unavailable

11

COLLAR (17X21X10)

23532-HE0-000

Unavailable

12

WASHER, THRUST (17.2MM)

90403-KE7-000

$4.02

13

WASHER, THRUST (16MM) This part replaces 90441-KM7-700.

90462-107-000

$2.11

13

WASHER, THRUST (16MM)

90462-107-000

$2.11

14

WASHER, THRUST (28MM)

90458-HE0-000

Unavailable

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-013.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-018.

91009-HC0-003

$31.43

15

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

16

BEARING, RADIAL BALL E (62/32) (TOYO)

91007-HE0-004

Unavailable

17

BEARING, RADIAL BALL (6007)

91008-HE0-000

Unavailable

18

BEARING, NEEDLE (16X22X12)

91021-HE0-000

Unavailable

19

CIRCLIP (OUTER) (28MM) (NOT AVAILABLE)

94510-28000

$1.49

20

BEARING, RADIAL BALL (6207)

96100-62070-00

$37.75

21

BEARING, RADIAL BALL (6209)

96100-62090-00

Unavailable

22

BEARING, RADIAL BALL (6303)

96120-63030-10

Unavailable
