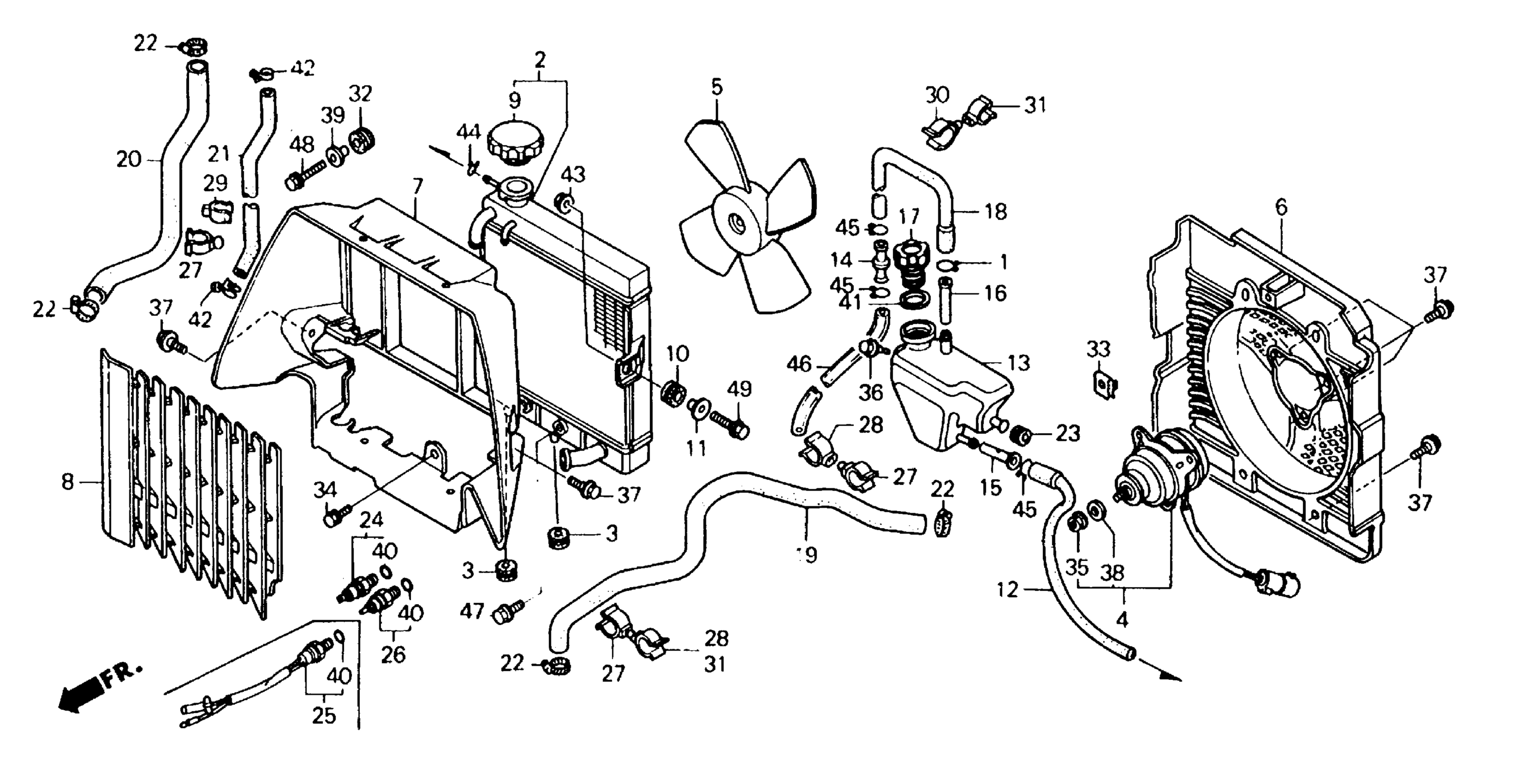

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 RADIATOR Diagram

#

Description
Price

1

CLIP, TUBE (P.C.V.)

15772-MB3-000

Unavailable

2

RADIATOR COMP This part replaces 19010-HE0-003.

19010-HE0-P00

Unavailable

3

RUBBER, RADIATOR SETTING

19012-HB9-000

$6.80

4

MOTOR ASSY., COOLING FAN This part replaces 19015-HE0-003.

19015-HE0-013

Unavailable

4

MOTOR ASSY., COOLING FAN

19015-HE0-013

Unavailable

5

FAN, COOLING

19020-HE0-003

Unavailable

6

COVER, FAN

19030-HE0-000

Unavailable

7

SHROUD, RADIATOR *R110* (WOL) (MONZA RED)

19033-HE0-000ZA

Unavailable

8

GRILLE, RADIATOR *NH1* (BLACK) (NOT AVAILABLE)

19034-HE0-670ZA

Unavailable

9

CAP, RADIATOR This part replaces 19045-MR1-771.

19045-MY3-621

$40.44

9

CAP, RADIATOR

19045-MY3-621

$40.44

10

RUBBER, RADIATOR SETTING (B)

19052-HA2-000

Unavailable

11

COLLAR, RADIATOR SETTING (B)

19056-HA2-000

$6.82

12

TUBE, BREATHER

19066-HE0-000

Unavailable

13

TANK, RADIATOR RESERVE This part replaces 19101-HE0-000.

19101-HE0-010

Unavailable

13

TANK, RADIATOR RESERVE

19101-HE0-010

Unavailable

14

JOINT, TUBE

19102-KT8-000

$6.61

15

PIPE JOINT (4.76)

19103-HE0-000

Unavailable

16

PIPE, JOINT (8.0)

19104-HE0-010

Unavailable

17

CAP, RESERVE TANK

19104-KE1-000

Unavailable

18

TUBE, OVERFLOW (NOT AVAILABLE)

19105-HE0-000

Unavailable

19

HOSE A, WATER

19115-HE0-000

Unavailable

20

HOSE B, WATER

19116-HE0-000

Unavailable

21

HOSE C, WATER

19117-HE0-000

Unavailable

22

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

23

GROMMET, BATTERY BREATHER TUBE

31504-MG8-300

Unavailable

24

SWITCH ASSY., THERMOSTAT (NOT AVAILABLE)

37760-HE0-671

Unavailable

26

SWITCH ASSY., THERMOSTAT

37770-HE0-671

Unavailable

27

CLIP (25)

50314-HE0-003

$8.34

28

CLIP (25F)

50315-HE0-003

$8.34

29

CLIP (10)

50316-HE0-003

Unavailable

30

CLIP (20MM)

50322-HE0-671

$4.28

31

CLIP (8.3MM)

50332-HE0-671

$3.59

32

GROMMET, FR. FENDER SETTING

66101-HA7-670

$3.24

33

NUT, FENDER SETTING

84601-HA7-670

$5.54

34

BOLT, FENDER STAY

90001-HC5-600

$6.62

35

NUT, HEX. (5MM) (MITSUBA)

90041-PG6-004

$5.26

36

BOLT, FLANGE (6MM)

90111-162-000

$2.89

37

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

38

WASHER, PLAIN (7MM) (MITSUBA)

90403-PA0-004

$6.07

39

COLLAR, BATTERY BOX This part replaces 90501-HA7-670.

90504-KPS-900

$2.94

40

O-RING (13.5X1.4)

91307-PH7-660

$2.83

40

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

41

O-RING (21.5X3.1)

91352-HA2-003

Unavailable

42

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

43

NUT, FLANGE (6MM)

94050-06000

$1.49

44

CLIP, TUBE (B10)

95002-02100

$1.90

45

CLIP, TUBE (B12)

95002-02120

$2.00

46

TUBE, VINYL (8X12X3000) (8X12X250)

95003-23003-10M

$14.69

47

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

48

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

49

BOLT, FLANGE (6X28)

96400-06028-00

Unavailable
