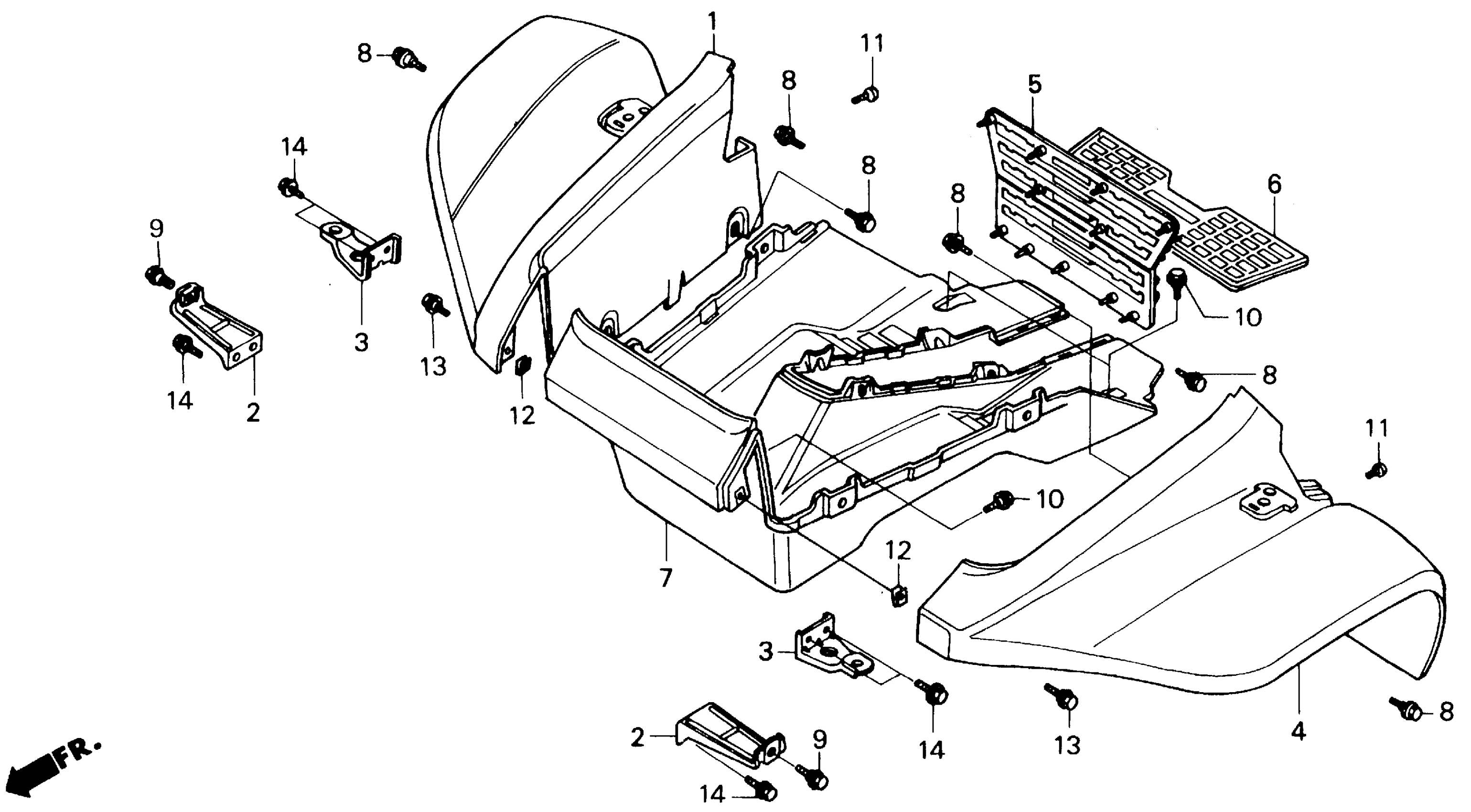

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 FRONT FENDER Diagram

FENDER, R. FR. *R110* (MONZA RED)

61100-HE0-010ZA

Unavailable

BRACKET, FR. FENDER

61103-HE0-000

Unavailable

BRACKET, HEADLIGHT

61104-HE0-670

Unavailable

FENDER, L. FR. *R110* (MONZA RED) This part replaces 61110-HE0-010ZA.

61110-HE0-515ZA

Unavailable

FENDER, L. FR. *R110* (MONZA RED) This part replaces 61110-HE0-505ZA.

61110-HE0-515ZA

Unavailable

FENDER, L. FR. *R110* (MONZA RED)

61110-HE0-515ZA

Unavailable

MAT, STEP (UPPER)

80131-HE0-000

Unavailable

MAT, STEP (LOWER)

80132-VM0-000

Unavailable

FLOOR, FR. *R110* (MONZA RED)

80200-HE0-010ZA

Unavailable

BOLT, FLANGE (6X20)

90104-GF6-000

$3.17

BOLT, FLANGE (6MM)

90112-MM9-000

Unavailable

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

SCREW, SPECIAL (6X10)

90190-MJ8-000

Unavailable

NUT, SPRING (5MM)

90320-HB9-000

$3.12

BOLT, FENDER SETTING (5X11.5)

91509-HC0-000

$3.89

BOLT, FLANGE (6X12)

96300-06012-07

$1.49

BOLT, FLANGE (6X12) This part replaces 96500-06012-07.

96300-06012-07

$1.49
