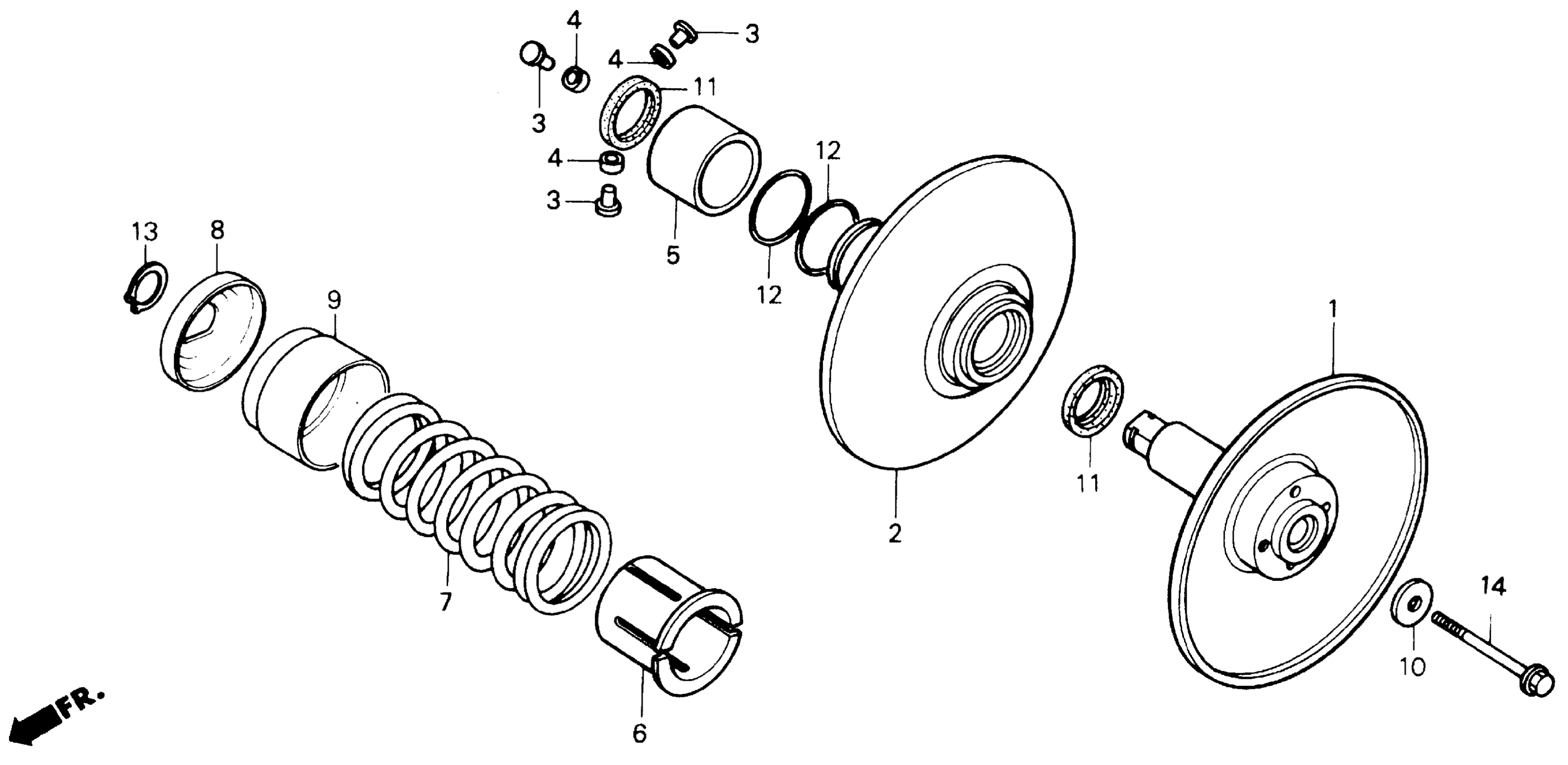

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 DRIVEN PULLEY Diagram

#

Description

Price

1

FACE, DRIVEN

22210-HE0-670

Unavailable

2

FACE, MOVABLE DRIVEN

22220-HE0-000

Unavailable

3

PIN, ROLLER GUIDE

22231-HE0-000

$5.13

4

ROLLER, GUIDE

22232-HE0-000

$7.51

5

COLLAR, SEAL

22233-HE0-000

Unavailable

6

COLLAR, SPRING GUIDE

22234-HE0-000

Unavailable

7

SPRING, DRIVEN FACE

22235-HE0-000

Unavailable

8

SEAT, DRIVEN SPRING

22236-HE0-000

Unavailable

9

COVER, DRIVEN SPRING

22237-HE0-000

Unavailable

10

WASHER (10MM)

90456-HE0-000

Unavailable

11

OIL SEAL (40X47X4) (ARAI)

91213-HE0-003

Unavailable

12

O-RING (47X1.9) (ARAI)

91352-KM1-005

$2.92

13

CIRCLIP (OUTER) (36MM)

94511-36175

Unavailable

14

BOLT, FLANGE (10X75)

95701-10075-00

$2.44
