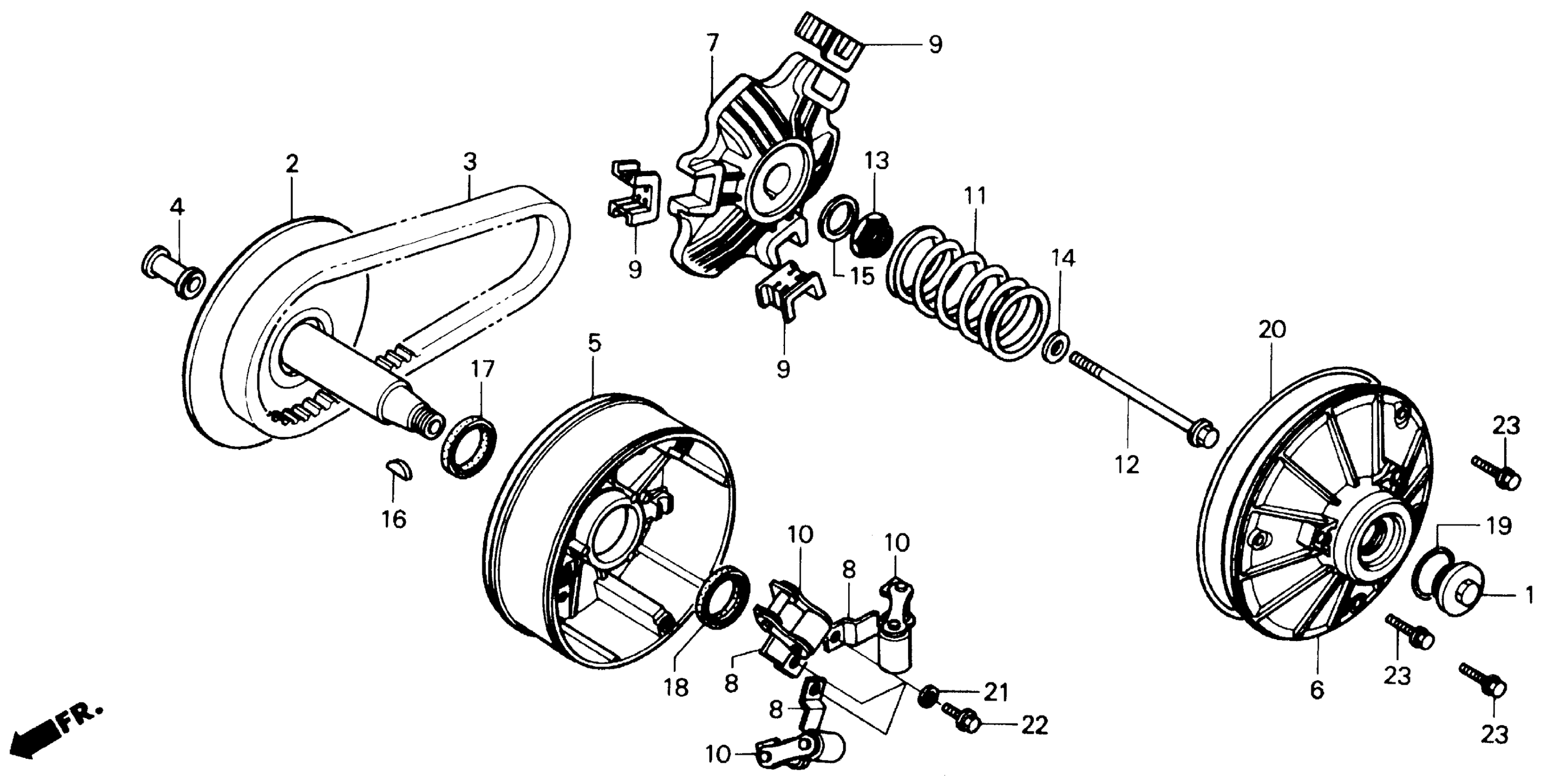

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 DRIVE PULLEY Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

FACE, DRIVE

22101-HE0-670

Unavailable

3

BELT, VARIABLE SPEED

22102-HE0-000

Unavailable

4

CASE, GREASE

22106-HE0-000

Unavailable

5

FACE, MOVABLE DRIVE

22111-HE0-000

Unavailable

6

COVER, MOVABLE DRIVE FACE

22115-HE0-000

Unavailable

7

PLATE, SPIDER (NOT AVAILABLE)

22121-HE0-670

Unavailable

8

PLATE, WEIGHT ARM HOLD

22124-HE0-000

Unavailable

9

PIECE, SLIDE

22127-HE0-000

Unavailable

10

ARM, WEIGHT

22130-HE0-000

Unavailable

11

SPRING, DRIVE FACE

22141-HE0-000

Unavailable

12

BOLT, FLANGE (12X142) This part replaces 90128-SG0-000.

90128-SG0-010

Unavailable

12

BOLT, FLANGE (12X142)

90128-SG0-010

Unavailable

13

NUT, LOCK (27MM)

90233-HE0-000

Unavailable

14

WASHER (12X25X4)

90438-HE0-000

Unavailable

15

WASHER, THRUST (27X41)

90462-HE0-000

Unavailable

16

KEY, SPECIAL (16X15)

90741-ZV4-000

$3.25

17

SEAL, DRIVE FACE (40X49X5) (ARAI)

91212-HE0-003

Unavailable

18

OIL SEAL (40X47X4) (ARAI)

91213-HE0-003

Unavailable

19

O-RING (30.8MM)

91302-001-020

$3.75

20

SEAL, DRIVE PULLEY COVER

91351-HE0-003

Unavailable

21

WASHER, SPRING (6MM)

94111-06000

$1.49

22

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

23

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
