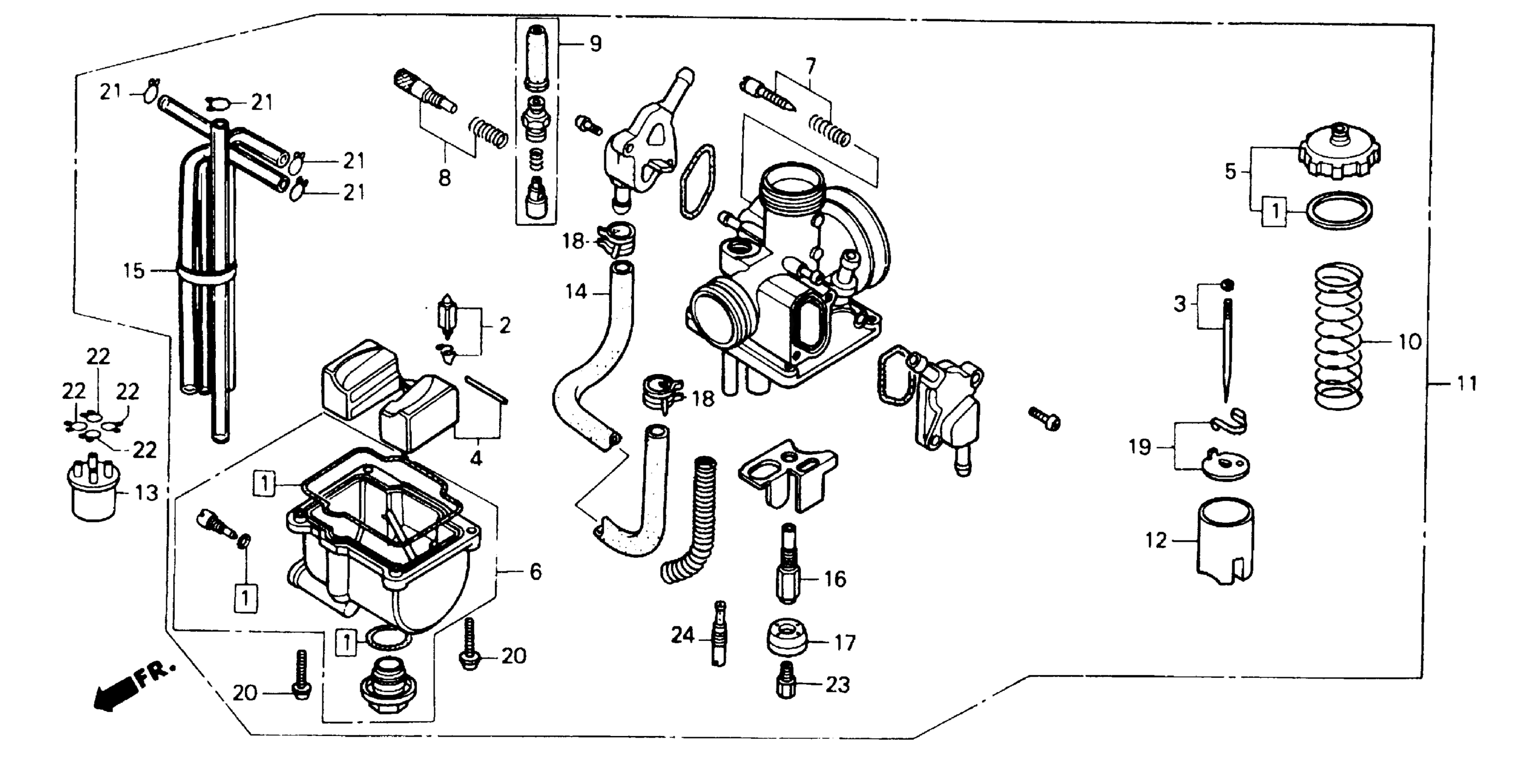

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-HE0-003.

16010-HE0-305

Unavailable

1

GASKET SET

16010-HE0-305

Unavailable

2

VALVE SET, FLOAT

16011-HE0-003

Unavailable

3

NEEDLE SET, JET

16012-HE0-003

Unavailable

4

FLOAT SET

16013-HA2-671

$50.15

5

TOP SET

16014-VM0-661

Unavailable

6

CHAMBER SET, FLOAT

16015-HE0-670

Unavailable

7

SCREW SET, A

16016-GB4-003

$23.02

8

SCREW SET B

16028-HE0-003

Unavailable

9

VALVE SET, STARTER

16046-HE0-670

Unavailable

10

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-VM0-004

Unavailable

11

CARBURETOR ASSY. (PE34B A)

16100-HE0-670

Unavailable

12

VALVE, THROTTLE

16111-HE0-003

Unavailable

13

JOINT, CARBURETOR TUBE

16121-HE0-670

Unavailable

14

TUBE

16143-HE0-003

Unavailable

15

TUBE

16199-HE0-670

Unavailable

16

NEEDLE, JET (NOT AVAILABLE)

16164-HE0-670

Unavailable

17

HOLDER, JET

16168-KA5-004

Unavailable

18

CLIP, TUBE

16199-HE0-003

Unavailable

19

PLATE SET (NOT AVAILABLE)

16212-KA3-004

Unavailable

20

SCREW, PAN (4X16)

93500-04016-0H

$1.49

20

SCREW, PAN (4X16) This part replaces 93500-04016-08.

93500-04016-0H

$1.49

20

SCREW, PAN (4X16) This part replaces 93500-04016-1H.

93500-04016-0H

$1.49

21

CLIP, TUBE (B7)

95002-02070

$1.80

22

CLIP, TUBE (B7)

95002-02070

$1.80

23

JET, MAIN (#140) JET, MAIN (#135) | (Optional).

99101-357-1400

$8.55

23

JET, MAIN (#135) JET, MAIN (#138) | (Optional).

99101-357-1350

$9.07

23

JET, MAIN (#138)

99101-357-1380

$9.26

24

JET, SLOW (#52)

99103-4400520

$13.15
