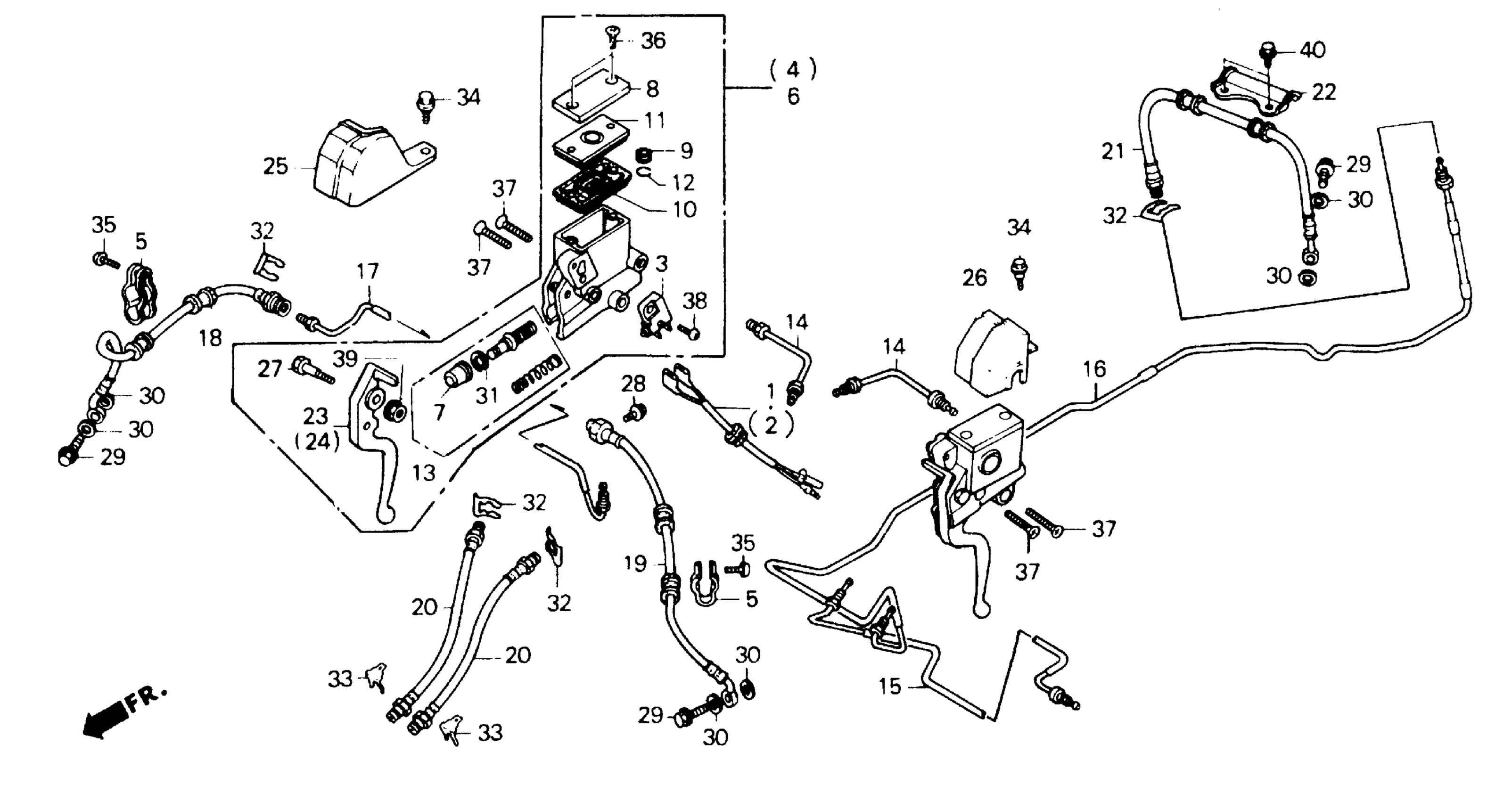

Honda FL400RA (90) PILOT, JPN, VIN# JH3TE160-LK100001 BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SUB-WIRE, R. STOP SWITCH

32101-HE0-000

Unavailable

2

SUB-CABLE, L. STOP SWITCH

32102-HE0-000

Unavailable

3

SWITCH ASSY., FR. STOP

35340-HE0-000

Unavailable

4

MASTER CYLINDER ASSY., RR. (NISSIN)

43500-HE0-006

Unavailable

5

CLIP, FR. BRAKE MIDDLE

45464-HE0-670

Unavailable

6

MASTER CYLINDER ASSY., FR. (NISSIN)

45500-HE0-006

Unavailable

7

BOOT

45504-410-003

$12.16

8

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

9

SEPARATOR

45518-KA3-731

$12.17

10

DIAPHRAGM

45520-MG7-006

$10.61

11

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

12

RING

45523-KA3-731

$2.92

13

MASTER CYLINDER SET

45530-HA8-771

$40.36

14

PIPE A, BRAKE

46310-HE0-000

Unavailable

15

PIPE B, BRAKE

46320-HE0-000

Unavailable

16

PIPE, RR. BRAKE

46325-HE0-000

Unavailable

17

PIPE C, BRAKE

46330-HE0-000

Unavailable

18

HOSE, R. FR. BRAKE (NOT AVAILABLE)

46410-HE0-671

Unavailable

19

HOSE, L. FR. BRAKE (NOT AVAILABLE)

46415-HE0-671

Unavailable

20

HOSE, BRAKE PIPE JOINT

46420-HE0-671

Unavailable

21

HOSE, RR. BRAKE

46430-HE0-671

Unavailable

22

HOLDER, RR. BRAKE HOSE

46440-HE0-000

Unavailable

23

LEVER, R. HANDLEBAR

53175-HE0-000

Unavailable

24

LEVER, L. HANDLEBAR

53178-HE0-000

Unavailable

25

GUARD, R. MASTER CYLINDER

53180-HE0-000

Unavailable

26

GUARD, L. MASTER CYLINDER

53185-HE0-000

Unavailable

27

BOLT, HANDLEBAR PIVOT

90113-KF0-770

$5.73

28

BOLT, FLANGE (6X8)

90126-MN5-000

$2.56

29

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

29

BOLT, OIL (10X22)

90145-MS9-612

$7.54

30

WASHER, OIL BOLT

90545-300-000

$3.99

31

CIRCLIP

90651-MA5-671

$2.66

32

CLIP, BRAKE HOSE

90651-538-000

$6.77

33

CLIP, BRAKE HOSE

90653-HE0-000

Unavailable

34

BOLT, FENDER SETTING (5X11.5)

91509-HC0-000

$3.89

35

SCREW, PAN (5X16)

93500-05016-0A

$1.49

36

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

36

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

37

SCREW, OVAL (6X40)

93700-06040-0G

$1.49

37

SCREW, OVAL (6X40) This part replaces 93700-06040-07.

93700-06040-0G

$1.49

38

SCREW-WASHER (4X20)

93893-04020-08

$1.49

39

NUT, FLANGE (6MM)

94050-06000

$1.49

40

BOLT, FLANGE (6X10)

96300-06010-00

$1.49
