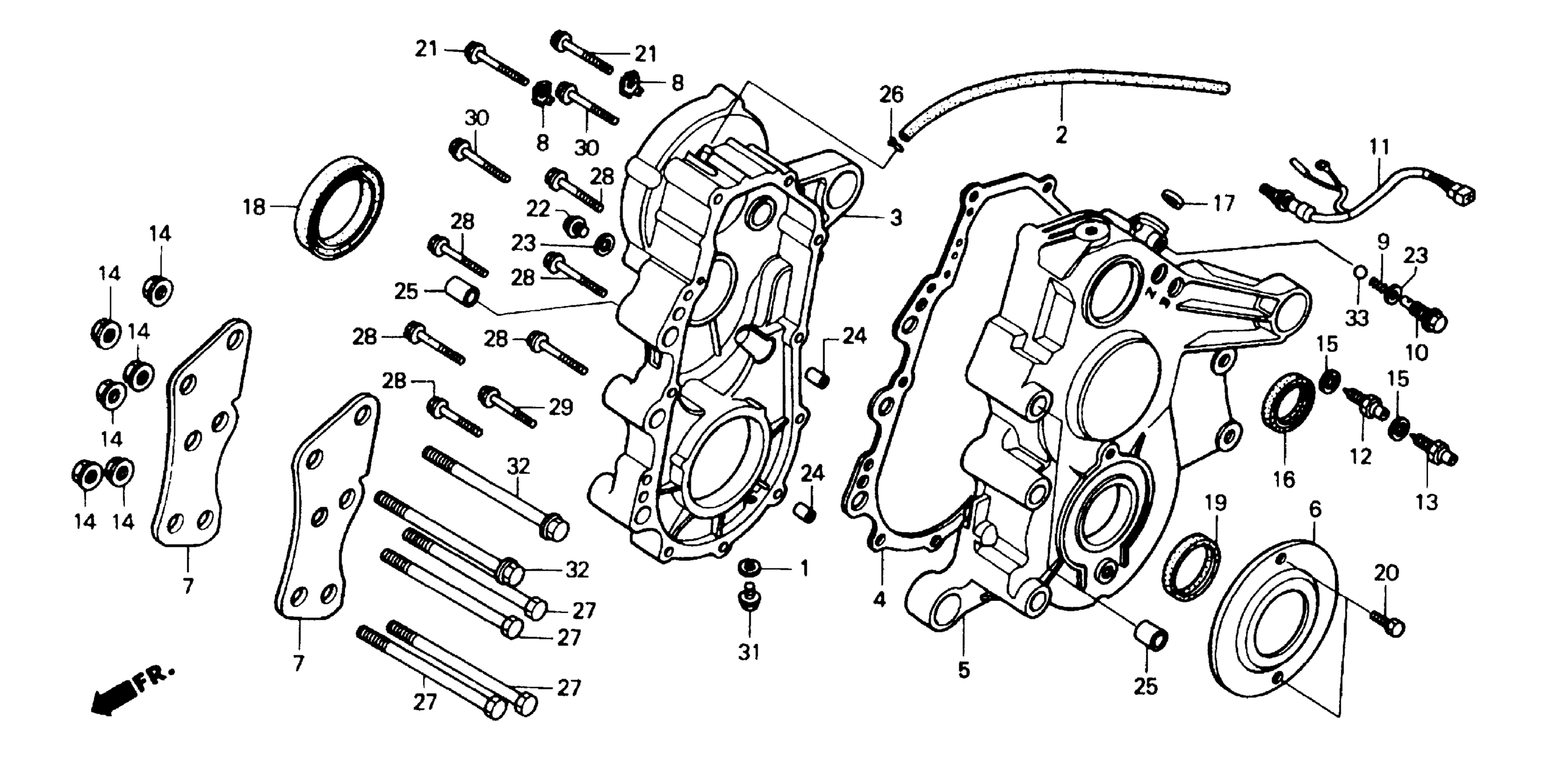

Honda FL400RA (89) PILOT, JPN, VIN# JH3TE160-KK000044 TO JH3TE160-KK004102 REDUCTION CASE Diagram

#

Description
Price

1

WASHER, SEALING

14554-KK6-003

Unavailable

2

TUBE, BREATHER

17103-HE0-000

Unavailable

3

CASE, R. REDUCTION This part replaces 21100-HE0-000.

21100-HE0-670

Unavailable

3

CASE, R. REDUCTION

21100-HE0-670

Unavailable

4

GASKET, REDUCTION CASE

21195-HE0-P00

Unavailable

4

GASKET, REDUCTION CASE This part replaces 21195-HE0-000.

21195-HE0-P00

Unavailable

4

GASKET, REDUCTION CASE This part replaces 21195-HE0-010.

21195-HE0-P00

Unavailable

5

CASE, L. REDUCTION This part replaces 21201-HE0-000.

21201-HE0-670

Unavailable

5

CASE, L. REDUCTION

21201-HE0-670

Unavailable

6

PROTECTOR, SEAL

21281-HE0-000

Unavailable

7

PLATE, ENGINE JOINT

21301-HE0-000

Unavailable

8

PLATE, LOCK

22126-HE0-000

Unavailable

9

SPRING, BALL SET

24517-HE0-000

Unavailable

10

SCREW, BALL SPRING SETTING

24519-PB6-000

$9.89

11

SWITCH ASSY., PARKING This part replaces 35370-HE0-000.

35370-HE0-670

Unavailable

11

SWITCH ASSY., PARKING

35370-HE0-670

Unavailable

12

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

13

SWITCH, REVERSE (TOYO)

35600-HC0-003

Unavailable

14

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

15

WASHER, OIL BOLT

90545-300-000

$3.99

16

OIL SEAL (32X48X8) (ARAI)

91202-HE0-003

$11.98

17

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

18

OIL SEAL (35X57X9)

91223-VM0-004

Unavailable

19

OIL SEAL (45X58X7)

91251-001-023

Unavailable

19

OIL SEAL (45X58X7) This part replaces 91254-HE0-003.

91251-001-023

Unavailable

20

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

21

BOLT, HEX. (6X60)

92101-06060-0A

$1.49

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

24

PIN A, DOWEL (8X14)

94301-08140

$2.25

25

PIN A, DOWEL (14X20)

94301-14200

$2.28

26

CLIP, TUBE (C9)

95002-50000

$1.49

27

BOLT, HEX. (12X140)

95301-12140-00

Unavailable

28

BOLT, FLANGE (6X38)

95701-06038-00

$1.89

29

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

29

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

30

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

31

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

32

BOLT, FLANGE (12X140)

95701-12140-00

Unavailable

33

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
