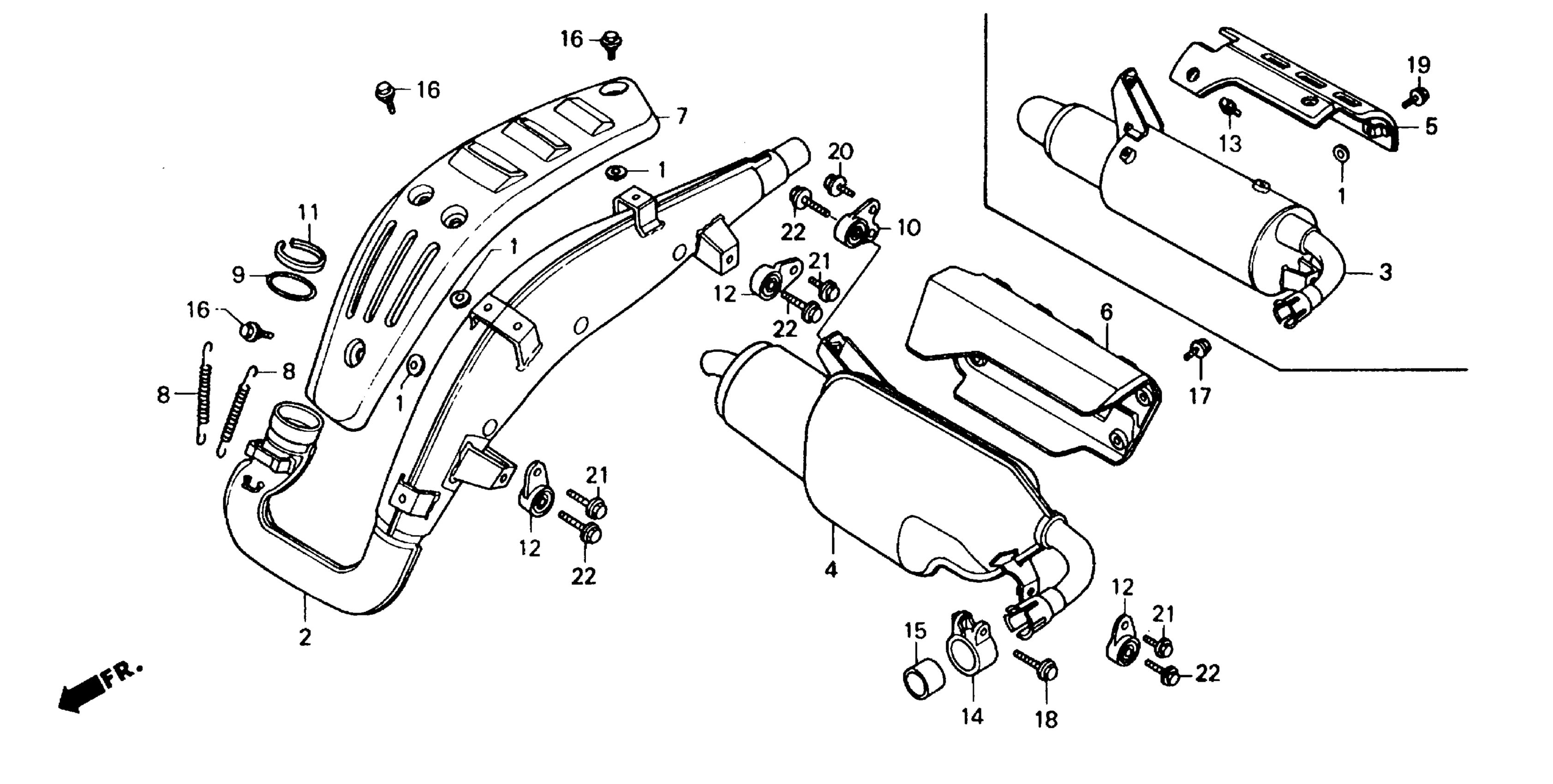

Honda FL400RA (89) PILOT, JPN, VIN# JH3TE160-KK000044 TO JH3TE160-KK004102 MUFFLER Diagram

#

Description
Price

1

GASKET, PROTECTOR

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

2

MUFFLER, MAIN

18300-HE0-000

Unavailable

3

MUFFLER, SUB (NOT AVAILABLE)

18310-HE0-000

Unavailable

5

PROTECTOR, SUB-MUFFLER (NOT AVAILABLE)

18315-HE0-000

Unavailable

7

PROTECTOR, MAIN MUFFLER

18319-HE0-000

Unavailable

8

SPRING, EX. PIPE

18332-430-700

$13.02

9

GASKET, EX. PIPE This part replaces 18352-HA2-000.

18352-HA2-010

$7.48

9

GASKET, EX. PIPE

18352-HA2-010

$7.48

10

STAY ASSY., MUFFLER (NOT AVAILABLE)

18352-VM0-770

Unavailable

11

RING, EX.

18358-HA2-000

$14.73

12

STAY, CHAMBER SETTING (NOT AVAILABLE)

18359-VM0-770

Unavailable

13

GROMMET, MUFFLER PROTECTOR (A)

18366-GW8-670

$4.23

14

BAND, L. EX. PIPE

18374-MN1-670

$14.42

15

GASKET, MUFFLER

18391-MB0-891

$17.92

16

BOLT, FLANGE (6MM)

90108-HE0-000

Unavailable

18

BOLT, FLANGE (8X37)

90118-471-000

$3.19

19

BOLT, FLANGE (6X8)

96001-06008-02

$1.54

20

BOLT, FLANGE (6X12)

96300-06012-07

$1.49

20

BOLT, FLANGE (6X12) This part replaces 96500-06012-07.

96300-06012-07

$1.49

21

BOLT, FLANGE (8X16)

96300-08016-07

$1.49

21

BOLT, FLANGE (8X16) This part replaces 96500-08016-07.

96300-08016-07

$1.49

22

BOLT, FLANGE (8X28)

96300-08028-07

$2.13

22

BOLT, FLANGE (8X28) This part replaces 96500-08028-07.

96300-08028-07

$2.13
