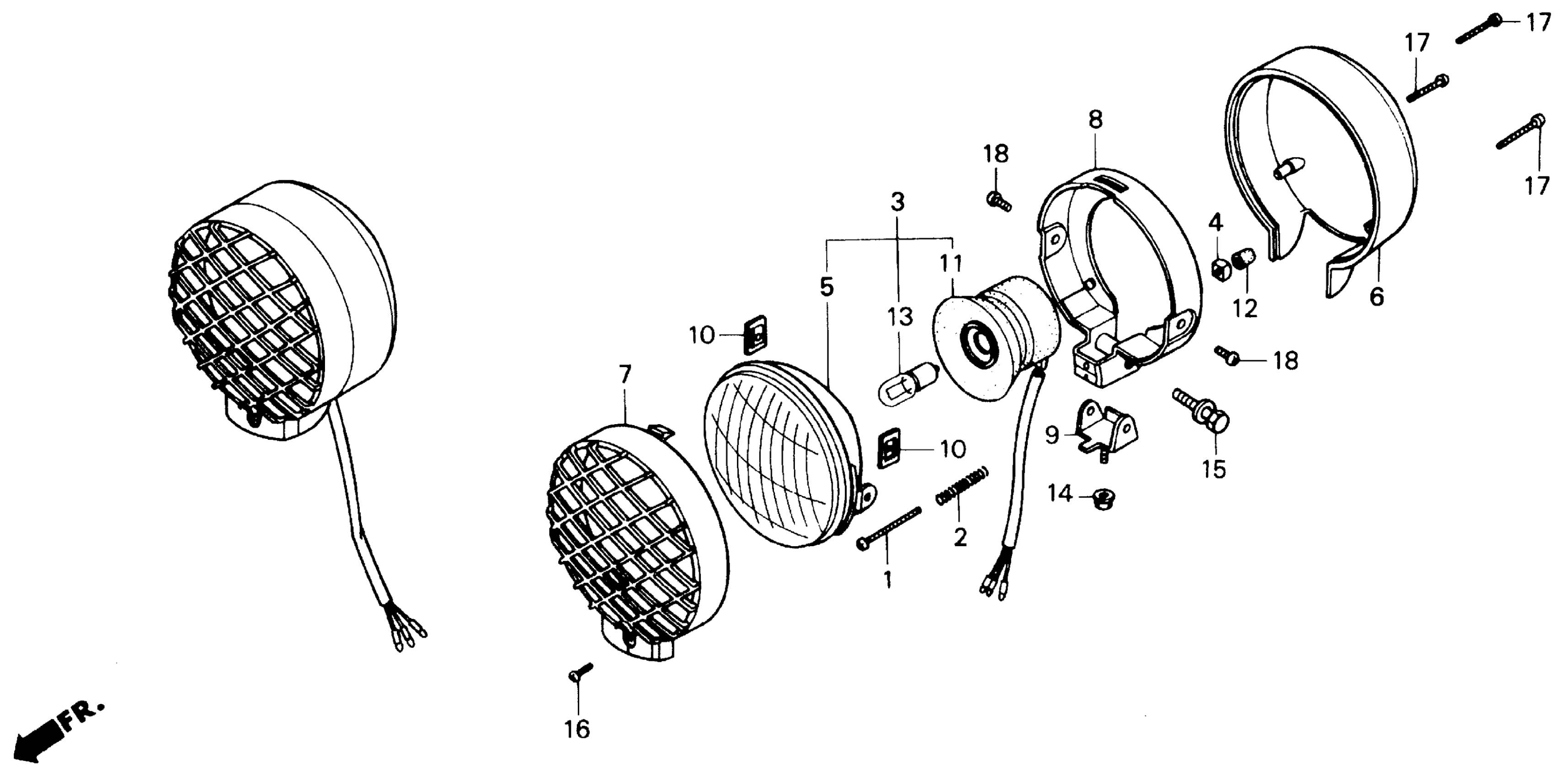

Honda FL400RA (89) PILOT, JPN, VIN# JH3TE160-KK000044 TO JH3TE160-KK004102 HEADLIGHT Diagram

SCREW, BEAM ADJUSTING

33103-HE0-003

Unavailable

SPRING, BEAM ADJUSTING

33107-KJ9-003

Unavailable

HEADLIGHT UNIT (12V 25/25W) | Use up to Frame SN KK002238

33110-HE0-000

Unavailable

HEADLIGHT UNIT (12V 25W/25W) | Use from Frame SN KK002239

33110-HE0-003

Unavailable

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

HEADLIGHT UNIT

33120-HE0-000

Unavailable

CASE, HEADLIGHT This part replaces 33121-HE0-003.

33121-HE0-013

Unavailable

CASE, HEADLIGHT

33121-HE0-013

Unavailable

GRILLE, HEADLIGHT

33122-HE0-003

Unavailable

BRACKET A

33123-HE0-003

Unavailable

BRACKET B

33124-HE0-003

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

SOCKET ASSY., HEADLIGHT

33130-HE0-000

Unavailable

COVER, SCREW

33136-426-830

$1.89

BULB (12V25/25W) (STANLEY) This part replaces 34901-066-003.

34901-706-000

$5.08

BULB (12V25/25W) (STANLEY)

34901-706-000

$5.08

NUT, FLANGE (8MM)

90309-428-731

$3.35

BOLT-WASHER (8X35)

93402-08035-07

Unavailable

SCREW, PAN (4X12)

93500-04012-0G

$1.49

SCREW, PAN (4X25)

93500-04025-0G

$1.49

SCREW, PAN (5X8)

93500-05008-0A

$1.49
