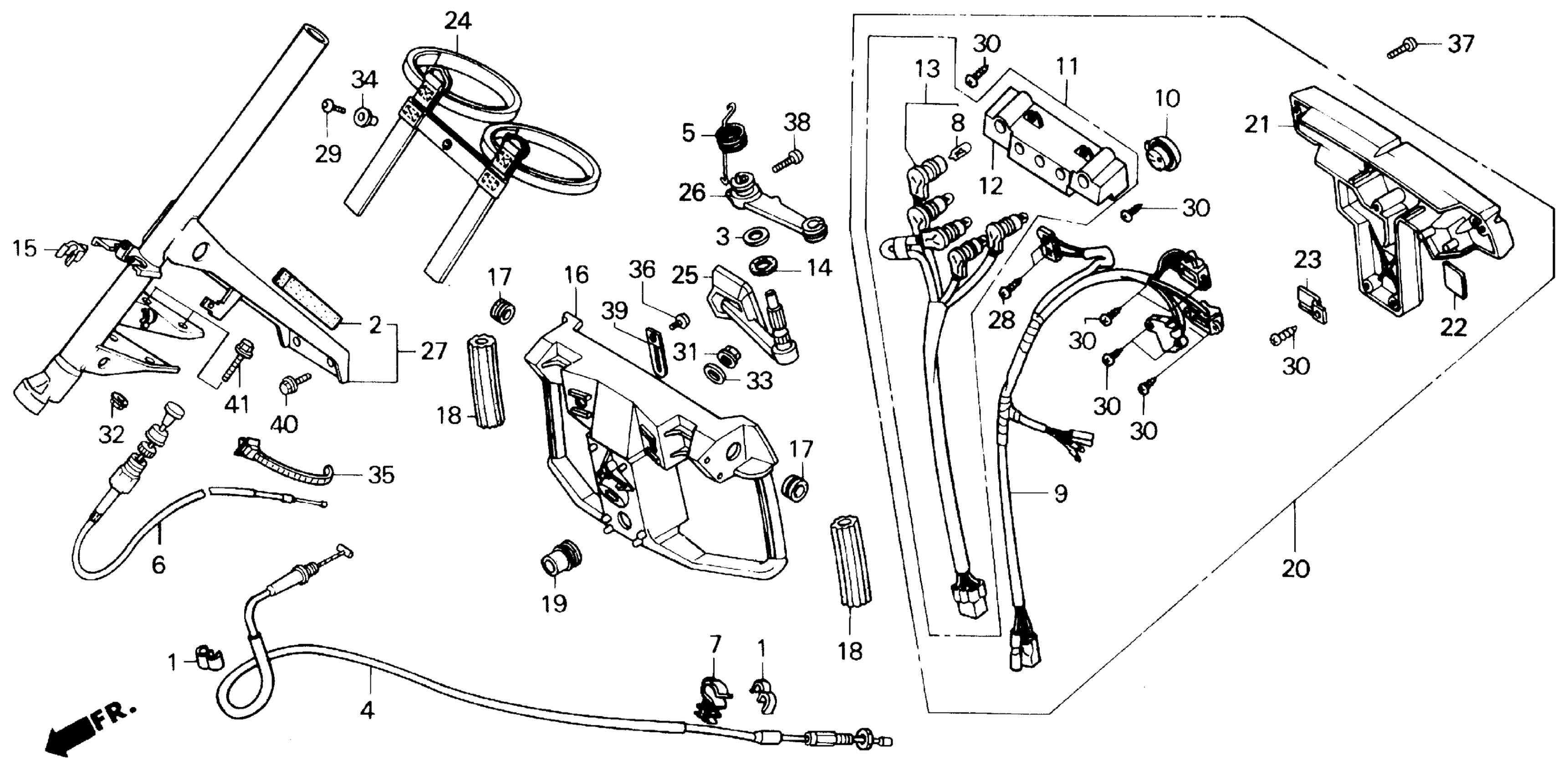

Honda FL400RA (89) PILOT, JPN, VIN# JH3TE160-KK000044 TO JH3TE160-KK004102 HANDLEBAR Diagram

#

Description
Price

1

CLAMP, TUBE (7.5X2)

17205-PC6-000

$8.64

2

RUBBER, TANK SPACER

17511-HB3-300

Unavailable

3

WASHER, ACCELERATOR PEDAL

17812-SA7-010

$3.30

3

WASHER, ACCELERATOR PEDAL This part replaces 17812-634-670.

17812-SA7-010

$3.30

4

CABLE, THROTTLE

17910-HE0-000

Unavailable

5

SPRING, THROTTLE RETURN

17918-HE0-000

Unavailable

6

CABLE, CHOKE

17950-HE0-000

Unavailable

7

CLAMP, IGNITION CABLE

30505-VM0-003

Unavailable

8

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

8

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

8

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

8

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

9

SWITCH ASSY., HANDLE

35210-HE0-003

Unavailable

10

SWITCH ASSY., ENGINE STOP

35300-HE0-003

Unavailable

11

BOX ASSY., PILOT This part replaces 37600-HE0-008.

37600-HE0-671

Unavailable

11

BOX ASSY., PILOT

37600-HE0-671

Unavailable

12

CASE, PILOT (LOWER)

37611-HE0-008

Unavailable

13

SOCKET This part replaces 37619-HE0-008.

37619-HE0-671

Unavailable

13

SOCKET

37619-HE0-671

Unavailable

14

SEAL, BRAKE CAM

45134-165-890

$1.57

15

CLIP C, BRAKE PIPE

50304-HE0-003

$3.39

16

HANDLEBAR

53110-HE0-000

Unavailable

17

GROMMET B, STEERING

53111-HE0-000

$4.25

18

GRIP, STEERING WHEEL

53115-VM0-000

Unavailable

19

GROMMET, STEERING

53116-HE0-000

Unavailable

20

COVER ASSY., HANDLEBAR (NOT AVAILABLE) This part replaces 53120-HE0-003.

53120-HE0-670

Unavailable

21

COVER, HANDLEBAR

53121-HE0-003

Unavailable

22

EMBLEM

53124-HE0-000

Unavailable

23

CLAMP, WIRE

53125-HE0-003

Unavailable

24

LOOP, ARM RESTRAINTS FIXING *PB137* (NAPIER BLUE) This part replaces 53130-HE0-003ZA.

53130-HE0-505ZA

Unavailable

24

LOOP, ARM RESTRAINTS FIXING *PB137* (NAPIER BLUE)

53130-HE0-505ZA

Unavailable

25

LEVER, THROTTLE

53140-VM0-770

Unavailable

26

ARM, THROTTLE

53143-VM0-770

Unavailable

27

COLUMN, STEERING

53210-HE0-000

Unavailable

28

BOLT (3X8)

90100-HE0-003

Unavailable

29

SCREW, PAN (6X14)

90118-MR1-000

$3.10

30

SCREW, TAPPING (4X8)

90150-HE0-003

Unavailable

31

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

32

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

32

NUT, FLANGE (8MM)

90309-428-731

$3.35

33

WASHER, TRAILING (12MM)

90438-SE0-000

$6.36

34

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

35

BAND (100MM) (BLACK)

90676-692-000

$6.64

36

SCREW, PAN (4X8)

93500-04008-0H

$1.49

37

SCREW, PAN (4X12)

93500-04012-0G

$1.49

38

SCREW, PAN (5X18)

93500-05018-0A

$1.49

39

CLIP (2X40)

94591-24000

$2.16

40

BOLT, FLANGE (8X16)

96300-08016-00

$1.49

40

BOLT, FLANGE (8X16) This part replaces 96400-08016-00.

96300-08016-00

$1.49

40

BOLT, FLANGE (8X16) This part replaces 96500-08016-00.

96300-08016-00

$1.49

41

BOLT, FLANGE (8X65)

96300-08065-00

$2.39

41

BOLT, FLANGE (8X65) This part replaces 96500-08065-00.

96300-08065-00

$2.39
